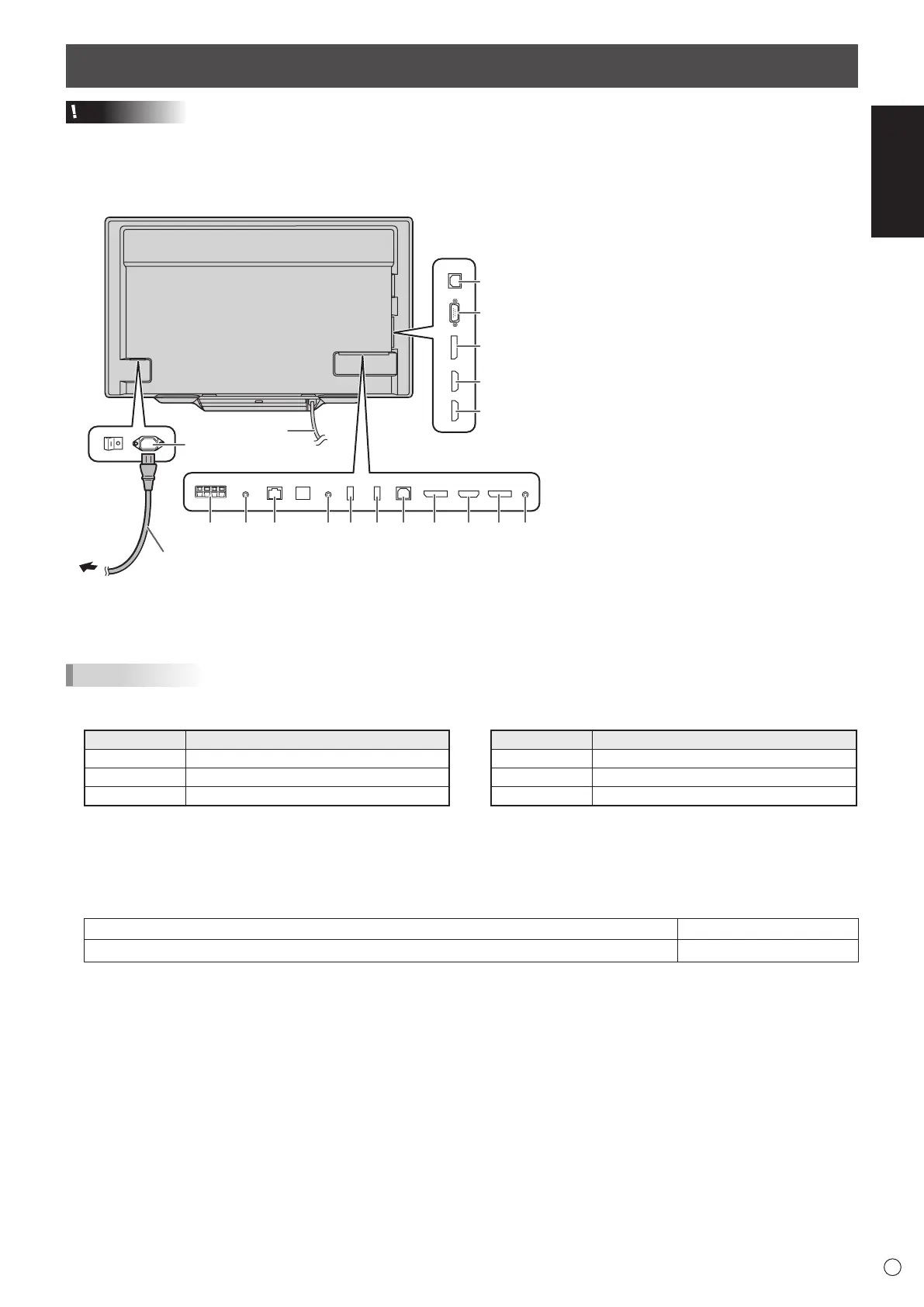

Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
TIPS
• Set the audio input terminal to be used in each input mode in AUDIO SELECT on the SETUP menu. The factory settings are
shown below.
34 9101165 127 82
13
14
15
16
17
18
For power outlet
1
Power cord (Supplied)
1. AC input terminal
2. External speaker terminals
3. Audio output terminal
4. LAN terminal
5. RS-232C input terminal
6. Touch pen adapter port
7. USB port
8. USB 1 port (for touch panel)
9. DisplayPort output terminal
10. HDMI 1 input terminal
11. DisplayPort 1 input terminal
12. Audio input terminal
13. USB 2 port (for touch panel)
14. D-sub input terminal
15. DisplayPort 2 input terminal
16. HDMI 2 input terminal
17. HDMI 3 input terminal
18. USB cable
To use the USB port (for USB device)
(USB 2.0 compliant) on the front of
the tray, connect the USB cable to the
USB port on the computer. (The touch
panel must be connected separately.)
Input mode Audio input terminal (Factory setting)
HDMI1 HDMI 1 input terminal
HDMI2 HDMI 2 input terminal
HDMI3 HDMI 3 input terminal
Input mode Audio input terminal (Factory setting)
DisplayPort1 DisplayPort 1 input terminal
DisplayPort2 DisplayPort 2 input terminal
D-SUB Audio input terminal
•
To use the touch panel, the touch panel and computer must be connected, and Touch pen Management Tool, and Pen
Software must be installed on the computer from the supplied CD-ROM.
When the Information Display Downloader is installed, you can check and download the most recent versions of the software
programs.
To install the software, see the manual for each.
• The USB port varies depending on the terminal connected to the computer.
DisplayPort 1 input terminal/HDMI 1 input terminal USB 1 port (for touch panel)
D-sub input terminal/DisplayPort 2 input terminal/HDMI 2 input terminal/HDMI 3 input terminal USB 2 port (for touch panel)
(Factory setting. Can be changed in TOUCH INPUT SELECT in the SETUP menu.)
• SHARP Display Connect setup program and Touch Viewing Software setup program can be downloaded using Information
Display Downloader.
• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc. in the United States and other countries.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
• VESA is either registered trademark or trademark of Video Electronics Standards Association in the United States and/ or
other countries.
• All other brand and product names are trademarks or registered trademarks of their respective holders.
