Basic Operation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

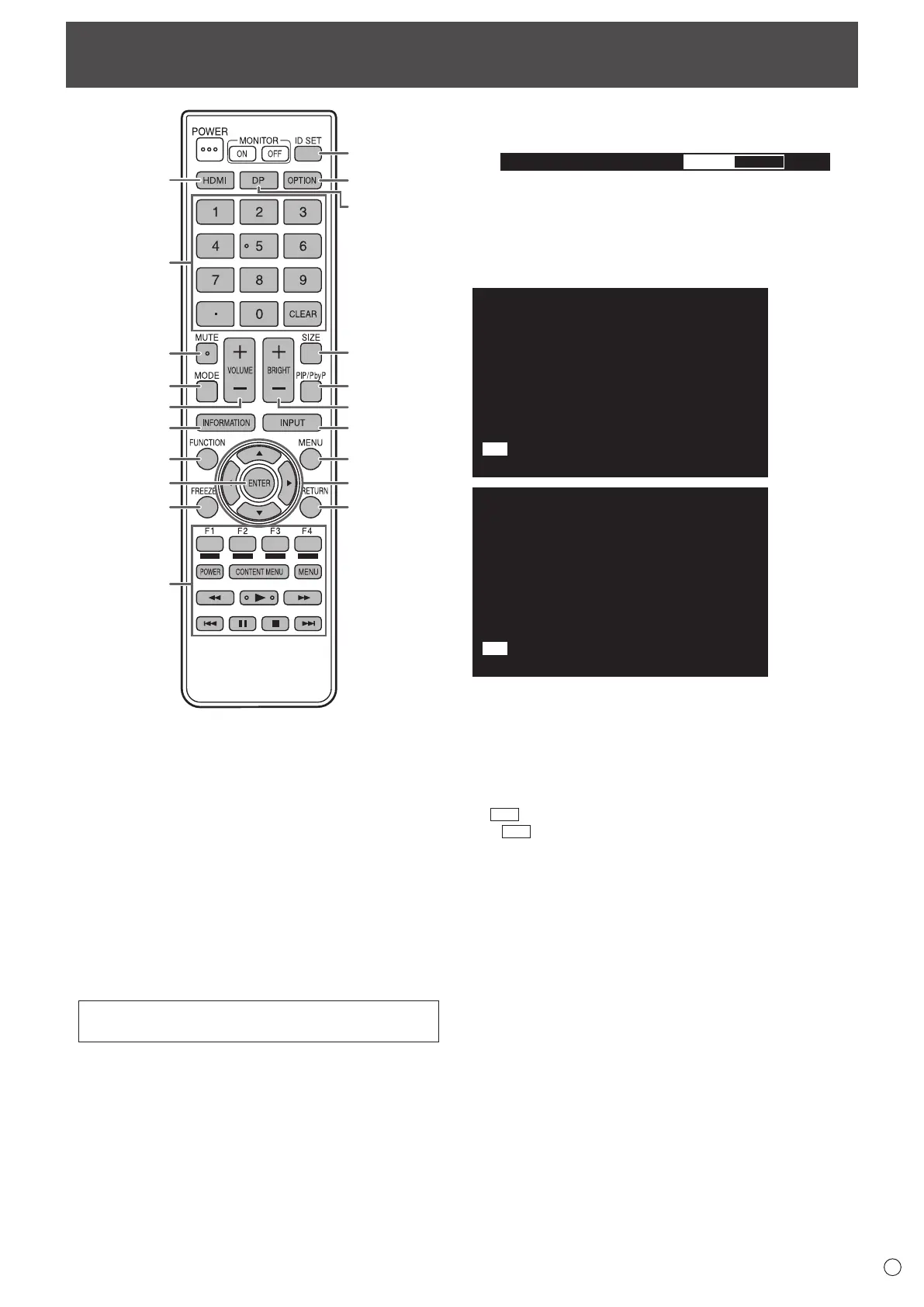

1. HDMI
Switch the input mode to HDMI1 or HDMI2.
2. Numeric input buttons
When HDMI CEC LINK is set to AUTO, use these buttons to
operate the device connected through the HDMI interface.
0 to 9 are also used in conjunction with the ID SET button.
3. MUTE
Turns off the volume temporarily.
Press the MUTE button again to turn the sound back to the
previous level.
4. MODE (Color mode selection)
Each time you press this button, the color mode changes in
the following order:
STD (Standard) → VIVID → sRGB →
HIGH ILLUMINANCE → STD...
• HIGH ILLUMINANCE is a display with colors suited to
bright locations.
• sRGB cannot be used when input mode is
D-SUB[COMPONENT].
sRGB is international standard of color representation
specied by IEC (International Electrotechnical
Commission). Color conversion is made in taking account
of liquid crystal’s characteristics and represents color tone
close to its original image.
5. VOLUME +/- (Volume adjustment)
Pressing + or - displays the VOLUME menu.
V OLUME 15
Press + or - to adjust the volume of the sound.
* If you do not press any buttons for about 4 seconds, the
VOLUME menu automatically disappears.
6. INFORMATION
Displays monitor information.
INPUT MODE
SIZE
COLOR MODE
BRIGHT
VOLUME
ID No.
REMOTE No.
MODEL
VERSION
S/N
STATUS
:
:
:
:
:
:
:
:
:
:
:
INFORMATION1
1920x1080
V: 60 Hz H: 67.5 kHz
D-SUB[RGB]
WIDE
STD
31
15
0
0
PN-R706
×.×.××.×
0000-000000-00-0000
01/01/2017 SUN 00:00:00
END:[RETURN]
LAN
RS-232C/LAN SELECT
DHCP CLIENT
IP ADDRESS
SUBNET MASK
DEFAULT GATEWAY
MONITOR NAME
DATA PORT
MAC ADDRESS
:
:
:
:
:
:
:
:
INFORMATION2
1920x1080
V: 60 Hz H: 67.5 kHz
LAN
OFF
192.168.150. 2
255.255.255. 0
0. 0. 0. 0
PN-R706
10008
XX-XX-XX-XX-XX-XX
01/01/2017 SUN 00:00:00
END:[RETURN]
LAN
The display changes from INFORMATION1 →
INFORMATION2 → INFORMATION3 → clear display, and so
on every time you press this button.
• INFORMATION3 shows the information when you have
used the expansion slot to expand the functions.
• The display disappears automatically after about 15
seconds.
•
LAN
is displayed during LAN communication.
• If
LAN
is displayed in red, there is a duplicate IP address.
7. FUNCTION
Use this to display the FUNCTION menu. (See page 34.)
8. ENTER
Conrms the setting.
9. FREEZE
This is not used with this monitor.
10. Buttons for operating the HDMI-connected device
When HDMI CEC LINK is set to AUTO, use these buttons to
operate the device connected through the HDMI interface.
11. ID SET
Set a number on the remote control. (See page 33.)
