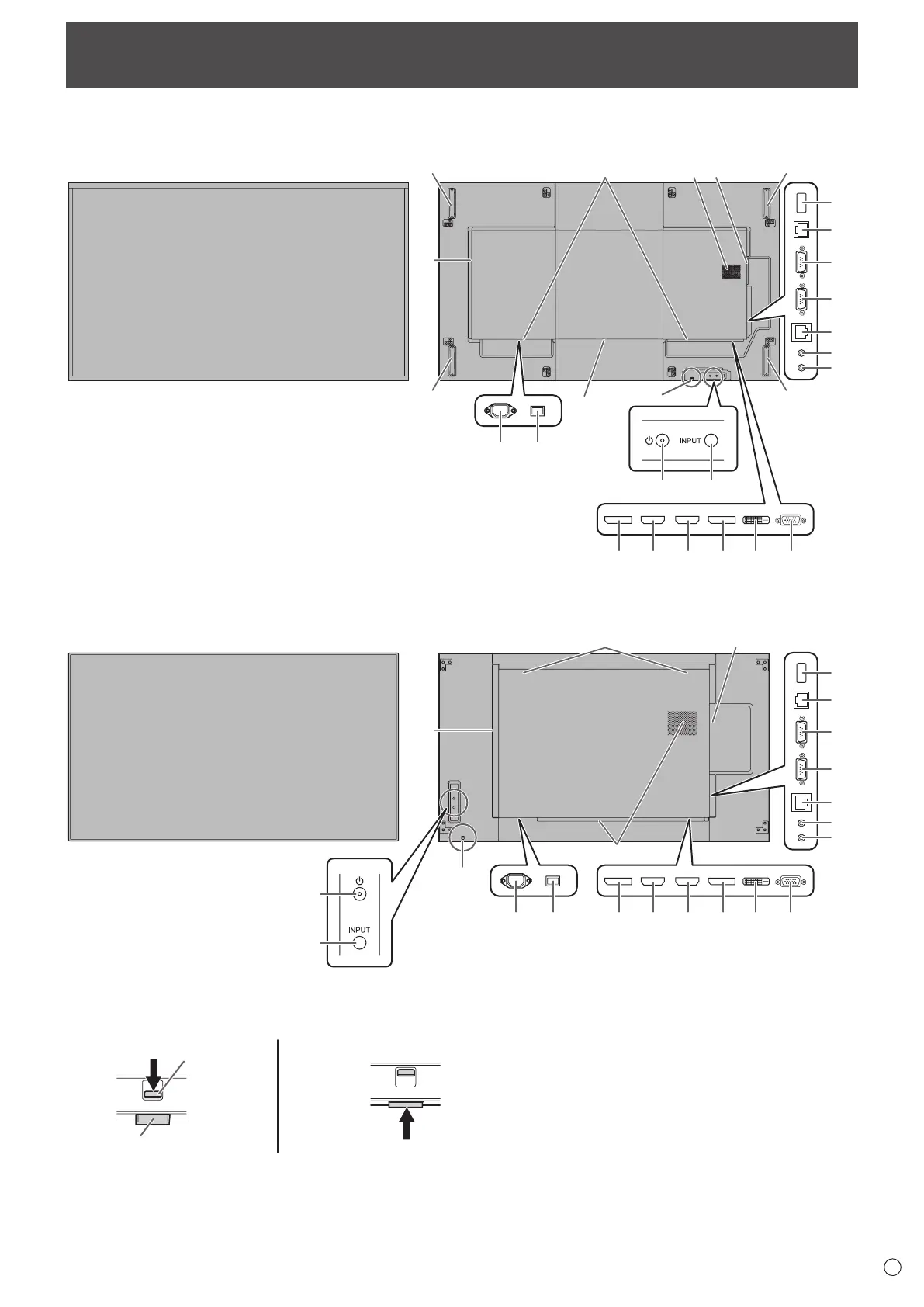

It is possible to mount an IoT sensor hub in the following position.
IoT sensor hub
mounting bracket
1
*
2
Micro USB cable
1. Attach the supplied IoT sensor hub mounting brackets
(L/R) to the IoT sensor hub with the supplied IoT
sensor hub screws (M3) (x2).
2. Fix the IoT sensor hub mounting brackets (L/R) to this
monitor with supplied knurled screws (M3) (x2).
* The IoT sensor hub mounting brackets fit into the recess
of this monitor.
It is possible to mount a camera in the following position.
3.5 mm mini jack to
USB A cable (supplied)
USB A to B cable
(supplied)
S/PDIF cable (supplied)
1. Attach the supplied camera with the supplied knurled
screws (M3) (x2).
The camera can be tilted downward.
TIPS
• The cable clamp (supplied) can be used to clamp the 3.5
mm mini jack to USB A cable (supplied).
• Attach the supplied cable clamp to a flat surface. Do not
attach over a vent.
• Remove any dust or dirt before attaching.
Mounting an IoT sensor hub
Mounting a camera
