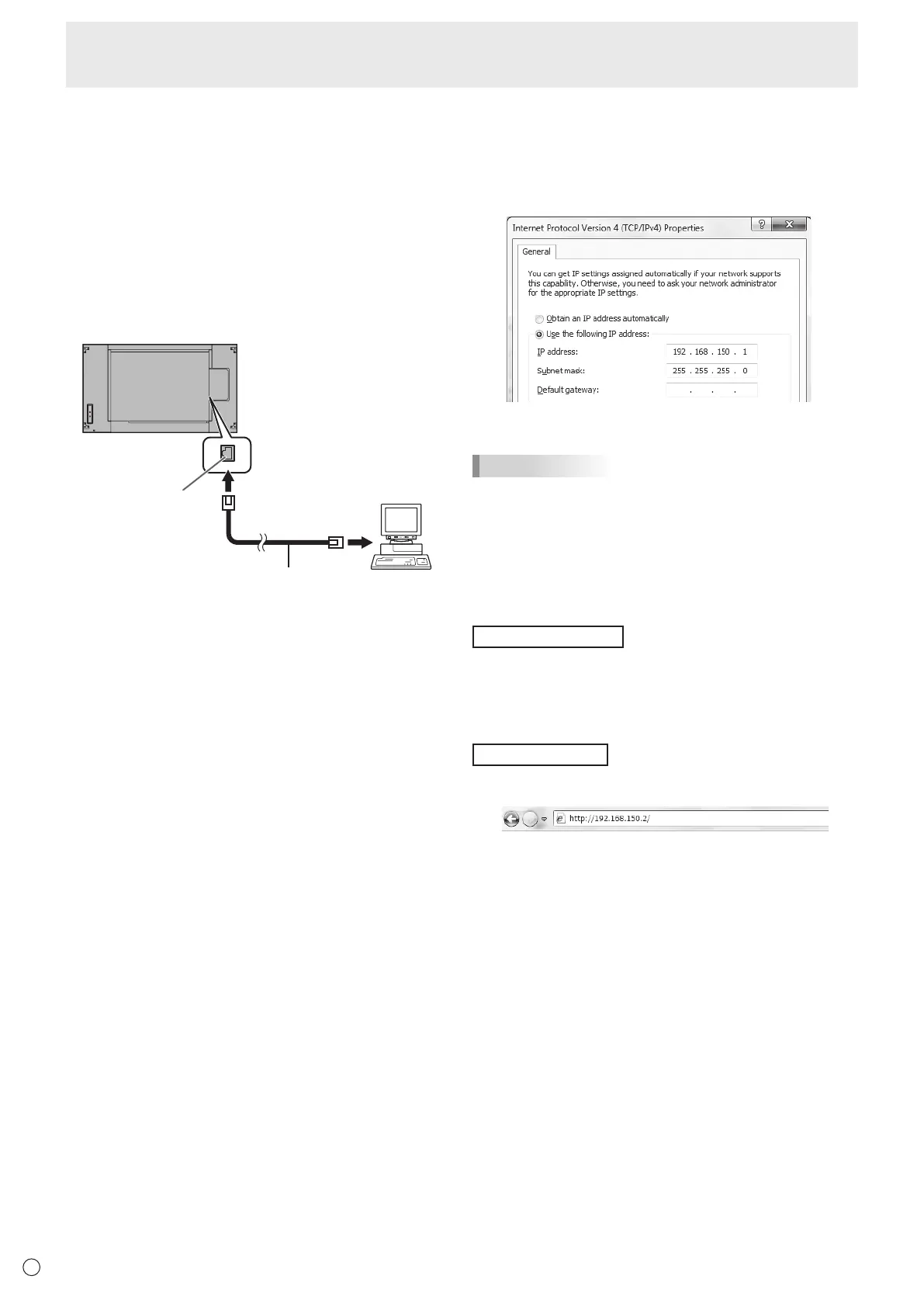

To set from a computer
When the monitor is connected to a computer, LAN settings
can be congured via computer.
Set up process
(1) Connect your monitor to a computer
(2) Specify the computer’s IP address
(3) Congure the monitor’s LAN settings
(1) Connecting your monitor to a computer
Connect a commercially available crossover LAN cable (UPT
cable, Category 5) to the LAN port on the computer and this
monitor.
Computer
LAN cable
(commercially available, crossover)
To LAN terminal
LAN terminal
(2) Specifying the computer’s IP address
To congure the monitor’s LAN settings, you must temporarily
change the settings on the computer.
This explanation is based on Windows 7.
1. Log on to the computer with an administrator account.
2. Click [Start], and then click “Control Panel”.
3. Click “View network status and tasks” in “Network and
Internet”.
In “Classic View”, click “Network and Sharing Center”.
4. Click “Local Area Connection” and then “Properties”.
5. Click “Internet Protocol Version 4 (TCP/IPv4)” and then
“Properties”.
6. Make a note of the current IP address, subnet mask, and
default gateway settings.
Make sure you write this information now as you will
be changing the IP address, subnet mask, and default
gateway settings back to these settings afterwards.
7. Temporarily change the IP address and subnet mask.
To access the monitor as it is shipped from the factory, set
as follows.
• IP Address : 192.168.150.1
• Subnet Mask : 255.255.255.0
• Default Gateway : (leave blank)
8. Click [OK] and then reboot the computer.
TIPS
• This monitor is factory preset as shown below.
(When DHCP CLIENT is set to “OFF”)
IP Address : 192.168.150.2
Subnet Mask : 255.255.255.0
Default Gateway : 0.0.0.0
(3) Conguring the monitor’s LAN settings
Access the monitor using the web browser.
Controlling the monitor
1. Turn the power ON to the monitor.
2. Set RS-232C/LAN SELECT of COMMUNICATION
SETTING on the SETUP menu to LAN.
3. Set DHCP CLIENT of LAN SETUP of COMMUNICATION
SETTING on the SETUP menu to “OFF”.
Computer operation
4. Launch the web browser, in the “Address” box type
“http://192.168.150.2/” and press the Enter key.
5. Enter the USER NAME and PASSWORD.
The following values are set in the initial settings.
User name: admin, password: admin
* To enable security on the monitor, change the user
name and password. (See page 51.)
Controlling the Monitor with a computer (LAN)
