Menu Items

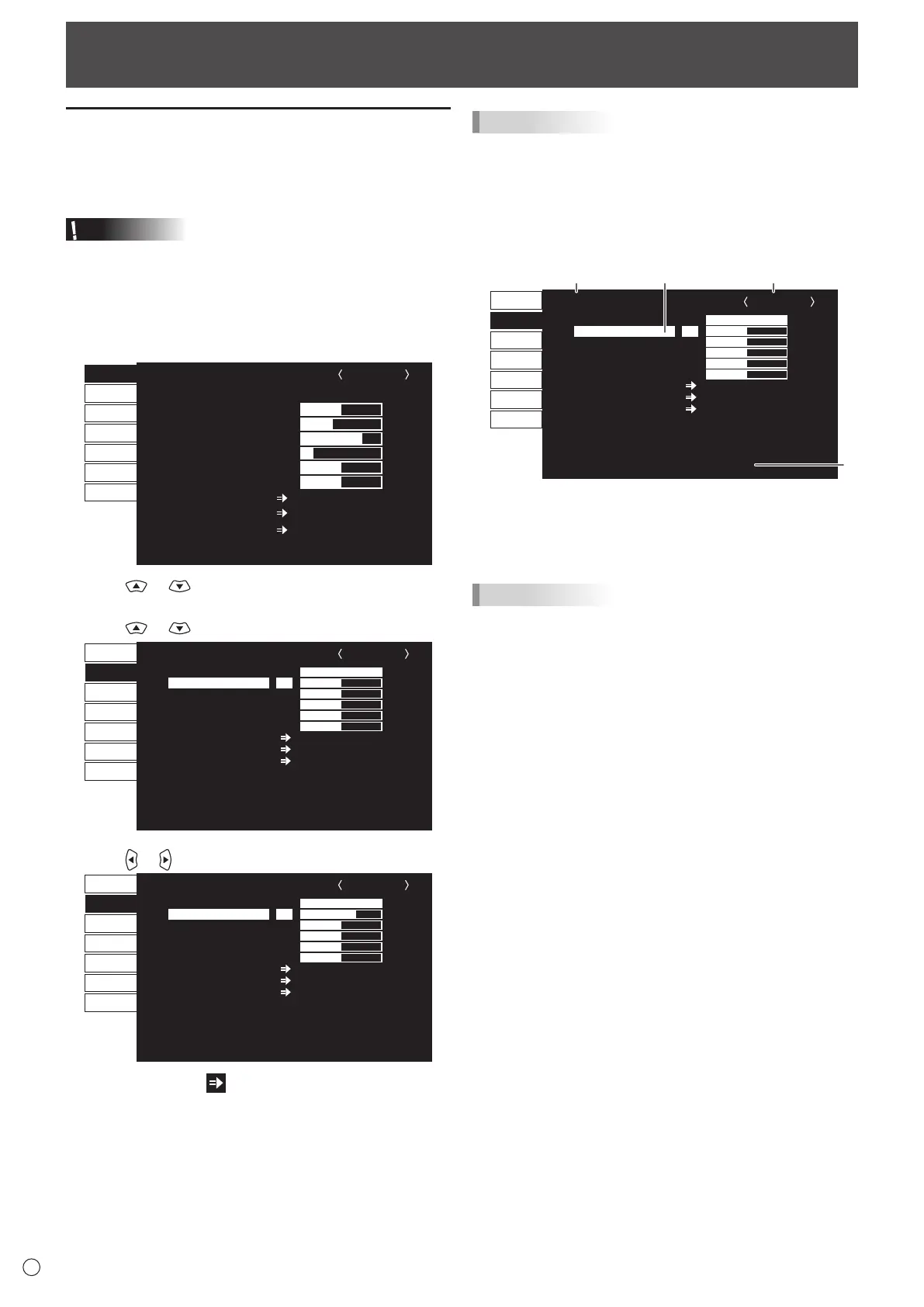

Displaying the menu screen
Video and audio adjustment and settings of various functions
are enabled. This section describes how to use the menu
items. See pages 23 to 33 for details of each menu items.
Caution
Do not turn the main power switch off while the menu items
are being displayed. Doing so may initialize the settings.
n
Example of operation
(Adjusting CONTRAST in the PICTURE menu)
1. Press the MENU button to display the menu screen.
1 920x1080
V: 60 Hz H: 67.5 kHz
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
AUTO
CLOCK
PHASE
H-POS
V-POS
H-SIZE
V-SIZE
RESOLUTION SETTING
INPUT SIGNAL
RESET
600
25
610
37
50
50
SCREEN D-SUB[RGB]
OK:[ENTER] END:[RETURN]
2. Press
or
to select PICTURE, and press the
ENTER
button.
3. Press
or
to select CONTRAST.
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
31
30
30
30
30
12
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
BACK:[RETURN]MOVE OSD:[INFORMATION]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB[RGB]
4. Press or to adjust the setting.
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
31
40
30
30
30
12
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
BACK:[RETURN]MOVE OSD:[INFORMATION]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB[RGB]
For items that have
, press the ENTER button to display
the sub menu.
5. Press the MENU button to close the menu screen.
TIPS
The menu will differ depending on the input mode.
The menu screen will close automatically if no operation is
performed for about 15 seconds. (DATE/TIME SETTING,
SCHEDULE and LAN SETUP screens will close in about 4
minutes.)
n
Menu screen display
BRIGHT
CONTRAST
BLACK LEVEL
TINT
COLORS
SHARPNESS
COLOR ADJUSTMENT
ADVANCED
RESET
31
30
30
30
30
12
SCREEN
AUDIO
SETUP
MONITOR
MULTI/PIP
OTHERS
BACK:[RETURN]MOVE OSD:[INFORMATION]
1 920x1080
V: 60 Hz H: 67.5 kHz
D-SUB[RGB]
1
23
4
1 Name of the menu
2 Input mode
3 An item being selected (highlighted)
4 Screen resolution of input signal, and other data.
TIPS
Items that cannot be selected appear in gray.
(e.g. Function not supported by the current input signal)
