Sharp PN-S525 - Page 10

8
E

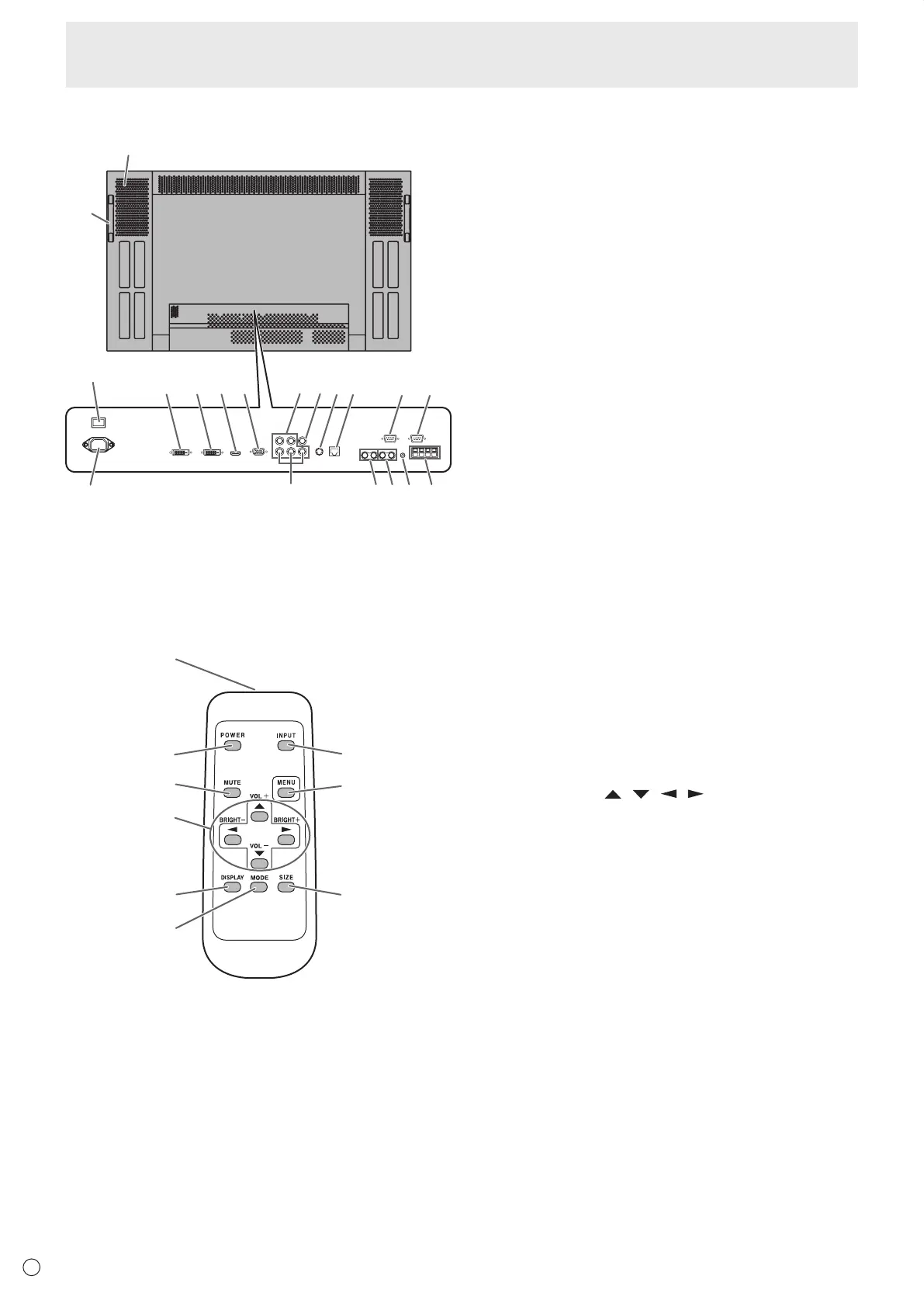

Part Names
n
Rear view
3
61011
12 13
7
814151617
9
4 5
1
2
19
18
1. Main power switch (See page 14.)
2. AC input terminal (See page 12.)
3. PC/AV output terminal (DVI-D) (See page 11.)
4. PC1 input terminal (DVI-D) (See page 10.)
AV1 input terminal (DVI-D) (See page 10.)
5. PC2 input terminal (HDMI) (See page 10.)
AV2 input terminal (HDMI) (See page 10.)
6. PC3 input terminal (Mini D-sub 15 pin) (See page 10.)
7. PC4 input terminals (BNC) (See page 10.)
8. AV3 input terminals (BNC) (See page 10.)
9. AV5 input terminal (BNC) (See page 10.)
10. AV4 input terminal (S) (See page 10.)
11. LAN terminal (See page 11.)
12. RS-232C output terminal (D-sub 9 pin) (See page 11.)
13. RS-232C input terminal (D-sub 9 pin) (See page 11.)
14. PC/AV audio output terminals (See page 11.)
15. AV audio input terminals (See page 10.)
16. PC audio input terminal (See page 10.)
17. External speaker terminals (See page 11.)
18. Handles
19. Vents
n
Remote control unit
1
2
3
4
5
6
9
8
7
1. Signal transmitter
2. POWER button (See page 14.)
3. MUTE button (See Operation guide.)
4. VOL +/- buttons (See Operation guide.)
BRIGHT +/- buttons (See Operation guide.)
Cursor control (
/ / / ) buttons
5. DISPLAY button (See Operation guide.)
6. MODE button (See Operation guide.)
7. INPUT button (See Operation guide.)
8. MENU button (See Operation guide.)
9. SIZE button (See Operation guide.)
