Sharp PN-S525 - Page 20

18
E
Specications
n
DDC (plug and play)
The monitor supports the VESA DDC (Display Data Channel) standard.
DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters
isexchangedbetweenthetwo.ThisfunctioncanbeusedifthecomputersupportsDDCandithasbeenconguredtodetect
plug-and-play monitors.
ThereareseveraltypesofDDC,dependingonthecommunicationmethodused.ThismonitorsupportsDDC2B.
n

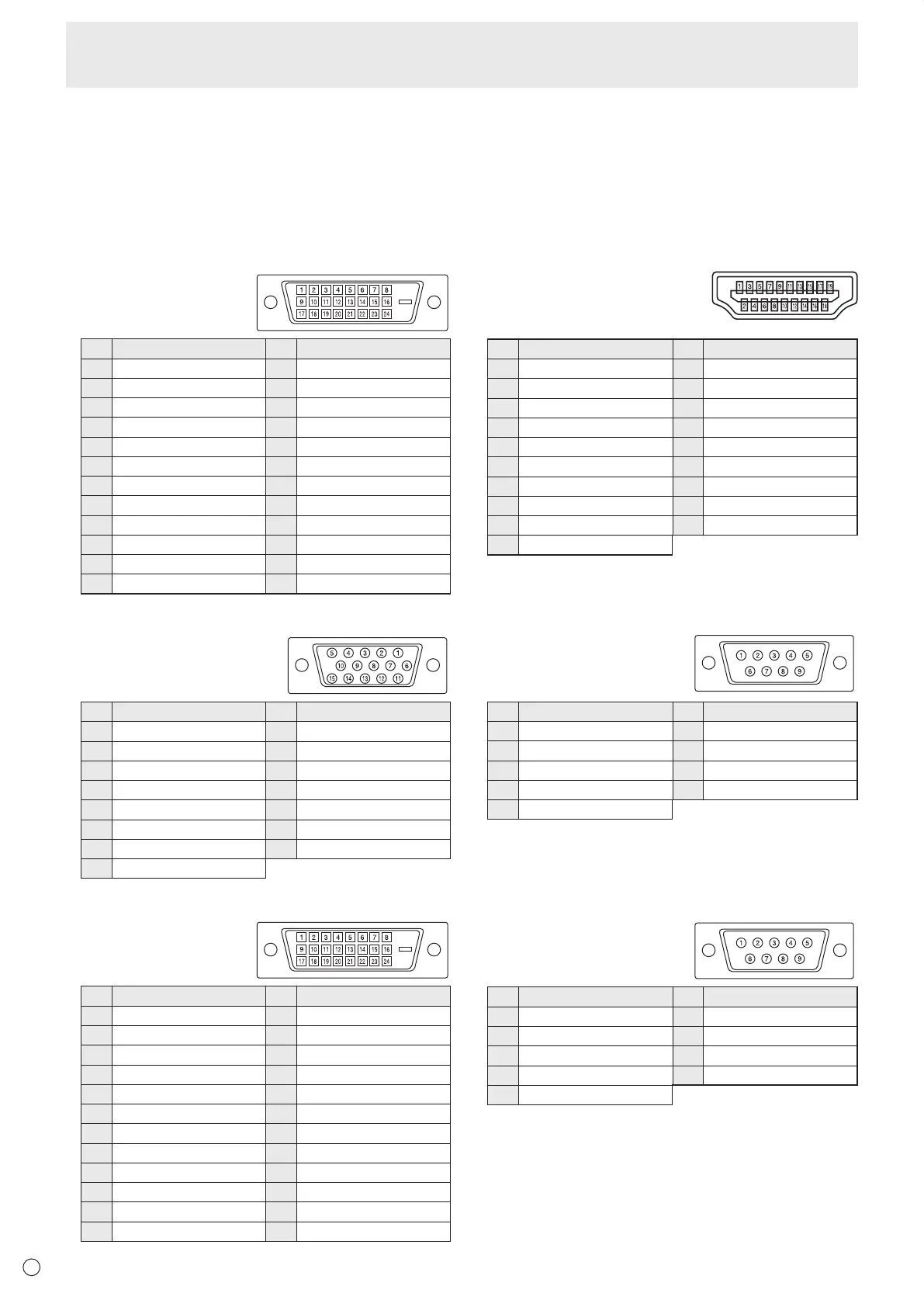

PC1/AV1 input terminal pins
(DVI-D24 pin)
No. Function No. Function
1 TMDS data 2- 13 N.C.
2 TMDSdata2+ 14 +5V
3 TMDS data 2/4 shield 15 GND
4 N.C. 16 Hot-plug detection
5 N.C. 17 TMDS data 0-
6 DDC clock 18 TMDSdata0+
7 DDC data 19 TMDS data 0/5 shield
8 N.C. 20 N.C.
9 TMDS data 1- 21 N.C.
10 TMDSdata1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDSclock+
12 N.C. 24 TMDS clock-
n
PC3 input terminal pins
(Mini D-sub 15 pin)
No. Function No. Function
1 Red video signal input 9 +5V
2 Green video signal input 10 GND
3 Bluevideosignalinput 11 N.C.
4 N.C. 12 DDC data
5 GND 13 Hsync signal input
6 GND for red video signal 14 Vsync signal input
7 GND for green video signal 15 DDC clock
8 GND for blue video signal
n
PC/AV output terminal pins
(DVI-D24 pin)
No. Function No. Function
1 TMDS data 2- 13 N.C.
2 TMDSdata2+ 14 +5V
3 TMDS data 2/4 shield 15 GND
4 N.C. 16 Hot-plug detection
5 N.C. 17 TMDS data 0-
6 DDC clock 18 TMDSdata0+
7 DDC data 19 TMDS data 0/5 shield
8 N.C. 20 N.C.
9 TMDS data 1- 21 N.C.
10 TMDSdata1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDSclock+
12 N.C. 24 TMDS clock-
n
PC2/AV2 input terminal pins
(HDMI
TM
Connector)
No. Function No. Function
1 TMDSdata2+ 11 TMDS clock shield
2 TMDS data 2 shield 12 TMDS clock-
3 TMDS data 2- 13 CEC
4 TMDSdata1+ 14 N.C.
5 TMDS data 1 shield 15 SCL
6 TMDS data 1- 16 SDA
7 TMDSdata0+ 17 DDC/CEC GND
8 TMDS data 0 shield 18 +5V
9 TMDS data 0- 19 Hot-plug detection
10 TMDSclock+
n
RS-232C input terminal pins
(D-sub 9 pin)
No. Function No. Function
1 N.C. 6 N.C.
2 Transmitted data 7 N.C.
3 Received data 8 N.C.
4 N.C. 9 N.C.
5 GND
n
RS-232C output terminal pins
(D-sub 9 pin)
No. Function No. Function
1 N.C. 6 N.C.
2 Received data 7 N.C.
3 Transmitted data 8 N.C.
4 N.C. 9 N.C.
5 GND
