QT-CD161/141
– 4 –
1 Rear Cabinet 1. Screw ................. (A1) x10 4-1
2. Socket .................. (A2) x1 4-2
2 Top Cabinet 1. Knob ..................... (B1) x1 4-2
(with CD Mechanism/
2. Screw ................... (B2) x3
Tape Mechanism/ 3. Socket .................. (B3) x1
Main PWB)
3 Main PWB/ 1. Screw ................... (C1) x9 4-3,5-1
Switch PWB/ 2. Socket .................. (C2) x4 4-3,5-1
Headphones PWB 3. Soldering .............. (C3) x3 4-3
(QT-CD161 Only)
4 Tape Mechanism 1. Screw ................... (E1) x4 5-1
5 CD Mechanism 1. Screw ................... (F1) x3 5-1
6 Terminal PWB 1. Screw ................... (G1) x5 5-2
2. Hook .....................(G2) x1
7 Battery PWB 1. Hook ..................... (H1) x2 5-3
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep it safe and ensure excellent
performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.

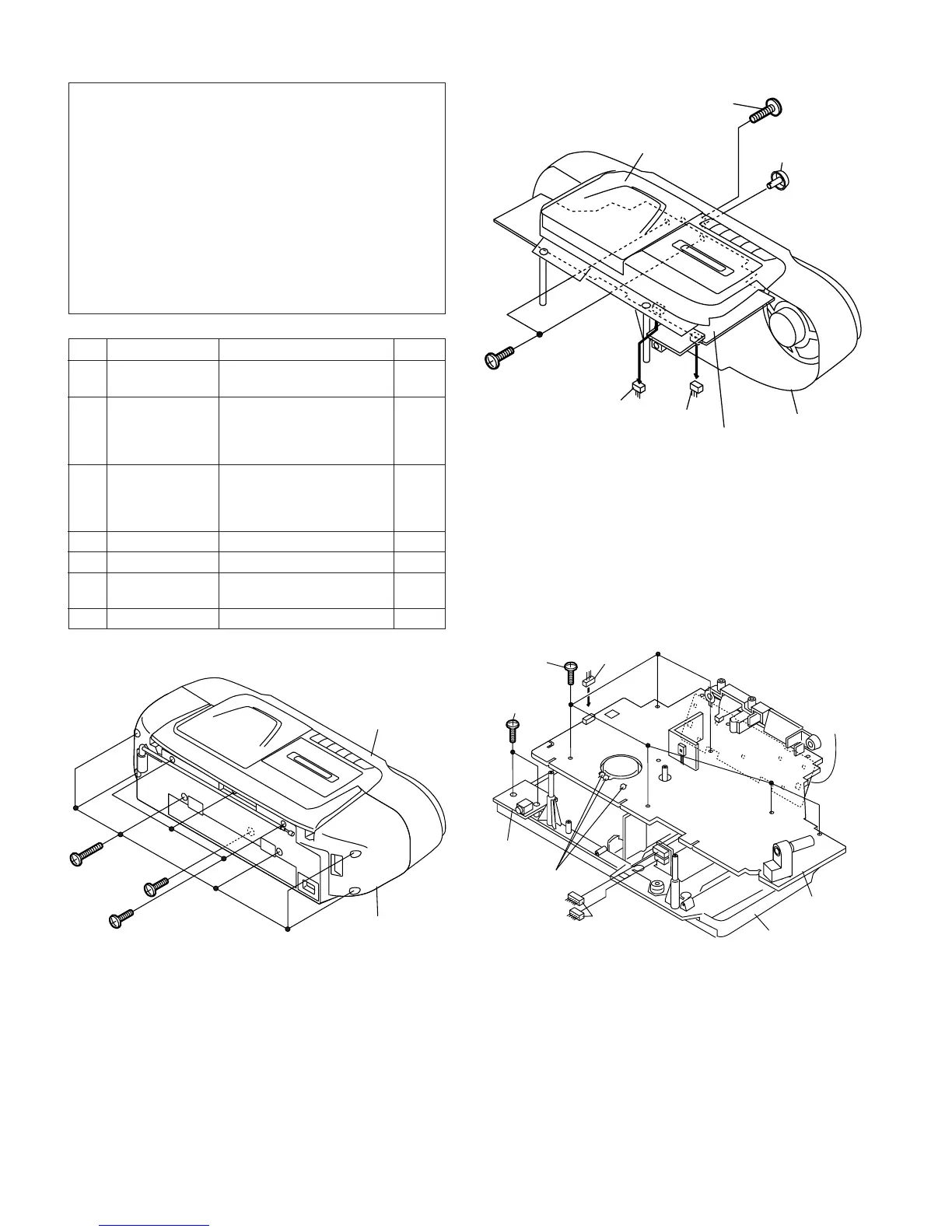

STEP REMOVAL PROCEDURE FIGURE
Figure 4-3
Figure 4-1
Figure 4-2
(A1)x3
ø3x12mm
(A1)x1
ø3x12mm
(A1)x6
ø3x20mm
Rear Cabinet
Front Cabinet
(B2)x2
ø3x10mm
(A2)x1
(B3)x1
Front Cabinet
Top Cabinet
(B1)x1
Main PWB
(B2)x1
ø3x10mm
Headphones
PWB
(C1)x6
ø3x10mm
(C1)x2
ø3x10mm
Main PWB
Top Cabinet
(C2)x1
(C3)x3
(C2)x2
Switch
PWB
To Next Page
