Sharp QT-CD161 User Manual

QT-CD161/141
– 5 –
CD MECHANISM SECTION
Perform steps 1, 2, 3 and 5 of the disassembly method to
remove the CD mechanism.
How to remove the pickup (See Fig. 5-4.)
1. Remove the screws (A1) x 2 pcs., to remove the shaft (A2)
x1 pcs.
2. Remove the stop washer (A3) x1 pcs., to remove the gear
(A4) x 1 pcs.
3. Remove the pickup.

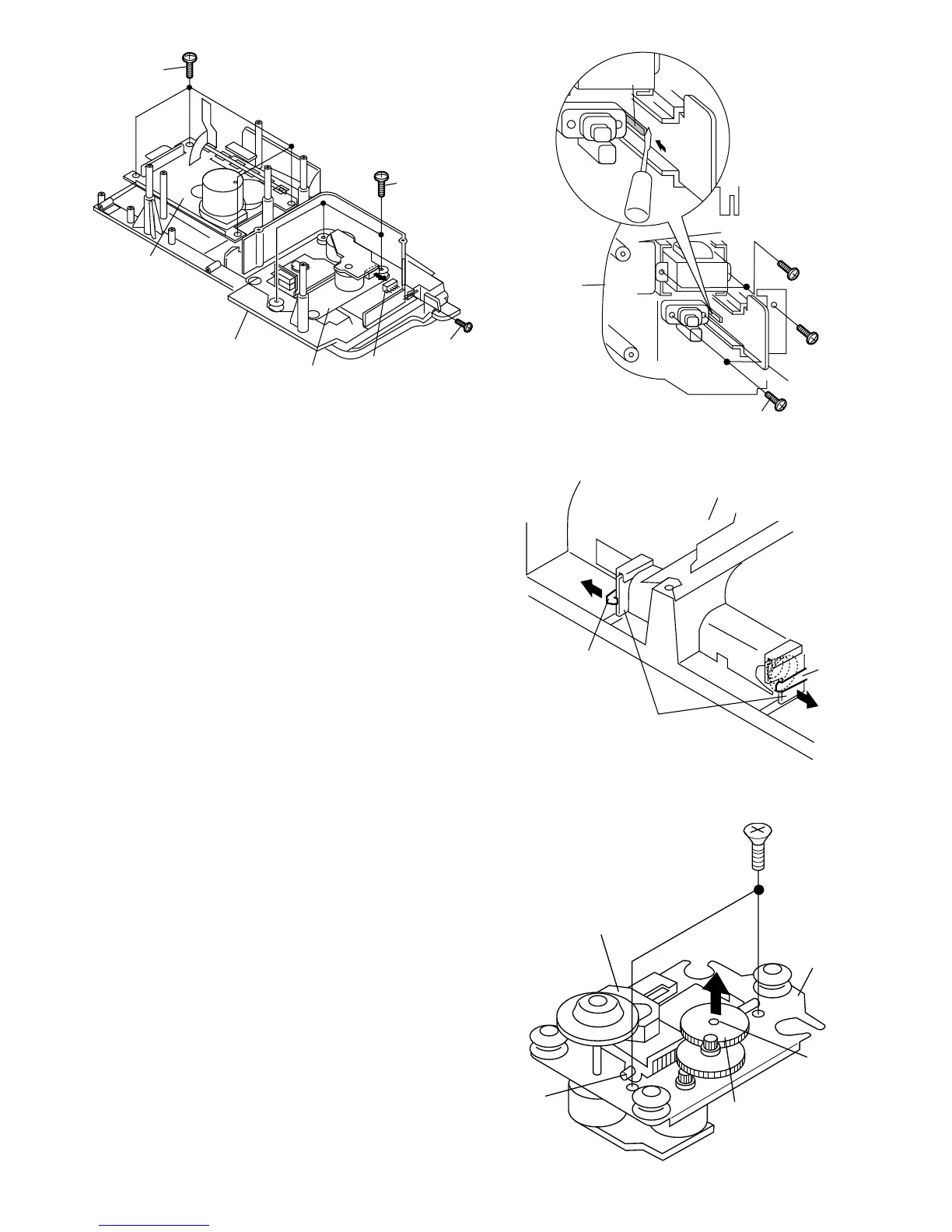

Figure 5-3
REMOVING AND REINSTALLING THE MAIN PARTS
Top Cabinet
Tape
Mechanism
CD Mechanism
(F1)x3
ø2.5x10mm
(C1)x1
ø2.5x8mm
(E1)x4
ø3x10mm
(C2)x1
(G1)x2
ø3x10mm
(G1)x1
ø3x10mm
(G1)x2
ø3x10mm
Terminal PWB
Driver
Push
(G2)x1
Rear Cabinet
Figure 5-4
(A1) x2
ø2.6 x6mm
Stop
Washer
(A3) x1
CD
Mechanism
Gear
(A4) x1
Shaft
(A2) x1
Pickup
Figure 5-2
Rear Cabinet
(H1)x1
(H1)x1
Battery PWB
Pull
Pull
Figure 5-1
