R-350J
14
LSI

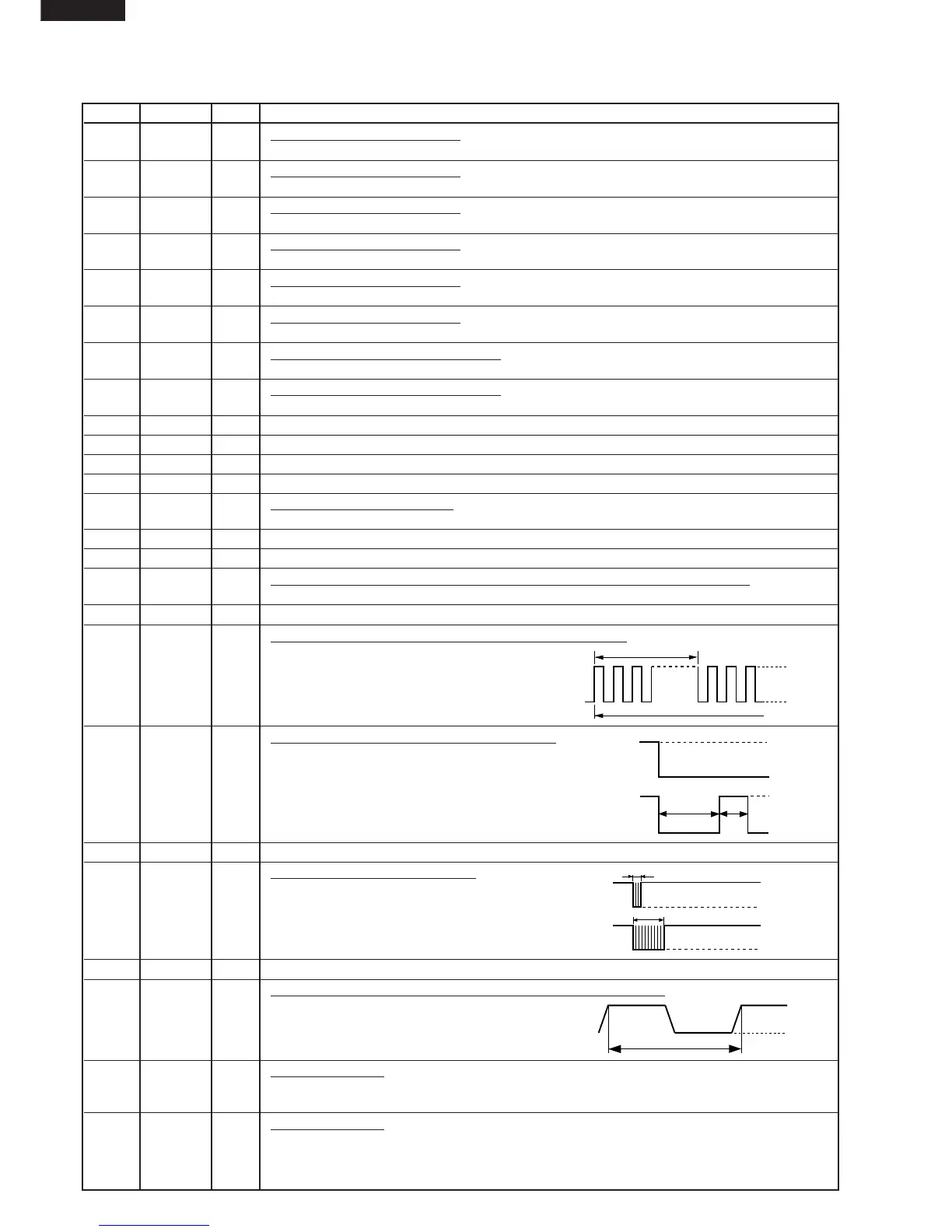

The I/O signal of the LSI is detailed in the following table.
Pin No. Signal I/O Description
1 COM5 OUT Common data signal : COM11.
Connected to LCD signal COM11.
2 COM4 OUT Common data signal : COM12.
Connected to LCD signal COM12.
3 COM3 OUT
Common data signal : COM13.
Connected to LCD signal COM13.
4 COM2 OUT Common data signal : COM14.
Connected to LCD signal COM14.
5 COM1 OUT Common data signal : COM15.
Connected to LCD signal COM15.
6 COM0 OUT Common data signal : COM16.
Connected to LCD signal COM16.
7-10 VL1-VL4 IN Power source voltage input terminal.
Standard voltage for LCD.
11 VL5 IN Power source voltage input terminal.
Standard voltage for LCD. Connected to GND.
12-14 C3-C1 IN Terminal not used.
15 VLIN IN Terminal not used.
16 VSS (NC) OUT Terminal not used.
17 NC Terminal not used.
18 VSS IN Power source voltage : -5.0V.
The power source voltage to the LSI is input to VSS terminal. Connected to VC.
19-21 P27-P25 OUT Terminal not used.
22-26 P24-P20 IN Terminal not used.
27 P47 IN To input signal which communicates the door open/close information to LSI.
Door close "H" level signal (0V). Door open "L" level signal (-5V).
28 P46 OUT Terminal not used.
29 P45 OUT Oven lamp, fan motor and turntable motor driving signal.
To turn on and off shut off relay (RY1). The square
waveform voltage is delivered to the RY1 driving
circuit and RY2 control circuit.
30 P44 OUT Magnetron high-voltage circuit driving signal.
To turn on and off the cook relay (RY2). The signals
holds "L" level during microwave cooking and "H"
level while not cooking. In other cooking modes
(variable cooking) the signal turns to "H" level and "L"
level in repetition according to the power level.
31 P43 Terminal not used.
32 CNTR0 OUT Signal to sound buzzer (2.0 kHz).
A: key touch sound.
B: Completion sound.
33 P41 OUT Terminal not used.
34 INT0 IN
Signal synchronized with commercial power source frequency.
This is the basic timing for time processing of LSI.
35 P07 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AIN7, P14, P15, P16 and P17 terminal
while one of G1 line keys on key matrix is touched.
36 P06 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AIN7, P14, P15, P16 and P17 terminal
while one of G2 line keys on key matrix is touched.
20.0 msec.
During cooking
H : GND
L : -5V
100
PERCENT
70
PERCENT
H : GND
L : -5V
H : GND
L : -5V
ON
ON
OFF
OFF OFF
24 sec.
8 sec.
A
B
0.1 sec.
2.0 sec.
H : GND
L : -5V
H : GND
L : -5V
20.0 msec.
H : GND
L : -5V
