DOOR DISASSEMBLY
Remove door assembly, refer to “Door Replacement”.
Replacement of door components are as follows:
1. Place door assembly on a soft cloth with latches facing
UP.
Note: As the engaging part of choke cover and door panel
are provided at 18 places, do not force any particular
part.

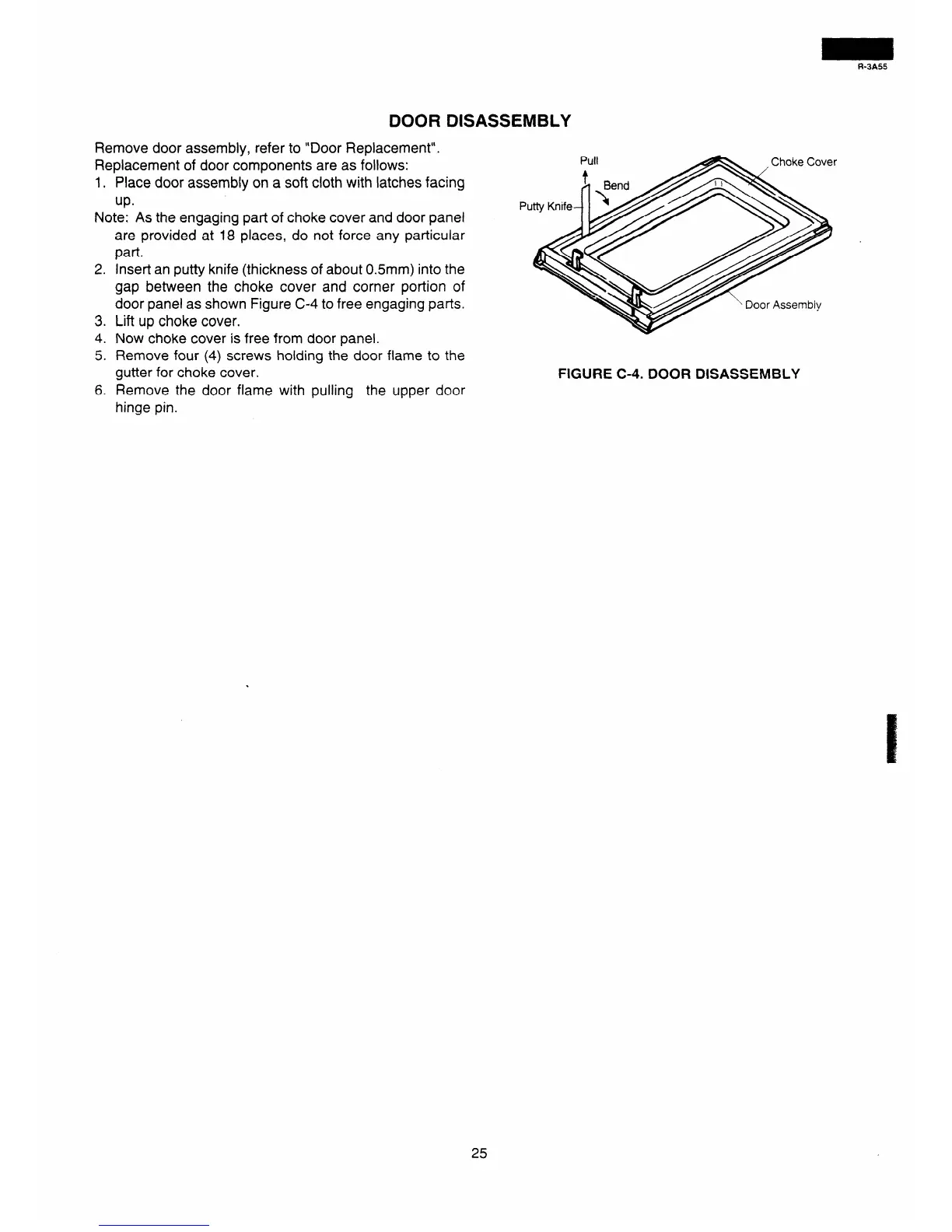

2. Insert an putty knife (thickness of about 0.5mm) into the
gap between the choke cover and corner portion of
door panel as shown Figure C-4 to free engaging parts.
3. Lift up choke cover.
4. Now choke cover is free from door panel.
5. Remove four (4) screws holding the door flame to the
gutter for choke cover.
6. Remove the door flame with pulling the upper door
hinge pin.
