Sharp RP-200H - Mechanical Adjustment

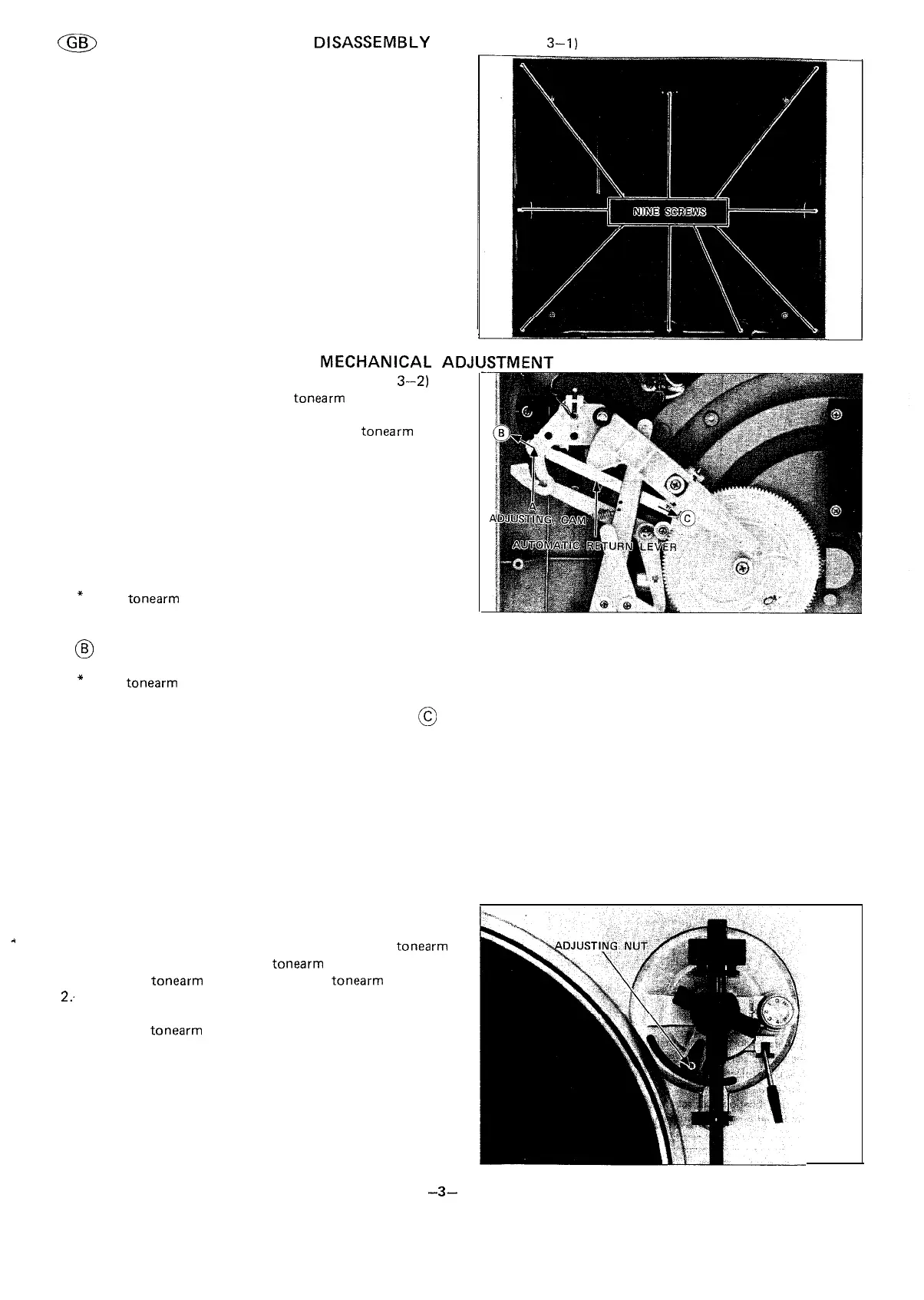

DISASSEMBLY (Refer to Figure 3-1)
Prior to removing the bottom cover, be sure to draw the AC
power supply cord from a wall outlet. Then proceed with
the removal work in the following order after disconnecting
all of the connection cords at the rear of the unit.
Turn the unit over, nine screws retaining the bottom cover,
then the bottom cover can be detached.
L
MECHANICAL ADJUSTMENT
Figure 3-l
AUTO RETURN ADJUSTMENT (Refer to Figure 3-2)
If a record playing is finished, the tonearm must, usually,
return automatically to the rest stand by the aid of the auto
return mechanism functioning. However, the tonearm may
start to move even when a record doesn’t yet reach its extreme
end or there arises no return operation even after a record
play: in this case, take the following steps to correct it. (More,
the important to note is that if other record than meeting
the Standard of your country are used, a normal return
operation may not be ensured.
1. Remove the turntable and bottom cover.
2. Reset the turntable to its place, play a record and check
for the automatically return starting position.
* If the tonearm begins to return automatically even
before a record play has not yet reached its end, rotate
adjusting cam A and move the automatic return lever to
@ , until the automatic return operation becomes able to
start from its proper position.
* If the tonearm doesn’t begin to return automatically
even after a record play has reached its end, rotate adjusting
cam A and move the automatic return lever to @ ,
until the automatic return operation becomes able to
start from its proper position.
HEIGHT ADJUSTMENT OF STYLUS TIP
(Refer to Figure 3-3)
il
1. Lift up the cuing/pause control lever to raise the tonearm
and then manually bring the tonearm over the turntable
so that the tonearm will be put onto the tonearm lifter.
2.. Adjust the interval between the record surface and the
stylus tip to be 4 to 8 mm by using an adjusting nut re-
taining the tonearm lifter.
Figure 3-2
-3-
Figure 3-3
