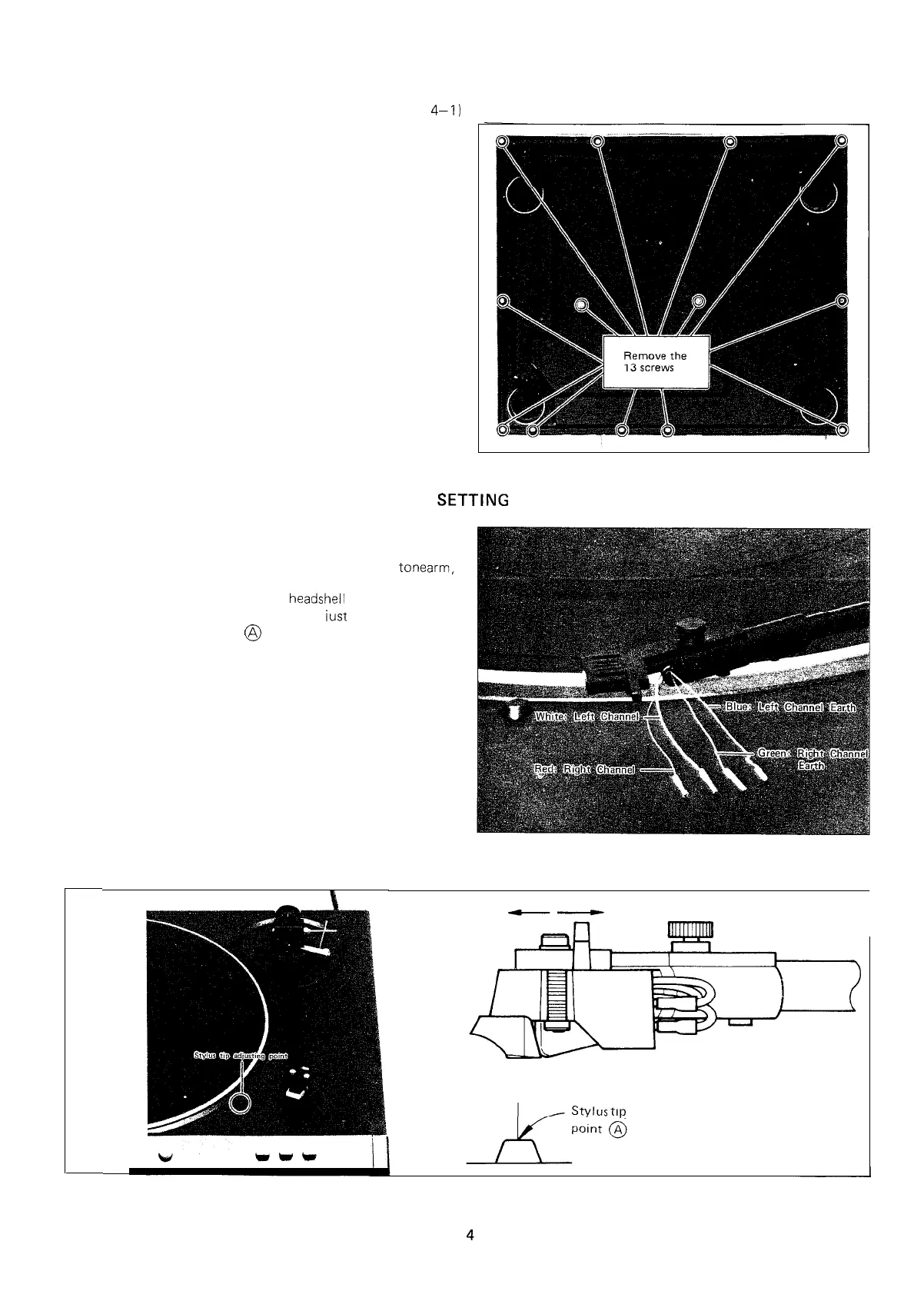

n REMOVAL OF BOTTOM PLATE (Refer to Figure 4-I)
1. Turn over the set after removing the turntable, but
with the dust cover left as it is without fail.
2. Remove the 13 screws retaining the bottom plate, then
it can be detached.
n
SETTING OF CARTRIDGE
(Refer to Figure 4-2 and Figure 4-3)
1. Connect the output leads, at the end
to the cartridge.
2. Put the cartridge into the headshell
as to allow the stylus tip to come iust
tip adjusting point @
Figure 4-l
SETTING
of the tonearm,
in such a way
above the stylus
Figure 4-2
Stylus tip adjusting
Figure 4-3
