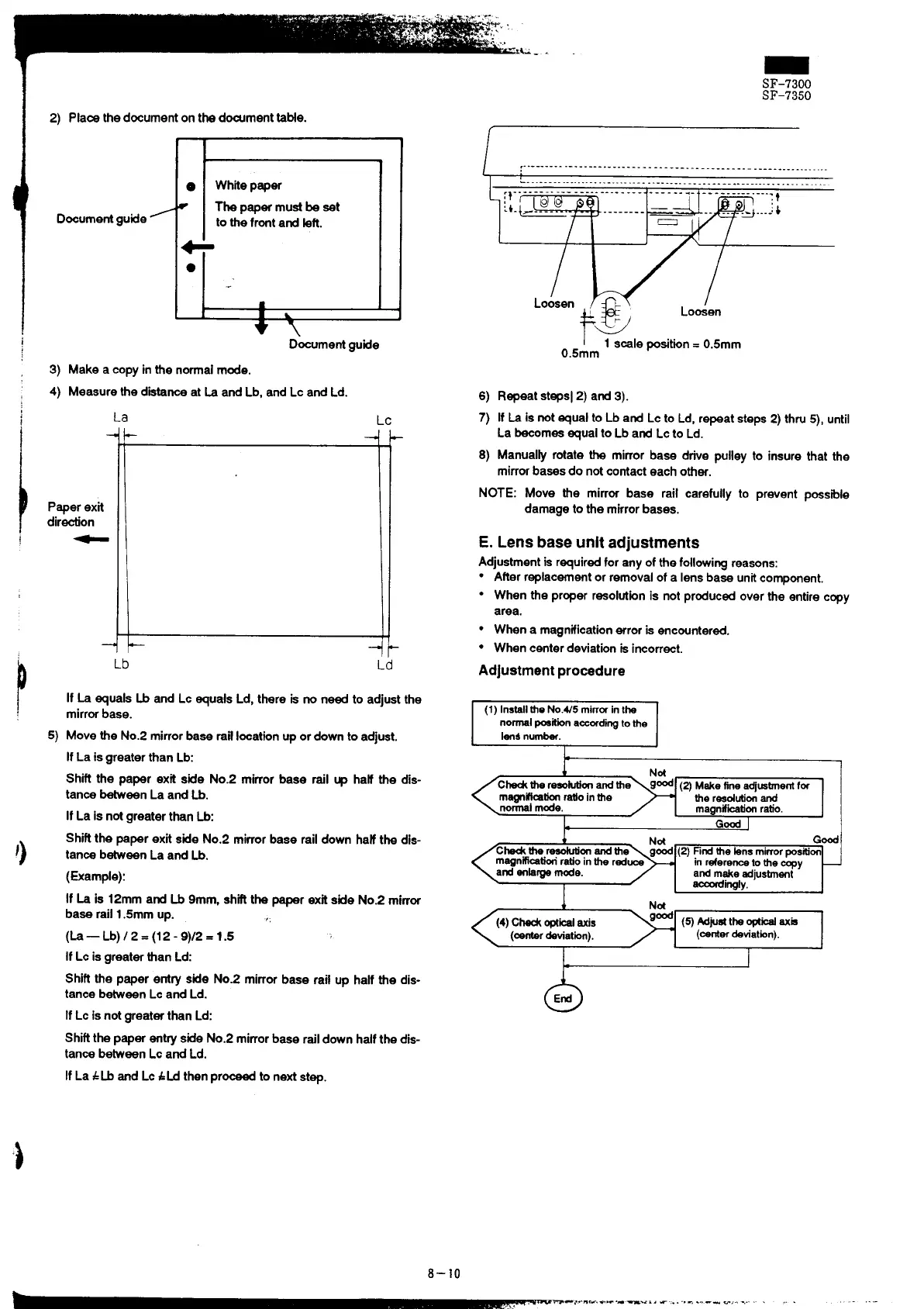

2) Plaa thedocumentonthedocumentta~e.
.=ume.gu~e~”m
3)
4)
Documentguide
Makea
copyinthe normalmode.
Measure the distanceat La and Lb, andLc and Ld.
—
P@er exit
dir&on
5)
—
La
Lc
Lb
1
If La quals Lb and Lc quals Ld, there is no need to adjustthe
mirrorbase.
Move tie No.2 mirrorbase rafllocationup ordowntoadjust.
If La isgreaterthan Lb:
Shift the paper exit side No.2 mirrorbase rail up hati the dis-
tance betweenLa and Lb.
If La is notgreaterthan Lb:
Shiftthe paper exit side No.2 mirrorbase rail down haffthe dis-
tan~ betweenLa and Lb.
(Example):
If La is 12mm and Lb 9mm, shiftthe paper exit side No.2 mirror
base rail1.5mm up.
r;
(La – Lb)/ 2 = (12 - 9)/2 = 1.5
If Lc is greaterthan Ld:
Shift the paper ent~ stie No.2 mirrorbase rail up half the dis-
tance between Lc and Ld.
If Lc is notgreaterthan Ld:
Shiftthe paper entrysideNo.2 mirrorbase raildownhalfthe dis-
tance betweenLc and Ld.
If La Am and Lc ALdthenproceedto nextstep.
SF-73OO
SF-735O
:--------- -------------- -- ----------- .... .. .. .. .............
......... .. .. ... . ........... .......................
1
I
Lo~en ~ Lo~n
7s
‘d
1 scale position= 0.5mm
0.5mm
6)
7)
8)
Repeatstepsl2) and 3).
If La is notqual to Lb and Lcto Ld, repeat steps
2) thru 5), until
La becomesqual to Lband Lcto Ld.
Manual~ rotate the mirrorbase dfie pulley to insure that the
mirrorbasesdo notcontacteach other.
NOTE: Move the mirror base rail carefully to prevent possible
damage to the mirrorbases.
E. Lensbaseunitadjustments
Adjustmentis rquired forany of the followingreasons:
● Afterreplacementor removalof a lensbase unitcomponent.
● When the properresolutionis not producedover the entirecopy
area.
● When a magnificationerrork encountered.
● When centerdeviationisincorrect.
Adjustment pro~dure
J
CM tie reeoMm andtie
good (2) Mwe
fine adjuetmenrfOr
megnficah @o intfre he readtion ~
normalrode, magn#btiM ratio.
t
G& J
Gd
CM
ttrer~
gd
(2) Rrd tie kns mimerpstion
magnficatiti ratioinhe redw
in refere~ totie qy
and m&a edjustrnent
accordingly,
i Not
(~) M~& tb ~- am
(4) CM *M axis
(Centerdatiatbrr).
(-nterdeviatbn).
a–10
