Sharp SJ-PT55R-HS Service Manual

SJPT55RHS
9 – 4
6) Insert 5) ass'y to Plasma holder.
7) Insert 6) ass'y 4) ass'y.
8) Fix 7) ass'y with paper tape.
9) Stick A-sealer rc-d to Damper ass'y.
10) Insert Damper harness to Damper ass'y.
11) Insert 10) ass'y to 8) ass'y
12) Stick A-sealer damper to 11) ass'y
13) Fix 12) ass'y with paper tape.
14)Fix R LED PWB L ass'y to R-c box cover with tapping
screw.
15)Insert the Lamp harness to 14) ass'y, and fix it to R-c
box cover with paper tape.
16)Fix R-thermistor to R-c box cover.
17)Insert 13) ass'y to 16) ass'y.
18)Fix Lamp cover to 17) ass'y.

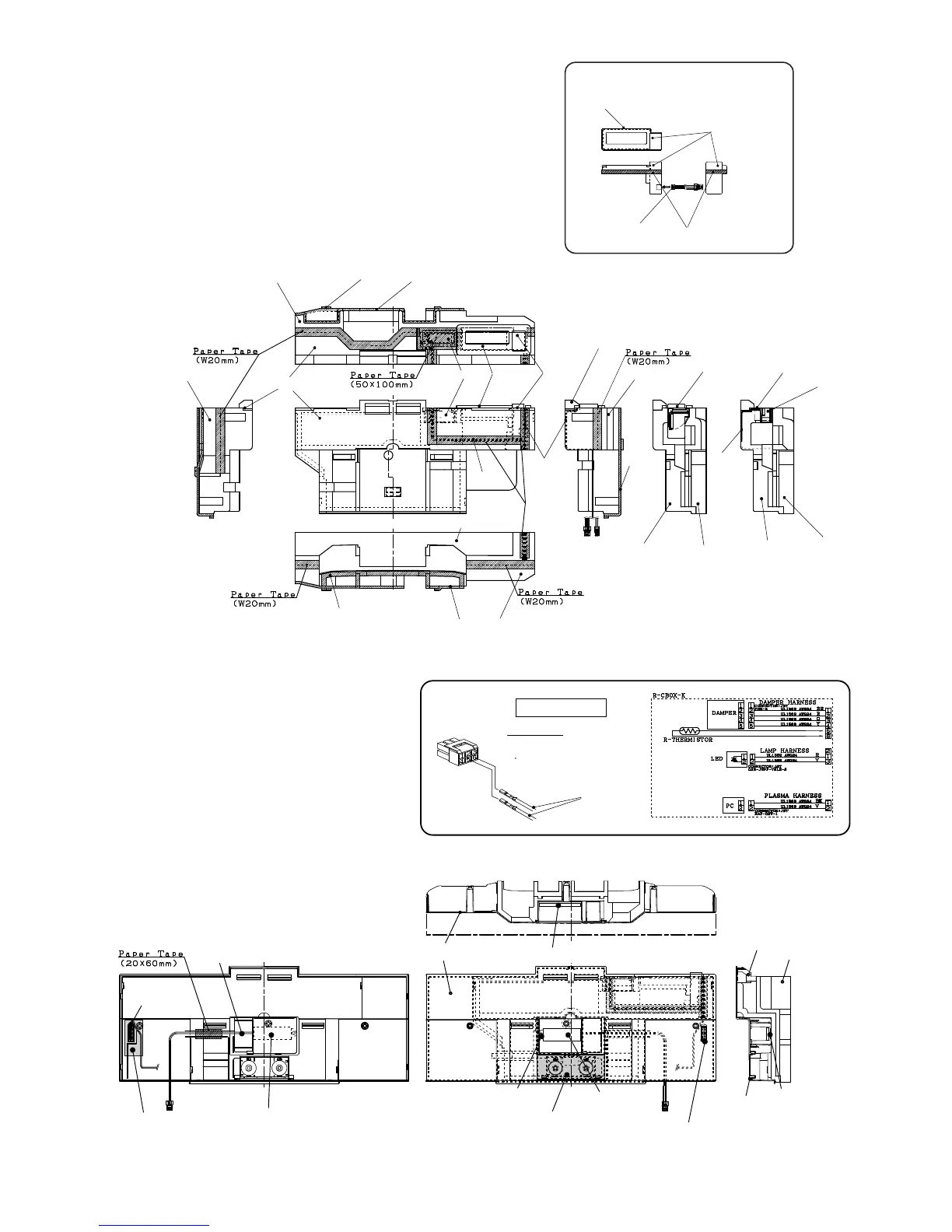

Figure A-11
A-sealer RC-d
Damper ass’y
Damper Harness
A-sealer RC-d
Stick A-sealer rc-d to Damper ass’y
Insert Damper Harness to Damper ass’y
Ra-sealer a
Ra-sealer b
R air guider b
R air guider b
R air guider a
Damper
ass’y
R air guider a
R air guider b
Damper
ass’y
Plasma holder
Ionizer-k
R air guider b
R air guider a
R air guider b
R air guider a
Ra-
sealer a
Damper
harness
R air guider a
PaperTape
(W20mm)
R air guider b
Ra- sealer b
Ra- sealer a
Plasma
harness
A-sealer
damper
Ionizer-k
Plasma
holder
Plasma
harness
Figure-10
R-thermistor
Insert of pin
Note
Pins should be insert surely,
and check by pulling it.
PL process
R-thermistor
R LED
PWB L ass'y
R LED
PWB L ass'y
R LED PWB L ass'y
Tapping screw
R LED PWB L ass'y
Lamp harness
R-thermistor
R-c box cover
R air guider a
R air guider b
R-c box cover
R-thermistor
sealer
Mask label
