SJPT55RHS
10 – 2

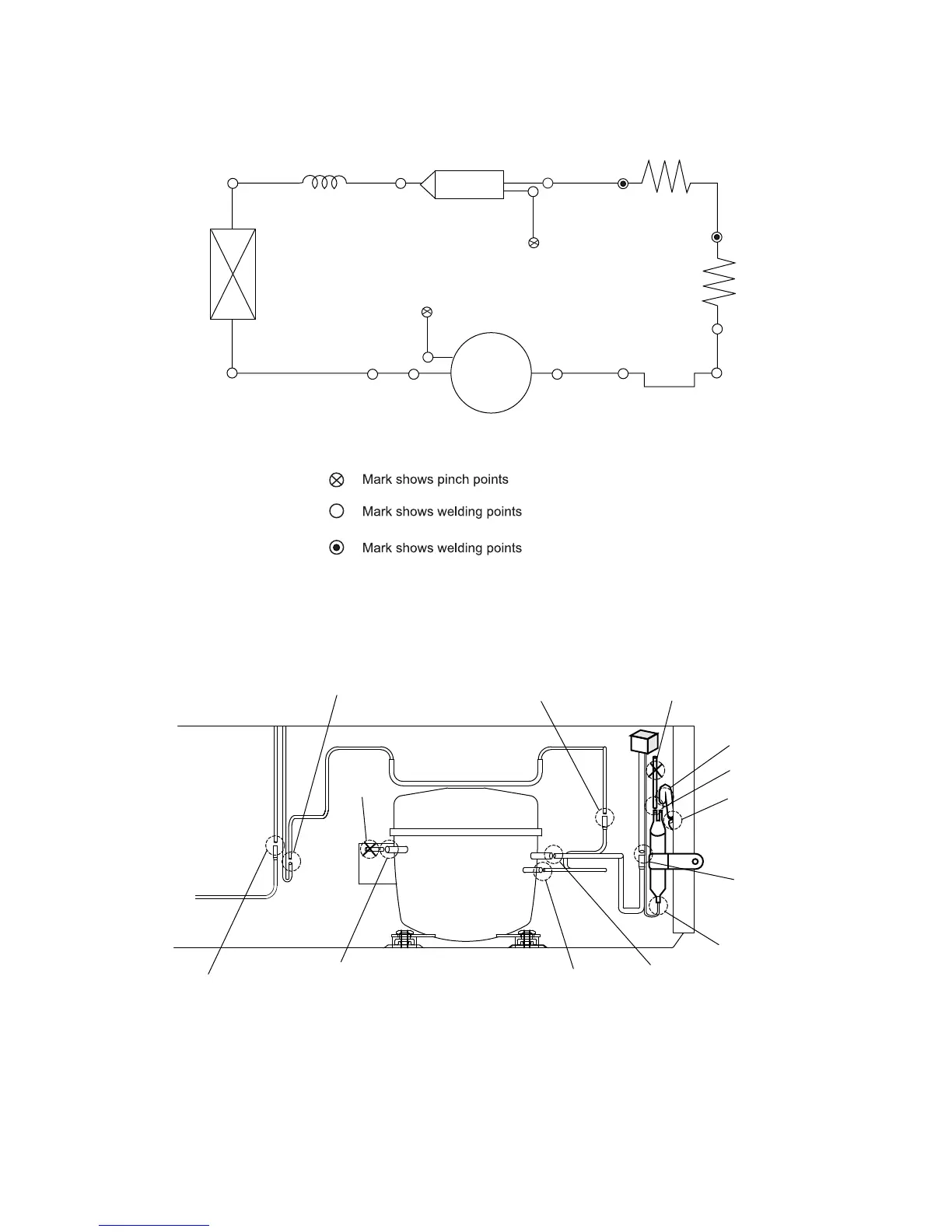

[2] LOCATION
1. Location 1
2. Location 2
Capillary tube
Dryer
Charge pipe HC S
Charge pipe
HC S
Suction pipe S.P
connector
Discharge
connector
Evaporator
Compressor
Eva pan pipe ass’y
Hot pipe
Back condenser
(copper to copper)
(steel to copper)
Dryer
connector
Back condenser (outlet)
to Hot pipe (inlet)
S.P. connector
to compressor’s
suction pipe
Charge pipe HC S
to compressor
Compressor’s discharge pipe
to Discharge connector
S.P connector
to Suction pipe
Pinch Point
Dryer connector
to Dryer
Charge pipe HC S
to Dryer
Hot pipe (outlet)
to Dryer connector
Dryer
to Capillary tube
Discharge connector
to Eva pan pipe ass’y
Pinch point
Eva pan pipe ass’y
to Back condenser (inlet)
