[2] R CONTOROL COVER ASSEMBLY (SJ-PT51R/PT55R)

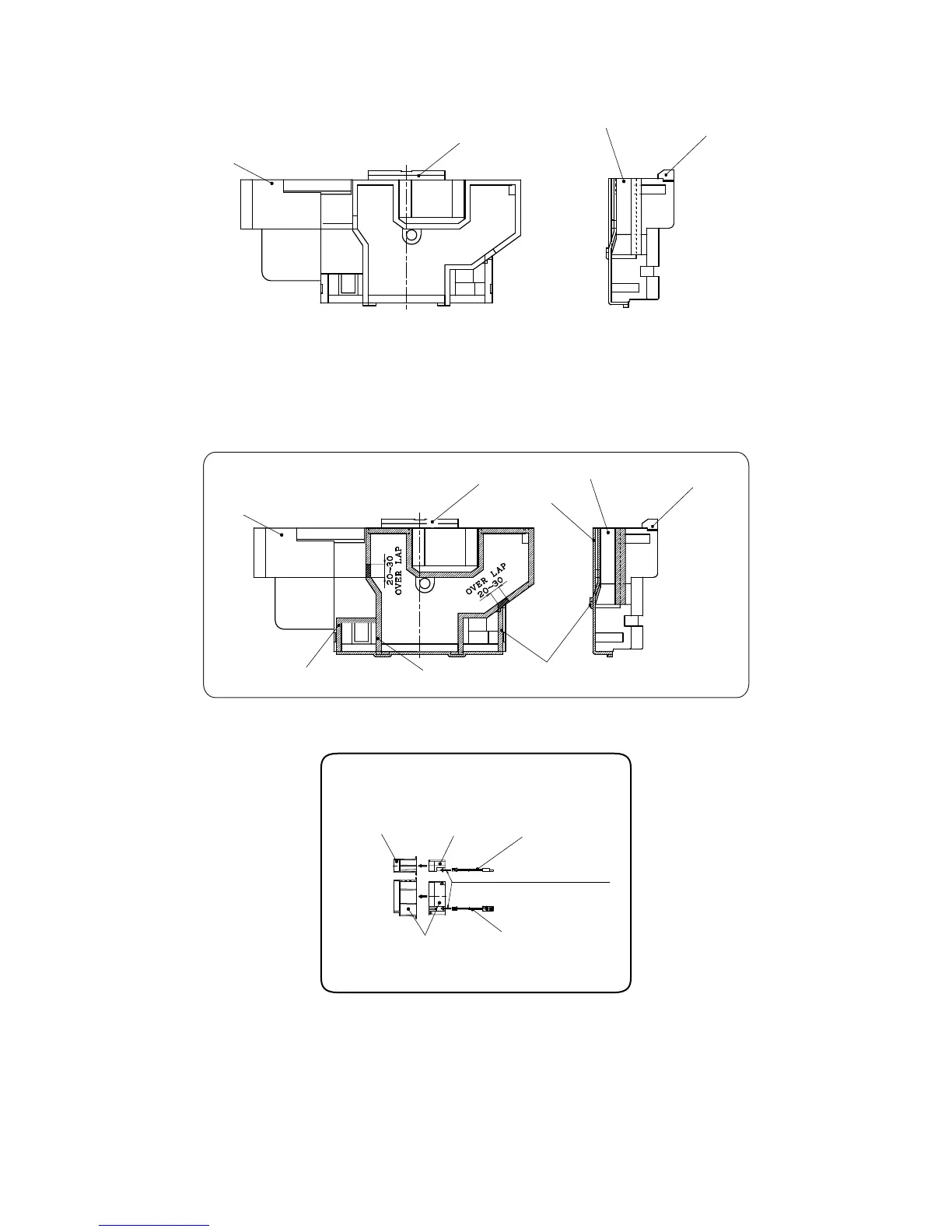

1) Insert R air guider b to R air guider a (Figure A-7)
Figure A-7
2) Fix 1) ass'y with paper tape (Figure A-8)
3) Stick Ra-sealer a to 2) ass'y
4) Stick Ra-sealer b to 2) ass'y
5) Connect Ionizer-k and connector of Plasma harness (Figure A-9)
Figure A-8
Figure A-9
R air guider a
R air guider b
R air guider b
R air guider a
R air guider b
R air guider a
R air guider b
R air guider a
R air sealer b
R air guider a
R air sealer a
R air sealer b
Ionizer-k
Ionizer-k
Ionizer-k
Plasma harness
Plasma harness
Connect IONIZER-K and
connector of PLASMA HARNESS
Connect should be inserted surely.
