SJPT55RHS
9 – 8

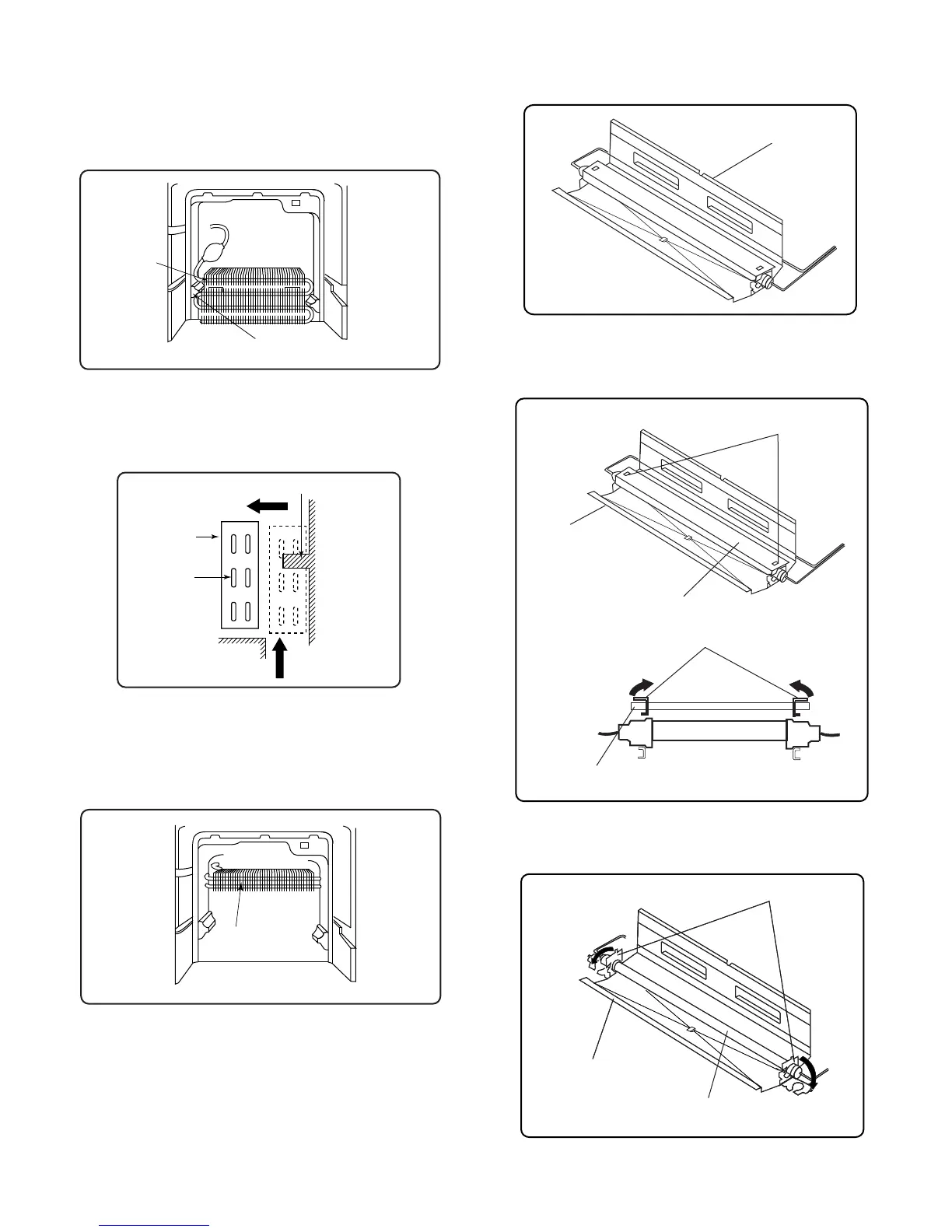

[5] DEFROST HEATER ASSEMBLY
1. Taking-out Evaporator
1. Take-out Fan louver.
2. Take-out E.V cover ass’y.
Figure A-20
3. As shown in Figure A-20, pull the upper part of Evaporator toward
you, pull it diagonally so that the pipe of Evaporator does not con-
tact the convex part of food liner.
Figure A-21
4. Pull the Evaporator for remove as shown in Figure-21.
NOTE: When pulling Evaporator and bending the pipes,pay attention
so as not to break and deform the pipes. Still, take care not to
hurt yourself by fin of Evaporator.
Figure A-22
2. Replacement of Def. heater ass’y.
1. Take off the Drain support al from the food liner.
Figure A-23
2. Raise the protrusion part of Drain support al.
Then remove Heater cover.
Figure A-24
3. Open Def.heater fixed part of Drain support al to the right and left,
then remove Def.heater ass’y.
Figure A-25
To Next Page
