4. Replace Def. heater ass’y with new one.

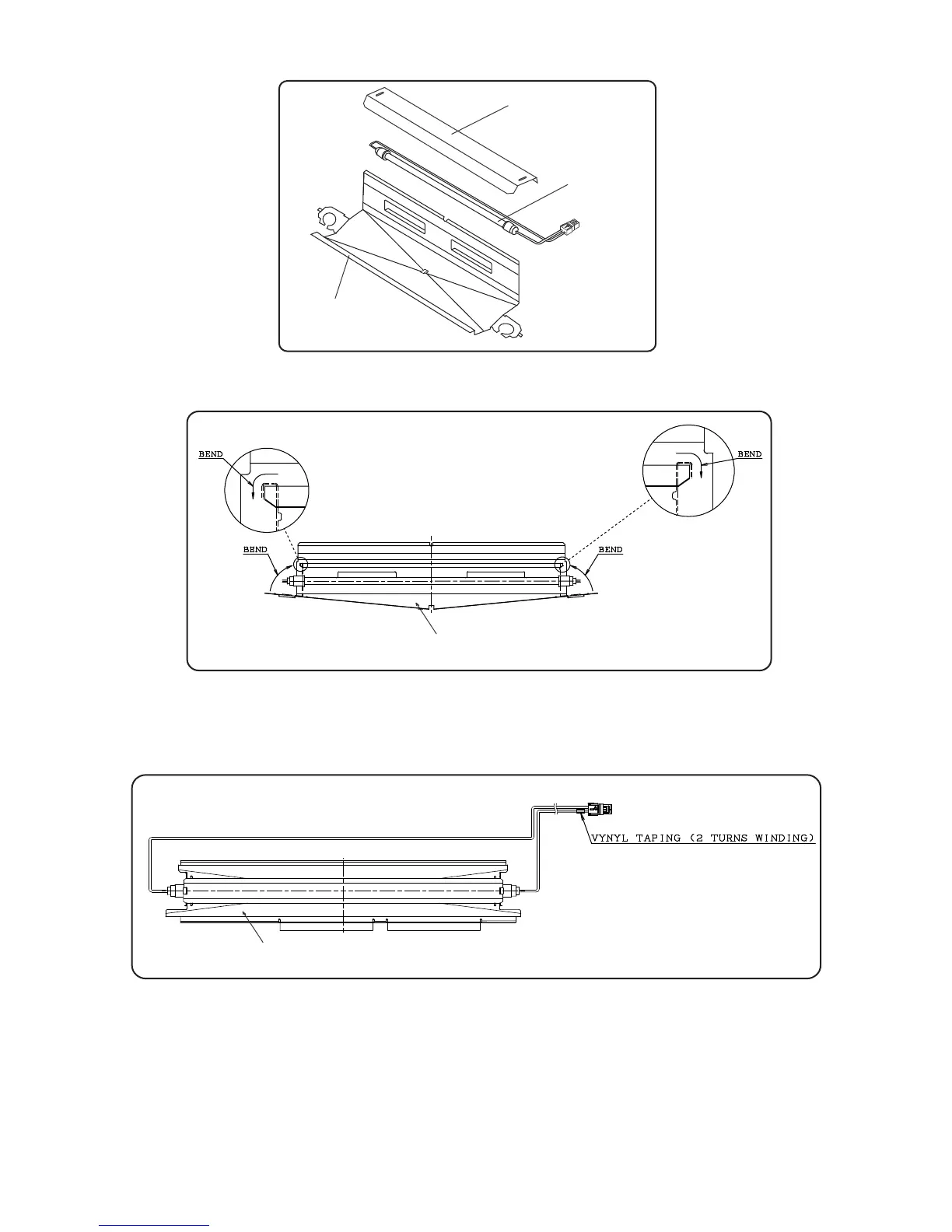

Figure A-26
5. Bend the end of Drain support 90°.
Figure A-27
6. Aseemble Defrost heater to Drain support al.
7. Assemble Heater cover to Drain support al. Bend top edge to outside.
8. Stick the Vinyl tape on the Lead wire of Defrost heater ass'y.
Figure A-28
3. Installing of Evaporator
1. Install Evaporator as shown in the Figure A-20 in the reverse order of Figure A-21
2. Correct the defromed fin.
NOTE: 1. When installing Evaporator, take care not to deform significantly and break the pipes.
2. Take care not to damage the lead wires and hurt yourself by the fin of Evaporator.
3. You shouldn’t touch Defrost heater with your bare hand. (You should wear pure gloves.)
4. You should wipe that with alcohol. When you touch Defrost heater with your bare hand.
