Fruit case ass'y7)
<Components>
Fruit case
K handle base
K handle arm
K handle cover
K handle cover label
K handle support
K lock rever
K lock spring
K handle
Lock unit

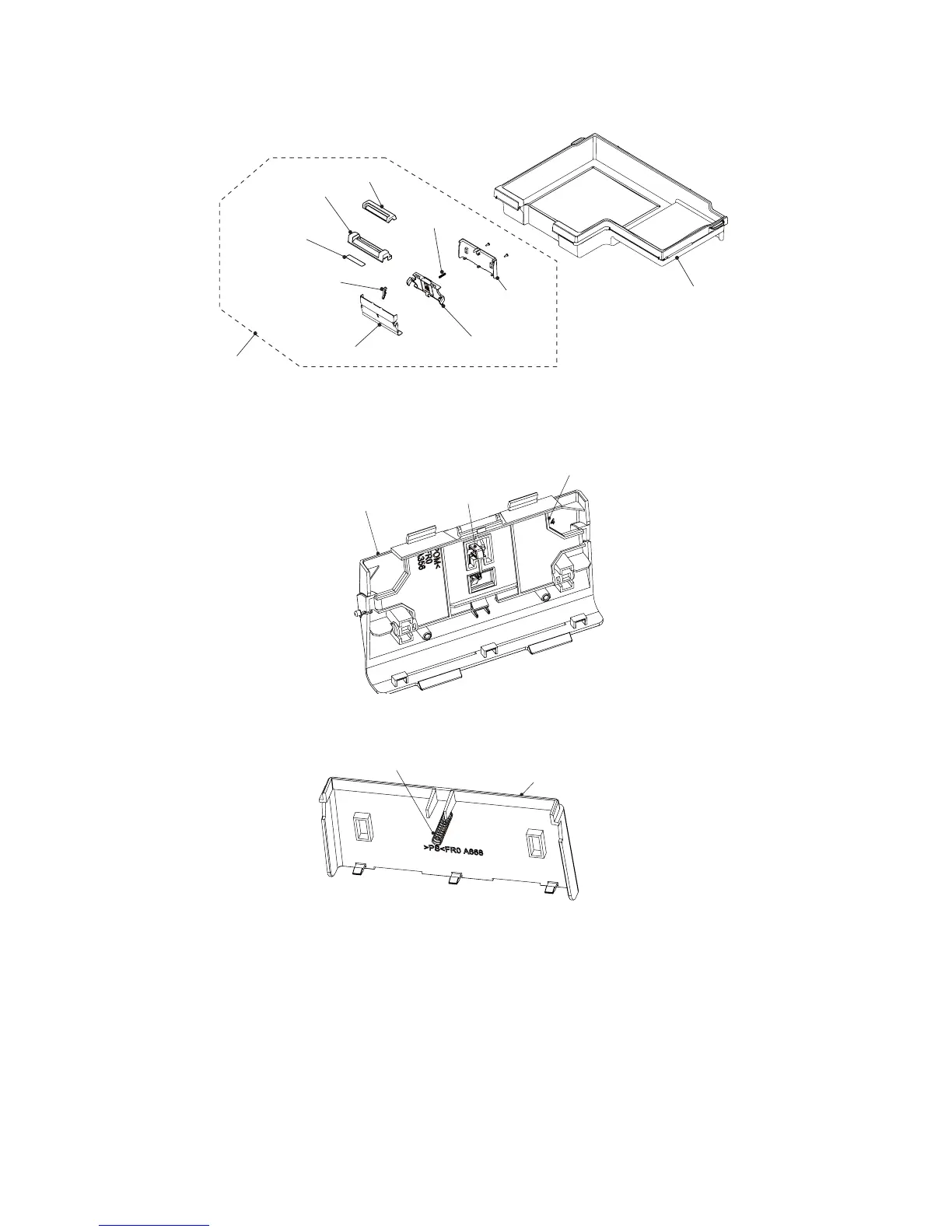

<Assembling procedure>
Install the K handle arm and K lock rever to the K handle base.1.
K handle base
K lock rever
K handle arm
Install the K lock spring to the K handle support.2.
K lock spring
K handle support
