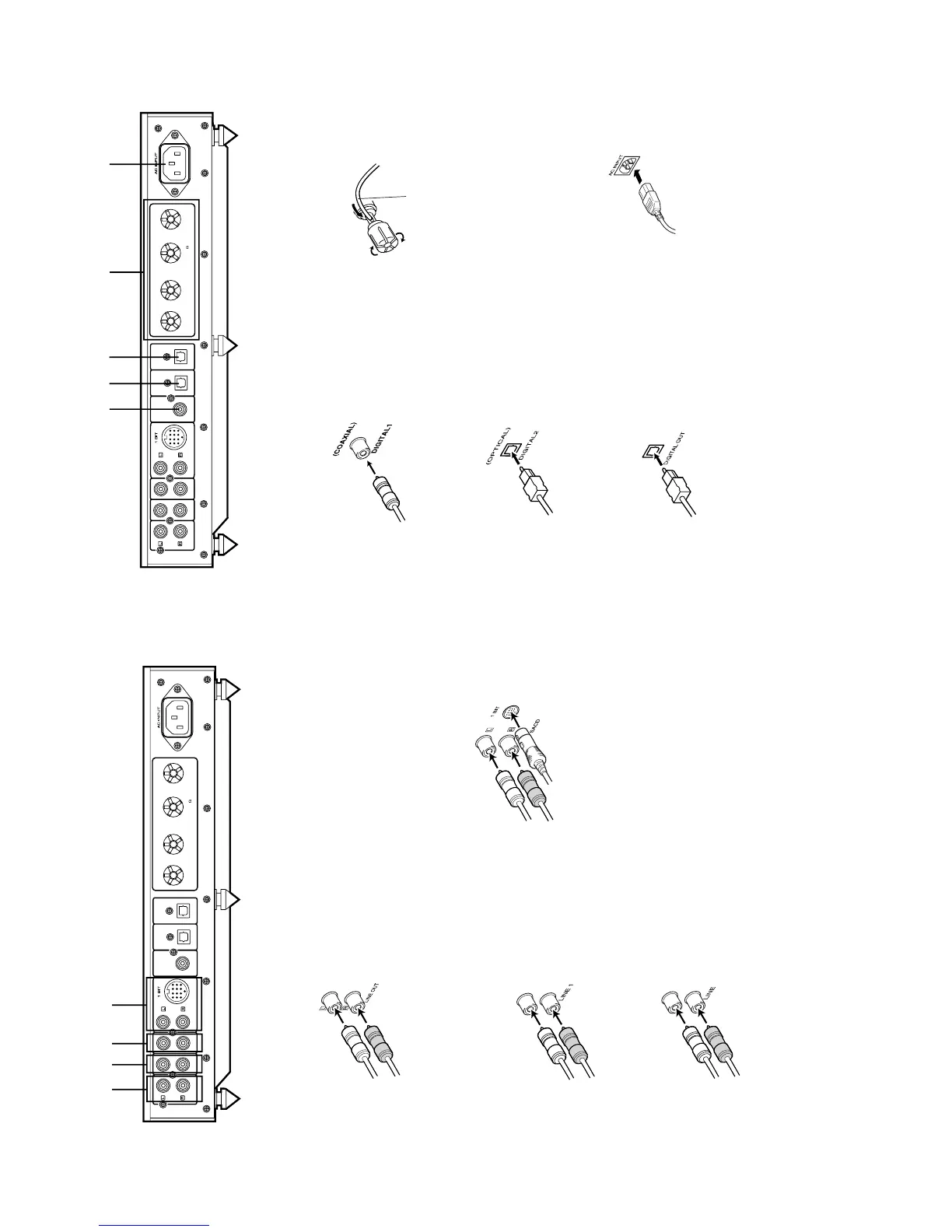

7 Digital Output Terminal (OPTICAL)
Connect equipment using a square type
optical digital cable.
(OPTICAL)
78 9
LINE 1
LINE 2
SACD
LINE OUT
(COAXIAL)
DIGITAL 1
DIGITAL 2
DIGITAL OUT
(OPTICAL)
(OPTICAL)
RIGHT
+
-
RATED IMPEDANCE : 8
SPEAKERS
LEFT
+
-
65
5 Digital 1 Input Terminal (COAXIAL) *
Connect equipment using RCA coaxial
cable.
6 Digital 2 Input Terminal (OPTICAL) *
Connect equipment using the square type
optical digital cable.
This terminal send signals of the external
equipment connected to the DIGITAL 1 or 2
terminal.
* For digital input to this product, use
equipment which adapts to the digital
audio interface.
(32kHz, 44.1kHz, 48kHz)
8 Speaker Output Terminals
Plug the speaker cord in firmly and be care-
ful that the end of the cord does not touch
the next terminal or speaker cord, as this
could cause damage to the amplifier.
Use a speaker system which has 50 W or
more rated power input and 8 ohms im-
pedance.
If the volume is turned up too high with the
speakers of less than 8 ohms impedance con-
nected, the protection circuit of the amplifier
activates. Nothing is heard temporarily.
9 AC Input Jack
Connect the power cord to the AC INPUT
jack.
Speaker cord
2 Line 1 Input Terminals
Connect equipment using RCA cords.
3 Line 2 Input Terminals
Connect equipment using RCA cords.
1 Line Output Terminals
Connect equipment using RCA cords.
4 SACD/1-bit Signal Input Terminals
Connect the super audio CD player using
RCA cords or the 1-bit signal cable included
with your Sharp SACD player.
When both the RCA cords and the 1-bit
signal cable are connected, signals from
the latter have priority.
When nothing is connected to the 1 BIT in-
put terminal, signals from the RCA cords are
used.
(If you use the 1 BIT input terminal, refer to
the operation manual for the super audio CD
player.)
These terminals send signals of the external
equipment connected to the RCA (of the
SACD), LINE 1 or LINE 2 terminal.
12 4
3
LINE 1
LINE 2
SACD
LINE OUT
(COAXIAL)
DIGITAL 1
DIGITAL 2
DIGITAL OUT
(OPTICAL)
(OPTICAL)
RIGHT
+
-
LEFT
+
-
RATED IMPEDANCE : 8
SPEAKERS
2
