NOISE FILTER BOARD REPLACEMENT
1. Un-hook the black and white AC terminals from the Noise Filter PWB, plus the Red and double White terminals
(Fig 4).
2. Remove the (1) screw holding the Noise Filter (Fig 4).

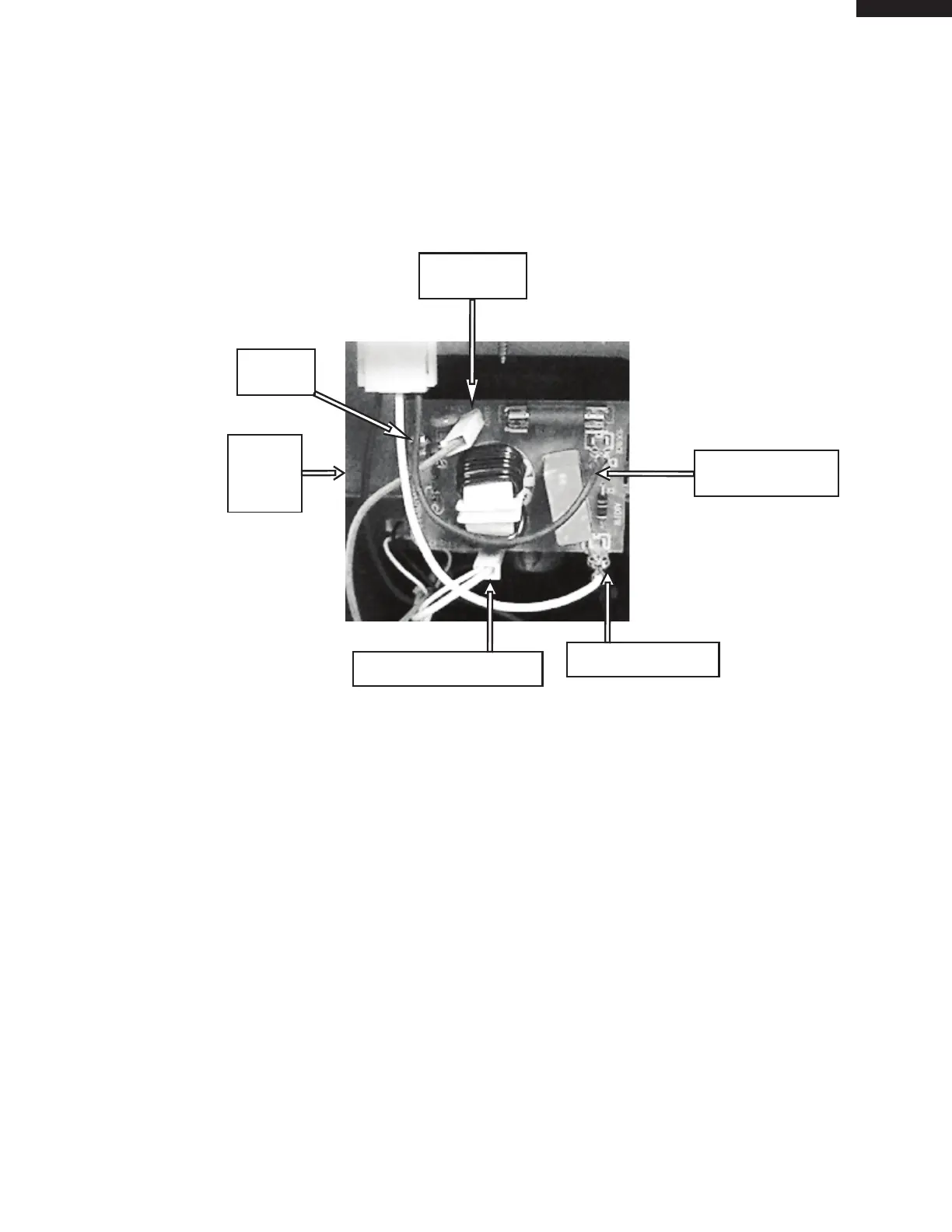

Fig. 4
3. Reverse order to reinstall.
Noise
Filter
Unit
Red Wire
Double White Wire
White AC Wire
Black AC Wire
Screw
