Sharp SMO1854DS Service Manual

10
CABINET AS
GRILLE AIR
PROTECTOR WIRE
PLATE *B AS
COVER MOTOR CONDENSOR

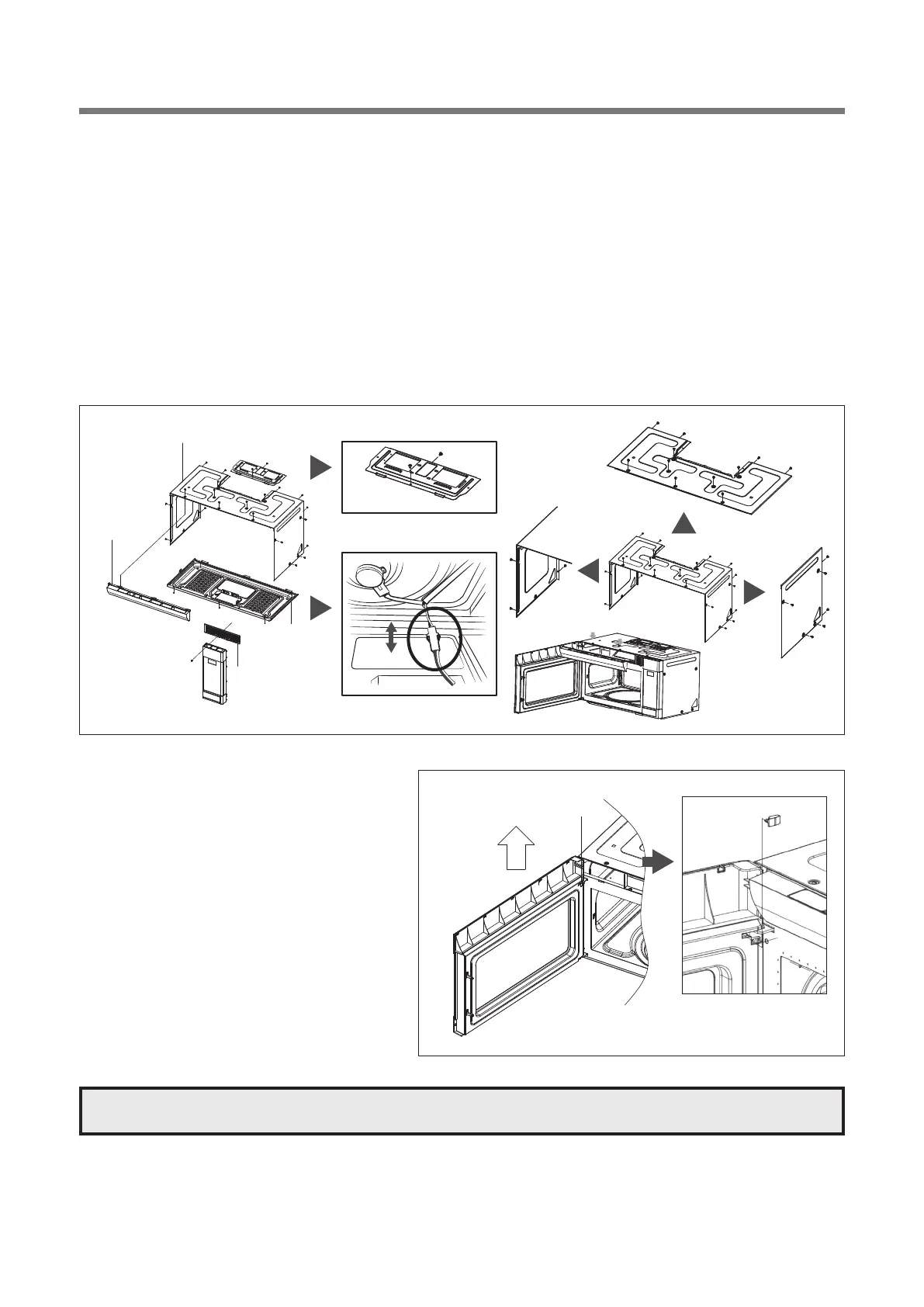

1. To remove cabinet and plate *b assembly
1) Remove the microwave oven from its mounting location and set it on a protected (padded) work surface.
2) Remove the 3 screws from the top of the microwave oven that secure the vent grille to the oven, and pull the top of
the vent grille out so the tabs are from their slots, and remove it.
3) Remove 2 screws from the cover motor condensor.
4) Remove the remaining 17 screws from the top side and rear of the cabinet.
Slide the cabinet back and unhook it from the side tabs, then slide the power cord into the cabinet, and lift the cabinet
off the oven.
5) Remove the 3 screws from the bottom of the microwave oven that secure the plate *b assembly to the oven, and
disconnect housing of cooktop light, and remove plate *b assembly.
Proceed to the section for the component you wish to service.
2. To remove door assembly
1) Open the door and remove the stopper door.
2) Lift the door and remove it.
CABINET AS
GRILLE AIR
PROTECTOR WIRE
PLATE *B AS
COVER MOTOR CONDENSOR
STOPPER DOOR
NOTE : After replacing the door assembly, perform a check of correct alignment with the hinge and cavity front plate.

Sharp SMO1854DS Specifications

General

Style	over the range
Color	stainless steel
Total Capacity	1.8 cu. ft.
Convection	no
Power Levels	10
Fan Speeds	3
Venting Type	non ducted
Sensor Cooking	yes
Quick Start	yes (1-6 minutes)
Control Type	touch control
Child Lock	yes
Timer	yes
Interior Light	led; yes
Microwave Power	1, 100 watts

Weight and Dimensions

Depth	15 9/10 inch
Height	16 3/10 inch
Width	29 9/10 inch
