Sharp SMO1854DS Service Manual

14

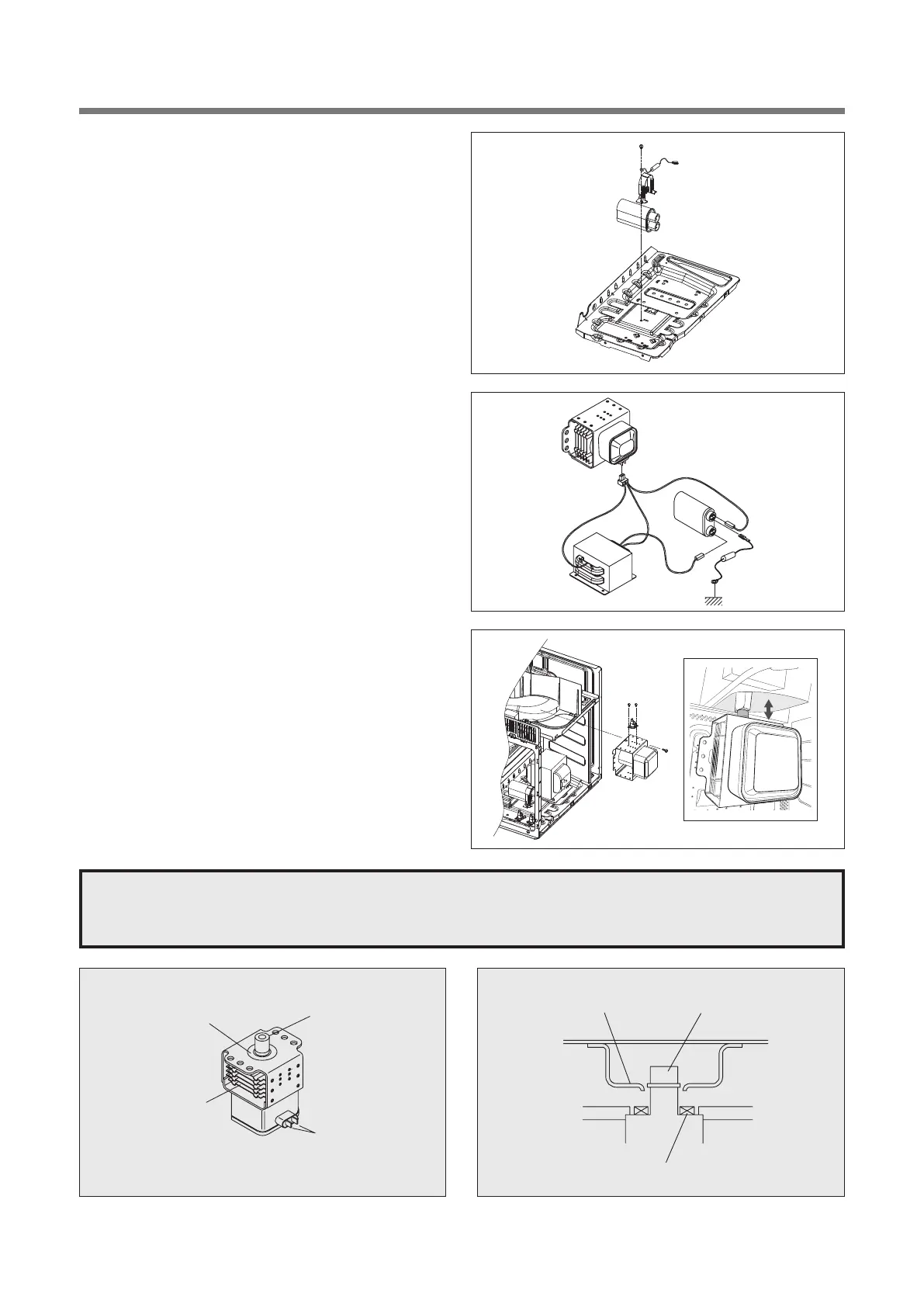

7. To remove high voltage capacitor.
1) Remove the screw which secure the grounding ring
terminal of the H.V. diode and the capacitor holder.
2) Remove the H.V. diode from the capacitor holder.
3) Reverse the above steps for reassembly.
 High voltage circuit wiring
8. To remove magnetron.
1) Pull out two terminals from the thermostat of
magnetron.
2) Remove a screw which secure the magnetron.
3) Remove the magnetron.
4) Remove the screws which secure the thermostat.
4) Reverse the above steps for reassembly.
Metallic
gasket
plate
Magnetron
antenna
Cooling fin
Filament
terminal
<MAGNETRON>
Wave guide Magnetron antenna
Metallic
g
asket plate
Metallic
gasket
plate
Magnetron
antenna
Cooling fin
Filament
terminal
<MAGNETRON>
NOTE : Never install the magnetron without the metallic gasket plate which is packed with each magnetron to prevent
microwave leakage. Whenever repair work is carried out on magnetron, check the microwave leakage. It shall
not exceed 4mW/cm² for a fully assembled oven with door normally closed.

Sharp SMO1854DS Specifications

General

Style	over the range
Color	stainless steel
Total Capacity	1.8 cu. ft.
Convection	no
Power Levels	10
Fan Speeds	3
Venting Type	non ducted
Sensor Cooking	yes
Quick Start	yes (1-6 minutes)
Control Type	touch control
Child Lock	yes
Timer	yes
Interior Light	led; yes
Microwave Power	1, 100 watts

Weight and Dimensions

Depth	15 9/10 inch
Height	16 3/10 inch
Width	29 9/10 inch
