Sharp SMO1854DS Service Manual

13

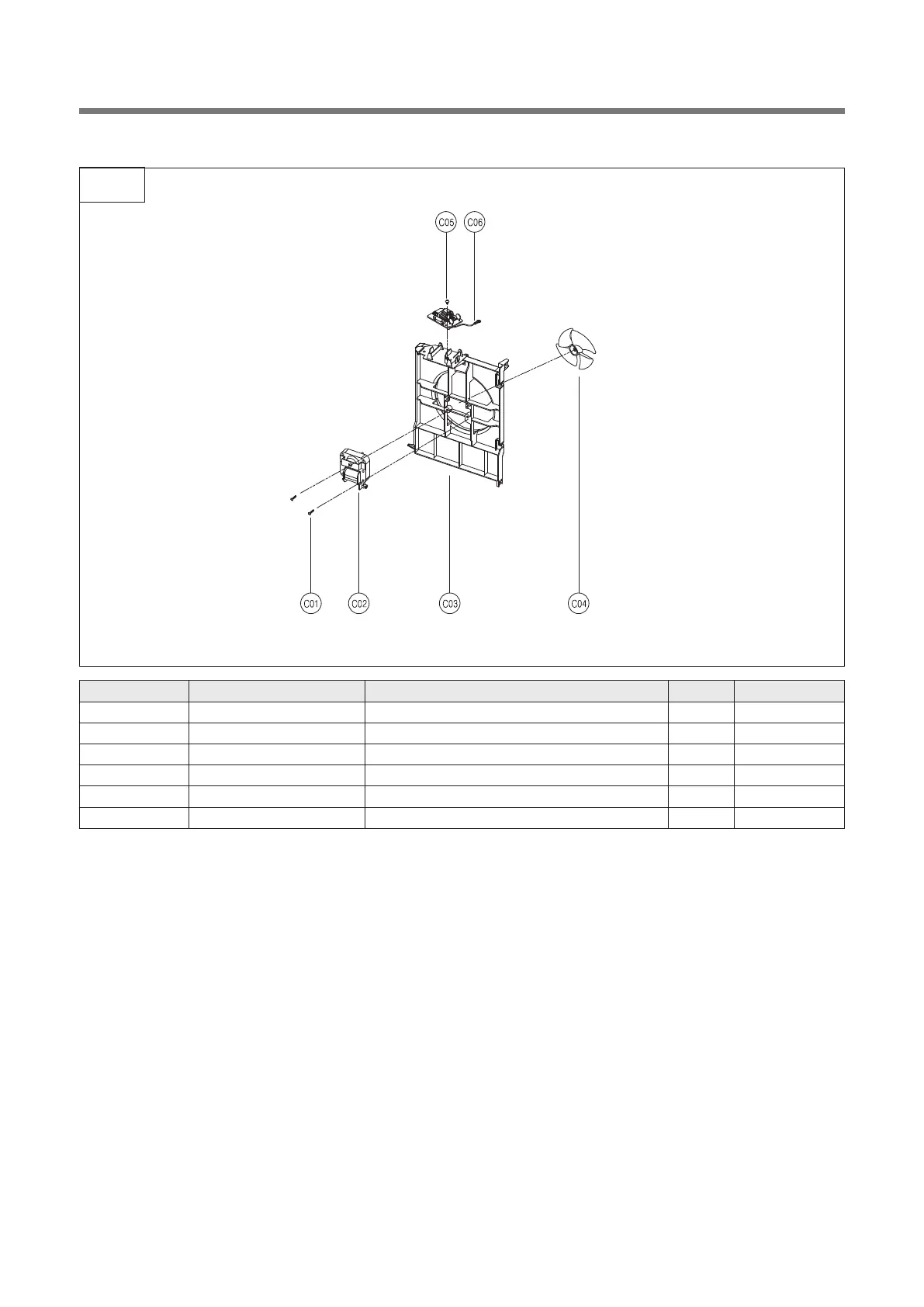

6. To remove guide wind parts.
C00
1) Remove 3 screws for grounding and for fixing to Oven cavity.
2) Remove the noise filter from the guide wind.
3) Pull the fan from the motor shaft.
4) Remove 2 screws which secure the motor shaded pole.
5) Remove the motor shaded pole.
6) Reverse the above steps for reassembly.
NO PART CODE PART NAME Q'TY REMARK
C01 9KC7121402511 SCREW TAPPING 2
C02 9KC3963822200 MOTOR SHADED POLE 1
C03 9KC35125-0024100 GUIDE WIND 1
C04 9KC3511800100 FAN 1
C05 9KC3518608000 NOISE-FILTER 1
C06 9KC7S312X40A1 SCREW SPECIAL 1

Sharp SMO1854DS Specifications

General

Style	over the range
Color	stainless steel
Total Capacity	1.8 cu. ft.
Convection	no
Power Levels	10
Fan Speeds	3
Venting Type	non ducted
Sensor Cooking	yes
Quick Start	yes (1-6 minutes)
Control Type	touch control
Child Lock	yes
Timer	yes
Interior Light	led; yes
Microwave Power	1, 100 watts

Weight and Dimensions

Depth	15 9/10 inch
Height	16 3/10 inch
Width	29 9/10 inch
