SSC3088AS
27

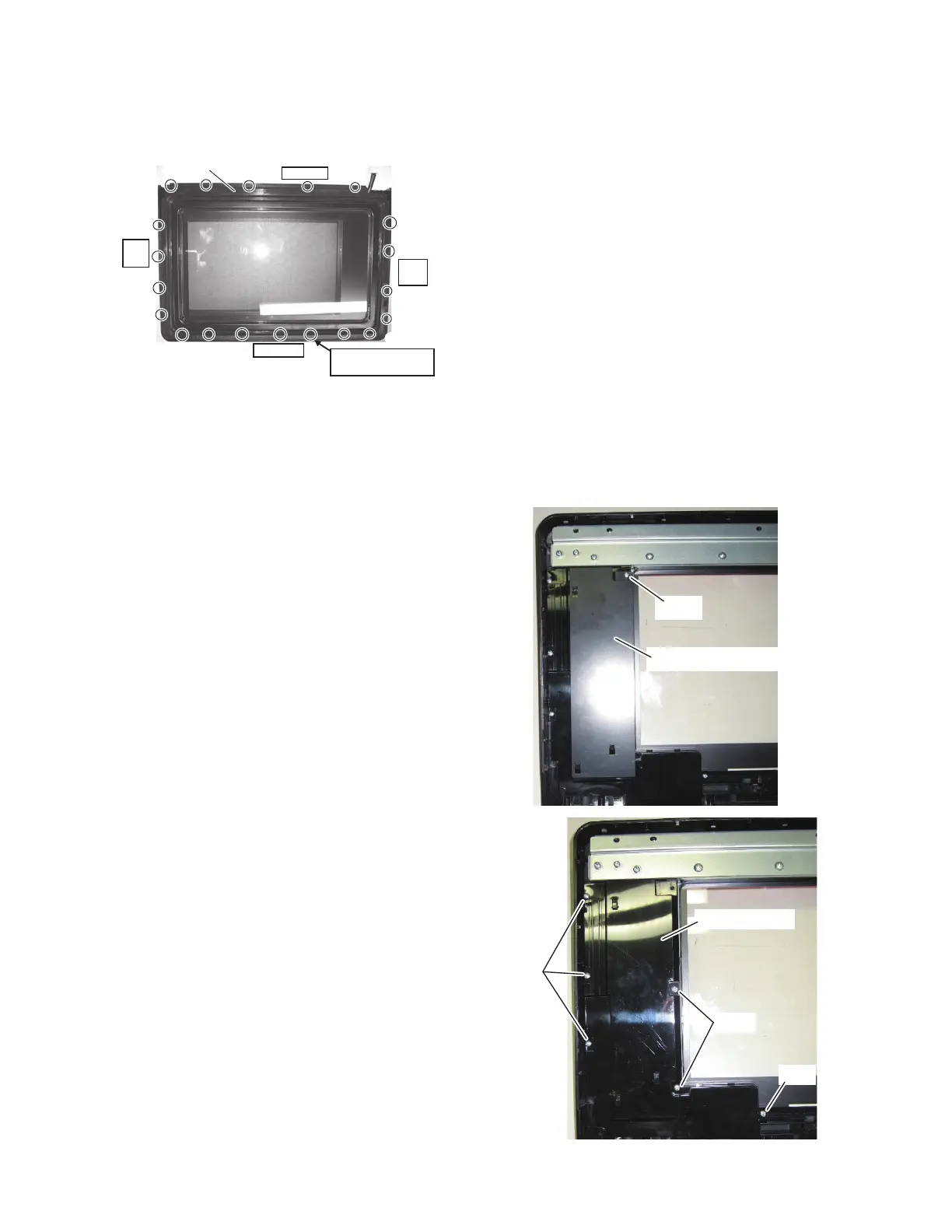

3. How to install the door cover
1) Secure the door packing to the door cover. (Refer to 2 stated
above)
2) Press the door cover into the door frame in the sequence of the
back side, the front left/right corners, the right side, the left side
and the front side and then fit it into the claws of the door frame.
④
Door cover
Back side
Front side
Right
side
Left
side
The circle mark is
the position of the claw
①
⑤
③
⑥
②
3) Press the whole periphery of the door cover again to confirm
that it is firmly secured.
4) Check whether the door packing comes off and whether the four
corners of the door packing are misplaced to ensure that it is
uniformly fit without loosening or pricking.
5) If any abnormality occurs to the door packing, remove the door
cover again and install the door packing again.
Note: 1) Assemble the door packing with the door frame after filling
the door packing into the whole periphery of the door
cover.
2) After the assembly, press the whole periphery so that the
door packing is fit uniformly without any projection.
3) Take care not to damage the surface.
4) After the assembly, confirm that there is no electric wave
leakage or steam leakage from the door.
5) When using a new door cover, apply soapy water onto
the whole internal periphery of the door packing and
then insert it into the door frame. If the soapy water is
not applied, the door cover may crack sometimes
.
[10]
Door panel DK, handle, F finder glass
1. How to remove the door panel DK
1) Remove the door assembly from the main body of the product. [8]
Reference
2) Remove the door cover from the door frame. [9] Reference
3) Remove the door panel DK from the door frame. (6 screws)
Note: Take care not to leave fingerprint or dirt on the punching area
inside the door panel DK or on the inside of the F finder glass.
2. How to remove the handle
1) Remove the door panel from the door frame. (Refer to "1. How to
remove the door panel DK")
2) Remove the door reinforcing AG from the door frame. (10 screws)
3) Remove the handle (glass stopper attached) from the door frame.
4) Remove the glass stopper from the handle.
(4 screws)
3. How to remove the F finder glass
1) Remove the handle (glass stopper attached) from the door frame. (
Refer to "2. How to remove the handle")
2) Remove the glass bottom AG. (6 screws)
3) Remove the F finder glass from the frame.
Note: Be careful because the F finder glass is fixed into the door frame
on the lower right with double sided adhesive tape in front
view.
4. Installation steps of the F finder glass
Fit the F finder glass while the door decoration, the door sheet and the
panel DEC ASSY are adhered to the door frame.
1) Align the lower edge of the F finder glass to the rib of the door
frame and align the right edge to the left edge of the panel DEC
ASSY. Attach it onto the door frame. (Fixed with double sided ad-
hesive tape).
2) Install the glass bottom AG into the door frame. (6 screws)
3) Fit the handle (glass stopper attached) into the door frame. Turn
the door frame over while supporting the handle and the F finder
glass so that they would not fall.
4) Install the door reinforcing AG. Tighten the screws from the center
(10 screws).
[11] DC fan motor (door)
[FOR REFERENCE ONLY NON-REPLACABLE]
1. Remove the door assembly. [8] Reference
2. Remove the door cover. [9] Reference
3. Remove the door panel DK. [10] Reference
4. Remove the PWB heat insulating plate. (1 screws)
Screw
PWB heat insulating board
Air supply duct
Screw
Screw
Screw
To Next Page
