SSC3088AS
26
Note: When hooking the R door cam and the L door cam onto the
pin of the door panel DK, twist the pin to check whether the
tip hook part is properly inserted.

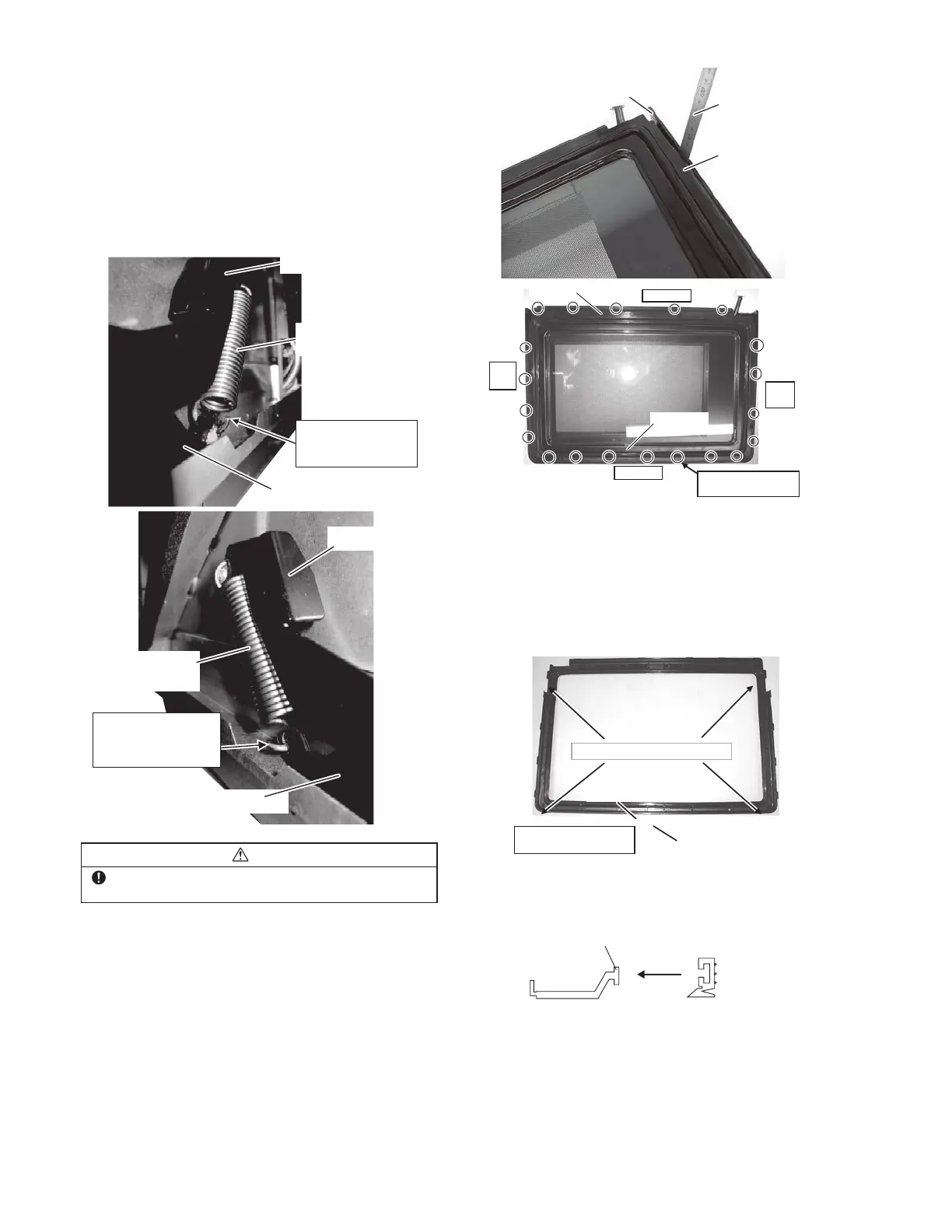

1. With the door closed, fit the door SPR to the R door cam and the R
hinge K as well as the L door cam and the L hinge K respectively.
Note: Please fit the green door SPR to the right side and fit the
blue door SPR to the left side. Then, attach the downside
ends of the door SPR facing the cabinet side respectively.
Sometimes the door SPR might be broken and damaged if
the left side and the right side are mixed up or the installa-
tion direction is mistaken.
R door cam
Door SPR (right)
(green)
R hinge K
The downside edge of
the door SPR is installed
facing the cabinet side.
L door cam
Door SPR (left)
(blue)
The downside edge of the
door SPR is installed
facing the cabinet side.
L hinge K
Note:
Be sure to conduct latch adjustment. (Possibility of malfunc-
tion)
[9] Door cover and door packing
1. How to remove door cover
1) Insert a carpenter's square between the door cover and the door
frame. While remove the claws in the sequence of the right side
(4 claws), the front side (7 claws) and the left side (4 claws),
slightly lift up the door cover where the claws are removed.
Door frame
Carpenter’s
square
Door cover
Door cover
Back side
Front side
Right
side
Left
side
Door packing
The circle mark is
the position of the claw
2) Lift the door cover up while pulling it toward you and remove
the claws (5x) on the back side.
Reference: If it is difficult to remove the claws on the back side, please
first remove the door packing.
3) Remove the door packing from the door cover.
2. How to install the door packing
1) Align the four corners of the door packing with the four corners
of the door cover.
Adjust and match the four angles
Door packing
A photograph taken from
the back of the door cover
Door cover
2) Fit the four corners of the door packing into the four corners of the
door cover. The cross-section shape where the door packing is fit
into the door cover becomes T-shape, cover the part with the door
packing.
T-shaped cavity
T-shape
Cross section of
the door cover
Cross section of
the door packing
3) Next, install the straight line part and then the whole periphery
firmly.
4) Check both the outside and the inside of the door cover to see
whether any part of the door packing is loosened, whether the
four corners of the door packing are aligned to the four corners
of the door cover and whether the door packing is uniformly
filled into the whole periphery of the door cover without loosen
ing or stretching.
To Next Page
