Sharp SuperSteam Plus SSC3088AS User Manual

SSC3088AS
28

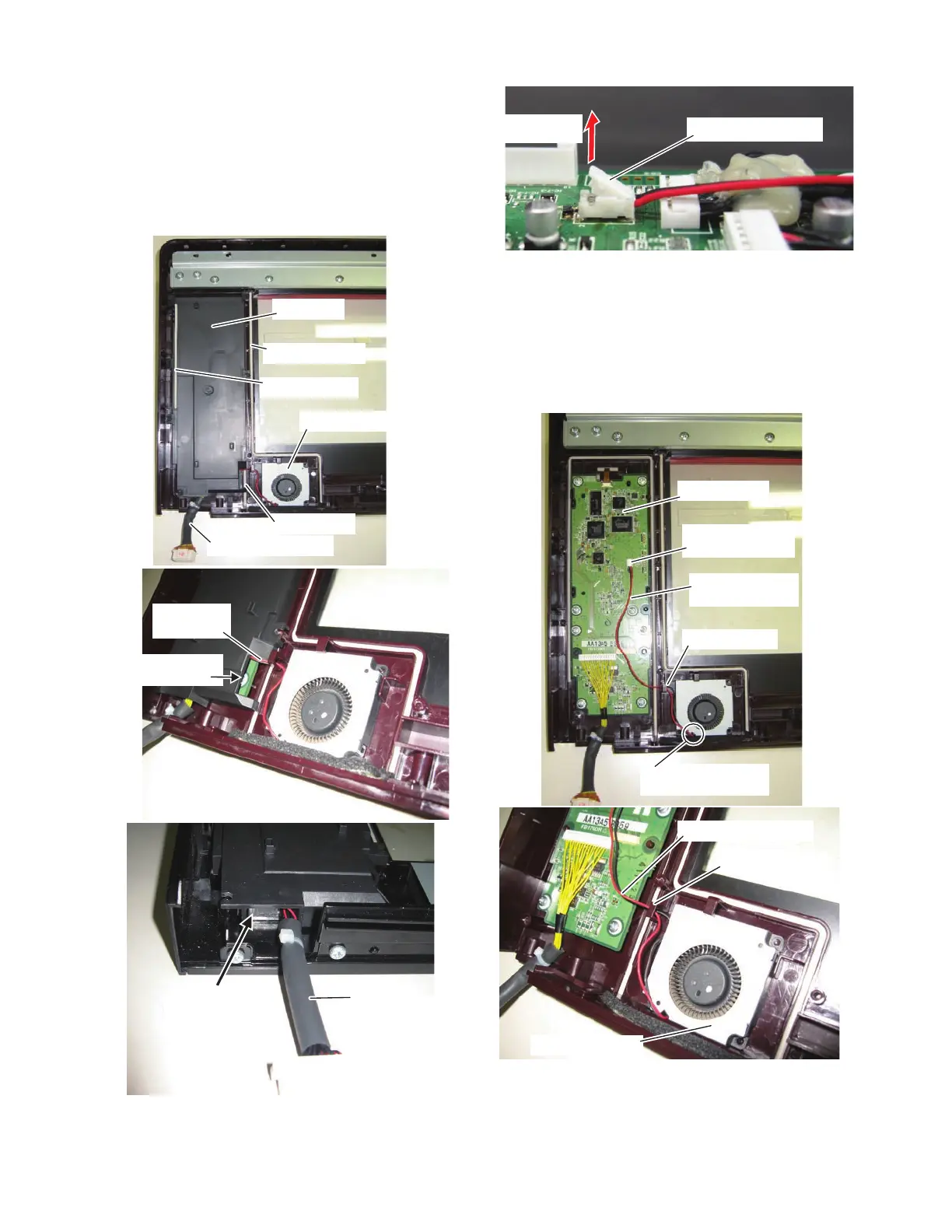

1. Remove the air supply duct. (6 screws)
2. Remove the display board cover.
Note: When installing the
display
board cover, please pay attention
to the following three points.
● The board packings A, B and C are installed.
●
The lead wire of the DC fan motor (door) goes through the
opening of the
display
board cover.
●
The harness of the display board goes through the open-
ing of the v board cover.
Display Board
DC fan motor (door)
Display Board harness
Board packing C
Board packing A
Board packing B
Lead line of DC
fan motor (door)
Opening of SW
board cover
Harness
of display
board
Opening of SW
board cover
3. Remove the connector of the DC fan motor (door) from the display
board.
Note: It will be removed once the end of the connector is lifted up.
Connector of the DC fan motor
If this end is raised,
it will be removed.
4. Remove the DC fan motor (door) from the door frame.
Precautions on installation of DC fan motor (door)
When installing the DC fan motor, please pay attention to the following three
points.
● Install it in the direction where the outgoing position of the lead wire of the DC
fan motor (door) faces the lower left.
● Pass the lead wire of the DC fan motor (door) through the hooks of the frame.
● When installing the SW board cover, avoid clamping the lead wire of the DC fan
motor (door).
Display board
Connector of DC fan
motor (door)
Lead line of DC
fan motor (door)
Hook of door frame
Outgoing posion of lead
line of DC motor (door)
Lead line of DC fan motor
Hook of door frame
DC fan motor (door)
[12] Display board
1. Remove the door assembly. [8] Reference
2. Remove the door cover. [9] Reference
