VL-AD260U
10

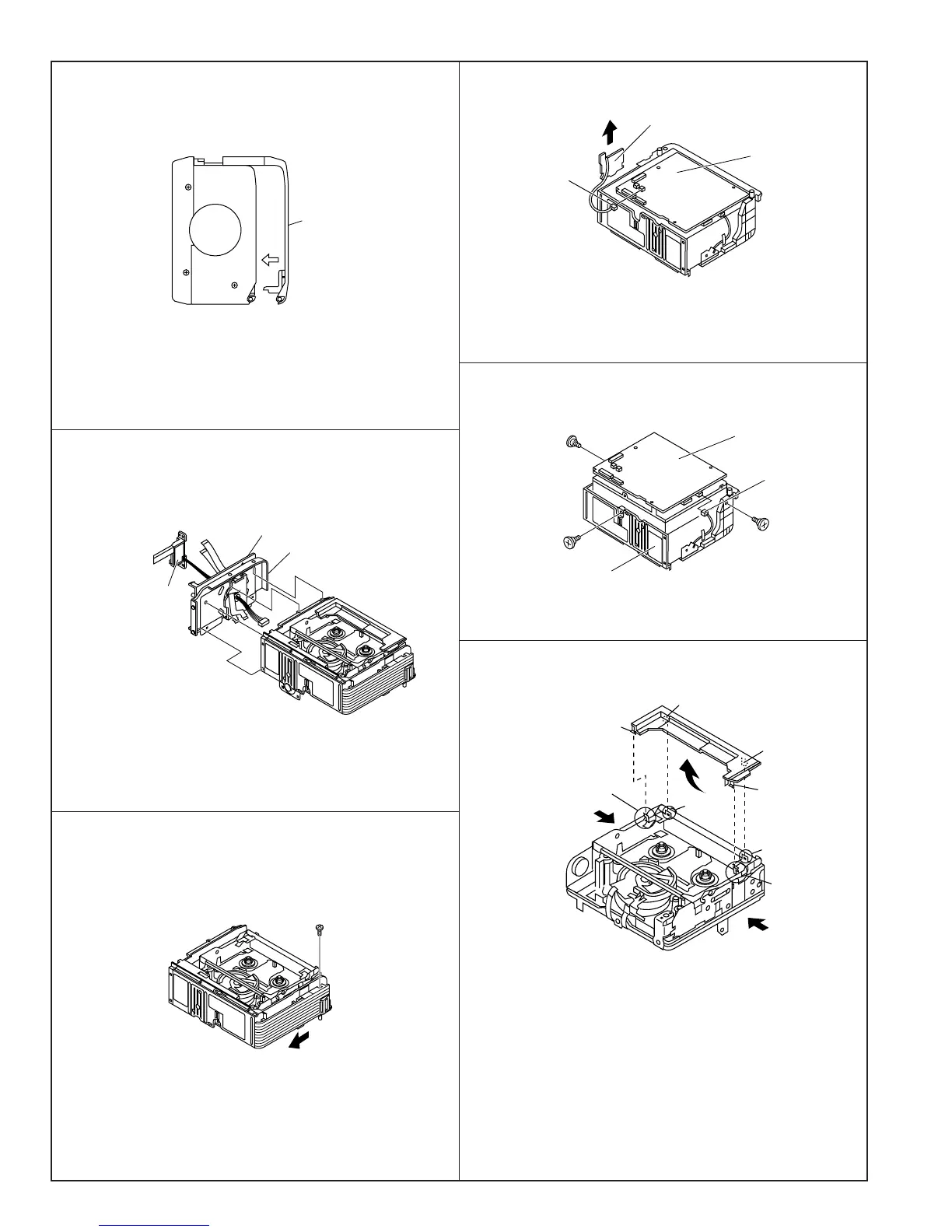

<8. Removal of the Lithium PWB>
<7. Removal of the speaker cover>
<6. Removal of the tilt unit>
<9. Disassembly of the frame V>
<10. Removal of the cassette compartment lid>
(1) Using the slotted precision screwdriver, push and turn the
two claws (C and D) which fasten the cassette compartment
lid, and the cassette compartment lid will be removed from
the hook area of the cassette component.
(2) Turning the cassette compartment lid in the arrow direction,
lift it, and the claws A and B will be disengaged to remove the
cassette compartment lid.
Note:
Take care to prevent breaking the claws of the cassette com-
partment lid.
(1) Remove the screw ((b)LX-HZ0018TAFF) fixing the speaker
cover.
(2) Move the speaker holder in the direction of the arrow to
remove it.
(1) Remove three screws ((e)LX-BZ0191TAFD) and one con-
nector, and remove the frame V from the main body.
(1) Disconnect three connectors.
Remove the tilt unit from the cabinet of the main body.
(1) Remove the connector of the Lithium PWB from the Main
PWB.
(2) Move the lithium unit in the direction of the arrow.
Caution for installation of the VCR lid
When installing the VCR lid, move the VCR lid in the arrow
direction, keeping the VCR lid parallel to the main body as
shown above.
Main PWB
Connector
Lithium PWB
(e)
Mechanism unit
(e)
(e)
Frame V
Connector
A
D
C
E
F
B
B
C
A
D
(b)
Battery terminal
unit
Tilt frame V
Tilt frame C
VCR lid
To Next Page
