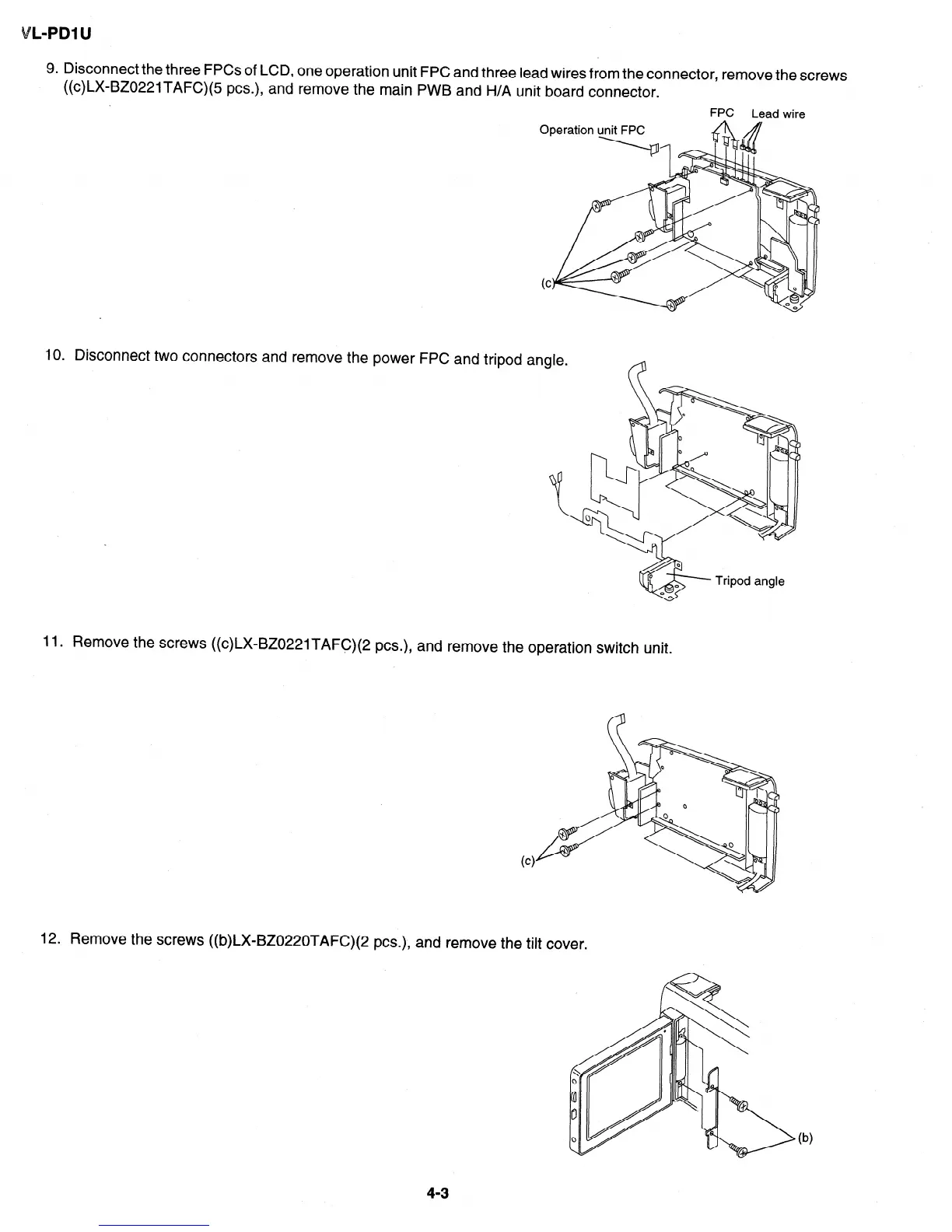

9. Disconnect the three FPCs of LCD, one operation unit FPC and three lead wires from the connector, remove the screws
((c)LX-BZOZ21TAFC)(5 PCS.), and remove the main PWB and H/A unit board connector.
FPC Lead wire
Operation
unit FPC
IO. Disconnect two connectors and remove the power FPC and tripod angle.
11. Remove the screws ((c)LX=BZ0221TAFC)(2 PCS.), and remove the operation switch unit.
12. Remove the screws ((b)LX=BZ0220TAFC)(2 PCS.), and remove the tilt cover.
