Sharp VZ-1550E(BK)

VZ-1550H/E
CP-1550E

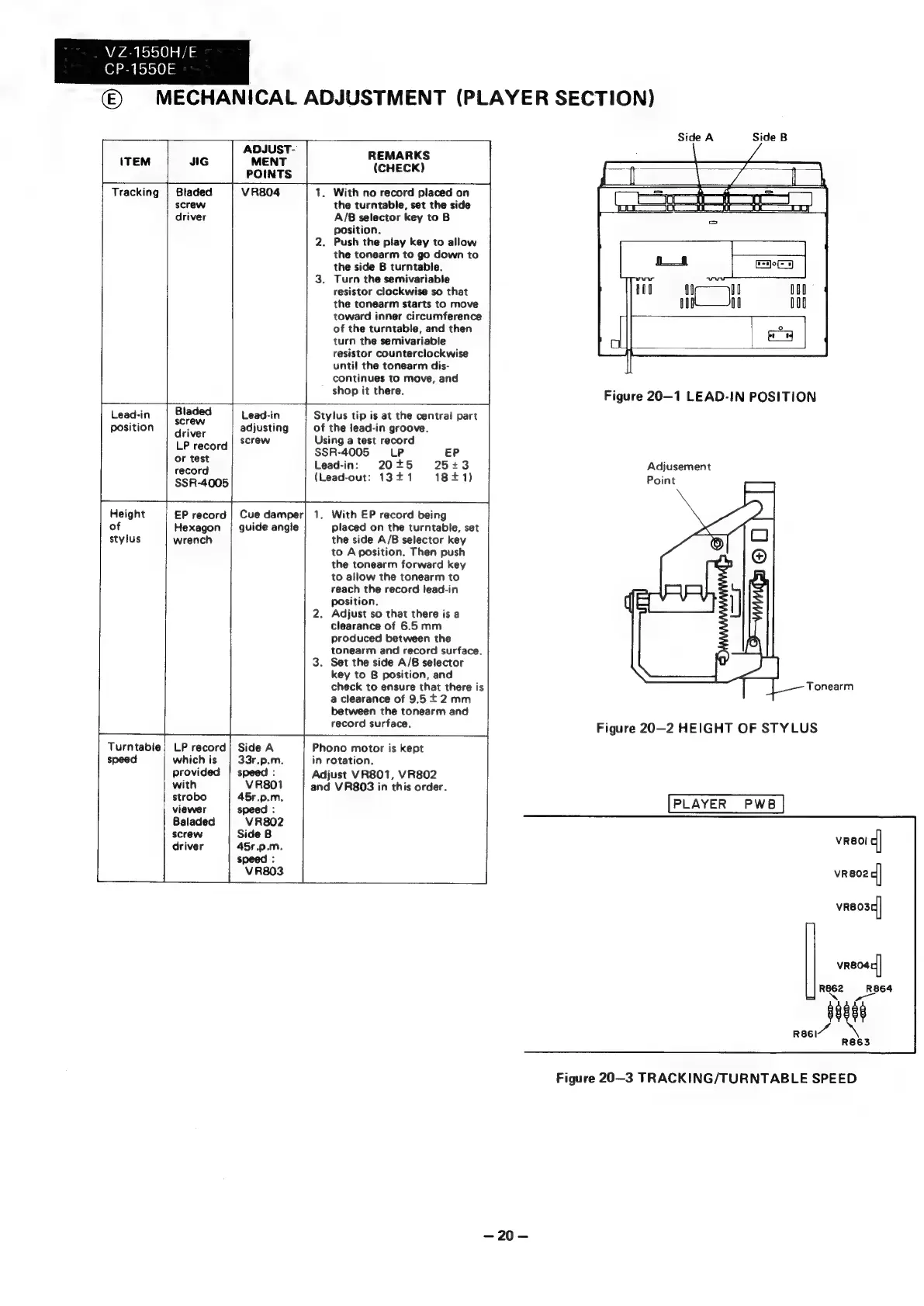

€) MECHANICAL ADJUSTMENT (PLAYER SECTION)
ADJUST-
ITEM JIG MENT NEHECKY.
POINTS
Tracking | Bladed 1. With no record placed on
screw the turntable, set the side
driver A/B selector key to B
position.
2. Push the play key to allow
the tonearm to go down to
the side B turntable.
3. Turn the semivariable
resistor clockwise so that
the tonearm starts to move
toward inner circumference
of the turntable, and then
turn the semivariable
resistor counterclockwise
until the tonearm dis-
continues to move, and
shop it there.
Lead-in | Biaded Lead-in Stylus tip is at the central part
position driver adjusting of the lead-in groove.
LP record | Screw Using a test record
or test SSR-4005 LP E
Lead-in: 2045 2
5
| record (Lead-out: 1341 18
Side A Side B
Figure 20—1 LEAD-IN POSITION
Adjusement
Point
++ “9
3
1)
SSR-4005
4
Height EP record | Cue damper] 1. With EP record being
of Hexagon { guide angie placed on the turntable, set
stylus wrench the side A/B selector key
to Aposition. Then push
the tonearm forward key
to allow the tonearm to
reach the record lead-in
position.
2. Adjust so that there is a
clearance of 6.5 mm
produced between the
tonearm and record surface.
3. Set the side A/B selector
key to B position, and
check to ensure that there is
a clearance of 9.5 +2 mm
between the tonearm and
record surface.
Tonearm
Figure 20—2 HEIGHT OF STYLUS
L
Turntable; LP record| Side A Phono motor is kept
speed which is 33r.p.m. in rotation.
provided | speed : Adjust VR801, VR802
a Pcbieeeth and VR803 in this order.
viewer speed : PLAYER PWB
Baladed VR802
screw Side B
driver 45r.p.m.
speed :
VR803
Figure 20-3 TRACKING/TURNTABLE SPEED
—20—
