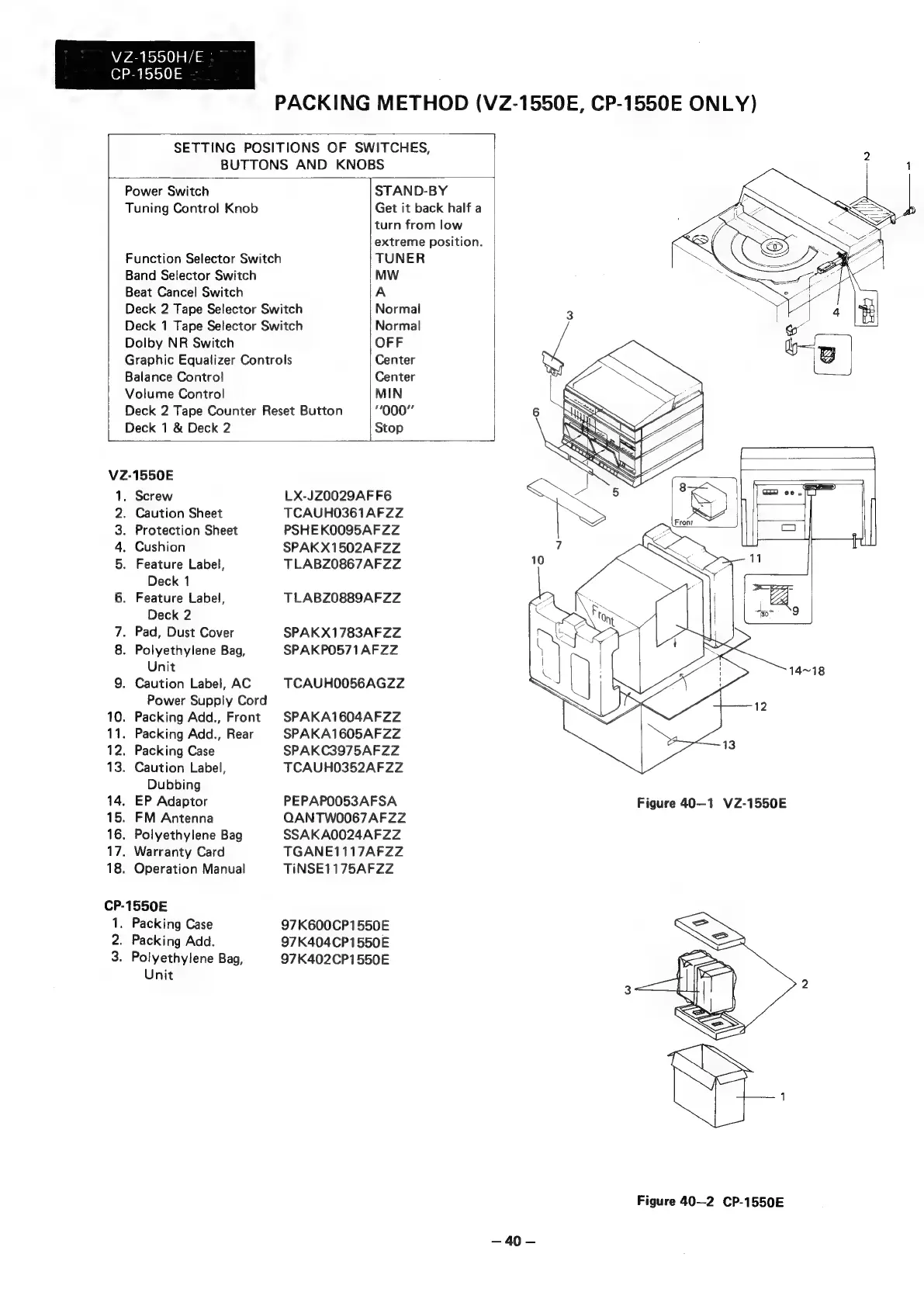

PACKING METHOD (VZ-1550E, CP-1550E ONLY)
SETTING POSITIONS OF SWITCHES,
BUTTONS AND KNOBS
Power Switch
Tuning Control Knob
Function Selector Switch
Band Selector Switch
Beat Cancel Switch
Deck 2 Tape Selector Swi
Deck 1 Tape Selector Swi
Dolby NR Switch
Graphic Equalizer Contro
Balance Control
Volume Control
Deck 2 Tape Counter Res
Deck 1 & Deck 2
STAND-BY
Get it back half a
turn from low
TUNER
| MW
A
tch Normal
tch Normal
OFF
Is Center
Center
MIN
et Button “000”’
Stop
extreme position.
VZ-1550E
. Screw
. Caution Sheet
. Protection Sheet
. Cushion
. Feature Label,
Deck 1
. Feature Label,
Deck 2
7. Pad, Dust Cover
8. Polyethylene Bag,
Unit
9. Caution Label, AC
Power Supply Cord
10. Packing Add., Front
11. Packing Add., Rear
12. Packing Case
13. Caution Label,
Dubbing
14. EP Adaptor
15. FM Antenna
16. Polyethylene Bag
17. Warranty Card
18. Operation Manual
arwWwn=—
a
CP-1550E
1. Packing Case
2. Packing Add.
3. Polyethylene Bag,
Unit
LX-JZO0029AF F6
TCAUH0361AFZZ
PSHE KOO95AF2ZZ
SPAKX1502AFZZ
TLABZ0867AFZZ
TLABZO889AFZZ
SPAKX1783AFZZ
SPAKP0571AFZZ
TCAUHOO056AGZZ
SPAKA1604AFZZ
SPAKA1605AFZZ
SPAKC3975AFZZ
TCAUHO352AFZZ
PEPAPOO53AFSA
QANTWO0067 AF ZZ
SSAKA0024AFZZ
TGANE1117AFZZ
TiINSE1175AFZZ
97K600CP1550E
97K404CP1550E
97K402CP1550E
—40—
Figure 40-1 VZ-1550E
Figure 40—2 CP-1550E
