Sharp VZ-1550H(BK)

VZ-1550H/E
CP-1550E
©

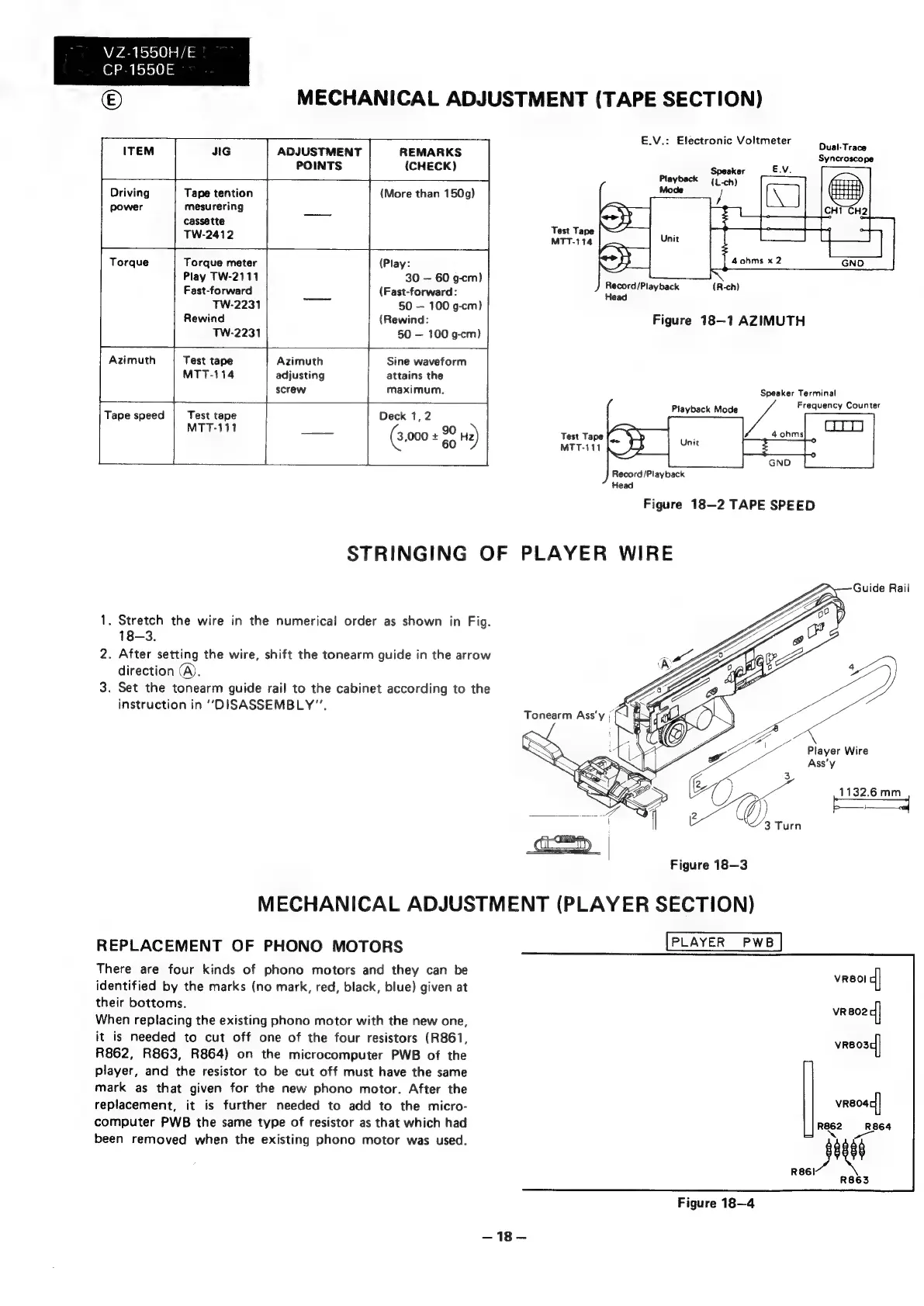

MECHANICAL
ADJUSTMENT
(TAPE
SECTION)
E.V.: Electronic Voltmeter
Dual-Trace
Syncroscope
ITEM JIG ADJUSTMENT REMARKS
POINTS (CHECK)
Speaker
Driving Tape tention (More than 150g)
power mesurering
cassette
Test
T
TW-2412 ae
Torque Torque meter (Play:
Play TW-2111 30 — 60 g-cm)
Fast-forward
(Fast-forward:
a
a
TW-2231 50 — 100 g-cm)}
Rewind (Rewind: Figure 18—1 AZIMUTH
TW-2231 50 — 100 g-cm)
la atl aie eee teas
Azimuth Test tape Azimuth Sine waveform
MTT-114 adjusting attains the
screw
maximum.
Speaker
Terminal
+ Playback Mode Frequency Counter
Tape speed Test tape Deck 1,2
MTT-111 ——= (3.000 + 90 H2) Test Tape
60 MTT-111
L _L
Record /Playback
Head
Figure 18-2 TAPE SPEED
STRINGING OF PLAYER WIRE
1. Stretch the wire in the numerical order as shown in Fig.
18-3.
2. After setting the wire, shift the tonearm guide in the arrow
direction (A).
3. Set the tonearm guide rail to the cabinet according to the
instruction in “DISASSEMBLY”.
Player Wire
Ass’y
1132.6 mm
|
Figure 18—3
MECHANICAL ADJUSTMENT (PLAYER SECTION)
REPLACEMENT OF PHONO MOTORS
There are four kinds of phono motors and they can be
identified by the marks (no mark, red, black, blue) given at
their bottoms.
When replacing the existing phono motor with the new one,
it is needed to cut off one of the four resistors (R861,
R862, R863, R864) on the microcomputer PWB of the
player, and the resistor to be cut off must have the same
mark as that given for the new phono motor. After the
replacement, it is further needed to add to the micro-
computer PWB the same type of resistor as that which had
been removed when the existing phono motor was used.
Figure 18-4
—18—
