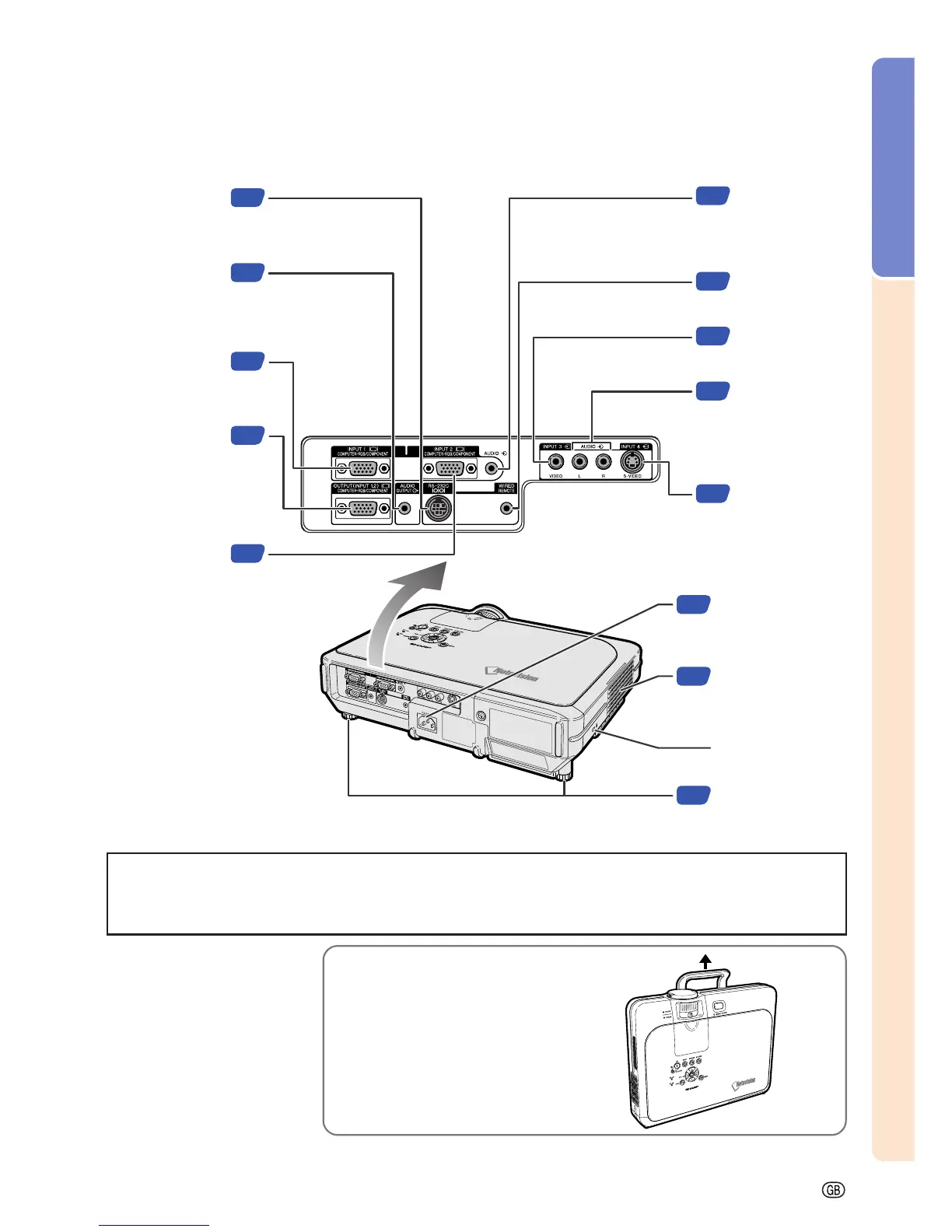

Projector (Rear View)
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
17
80
AC socket
Exhaust vent
25
17
17
Kensington Security
Standard connector
Adjustment Feet
INPUT 2 terminal
Terminal for
computer RGB and
component signals.
INPUT 1 terminal
Terminal for
computer RGB and
component signals.
23
OUTPUT (INPUT 1, 2)
terminal
Shared computer
RGB and component
signals output
terminal
for INPUT 1 and 2.
AUDIO OUTPUT
terminal
Shared audio
output terminal for
INPUT 1, 2, 3 and 4.
22
RS-232C terminal
For controlling
projector using a
computer.
21
17
AUDIO INPUT 1, 2
terminal
Shared audio input
terminal for INPUT 1
and 2.
19
INPUT 4 terminal
Terminal for
connecting video
equipment with an
S-video terminal.
19
AUDIO (L/R)
INPUT 3, 4
terminals
Shared audio input
terminals for INPUT 3
and 4.
19
INPUT 3 terminal
For connecting
video equipment.
23
WIRED REMOTE
control input
terminal
Carrying the projector
Before carrying the projector, fully
extend the carrying handle.
