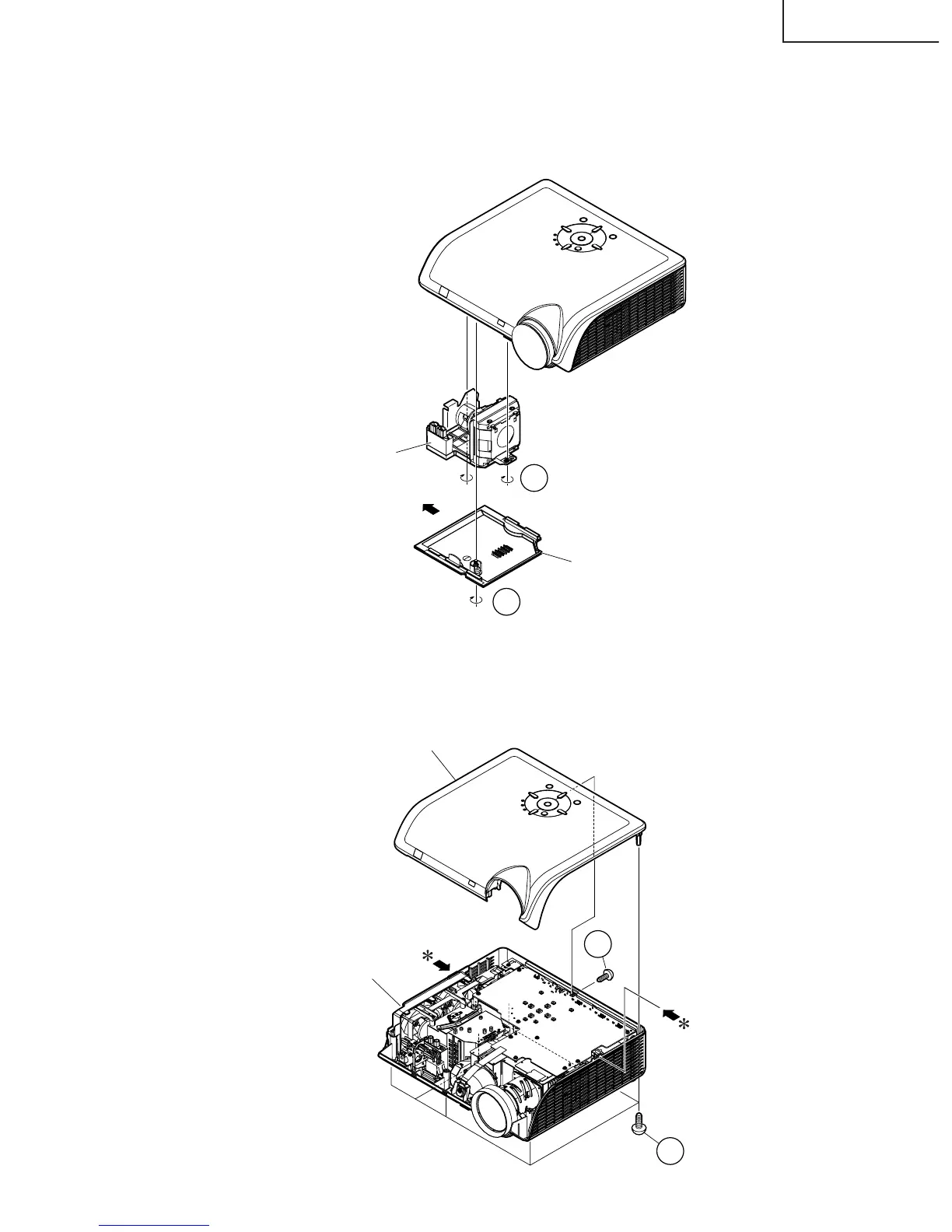

2. Removing the top body
2-1. Remove 6 fixing screws for the top and bottom bodies.
2-2. Remove the fixing screw for the top body (terminal side).
2-3. Press and hold the areas (marked with *) and disengage the claws on the top body to remove the top body.
REMOVING OF MAJOR PARTS
1. Removing the lamp door and the lamp unit
1-1. Loosen the lamp door fixing screw, slide the lamp door in allow direction and lift off the lamp door.
1-2. Loosen 2 lamp unit fixing screws and lift off the lamp unit.
1-2
1-3
Lamp Unit
Lamp Door
2-1
2-2
Top Body
Bottom Body
To Next Page
