Sharp XL-DV60 Service Manual

XL-DV60
3 – 3
These speaker CP-DV60F, CP-DV60SW are available in assembles
only and may not be disassembled.

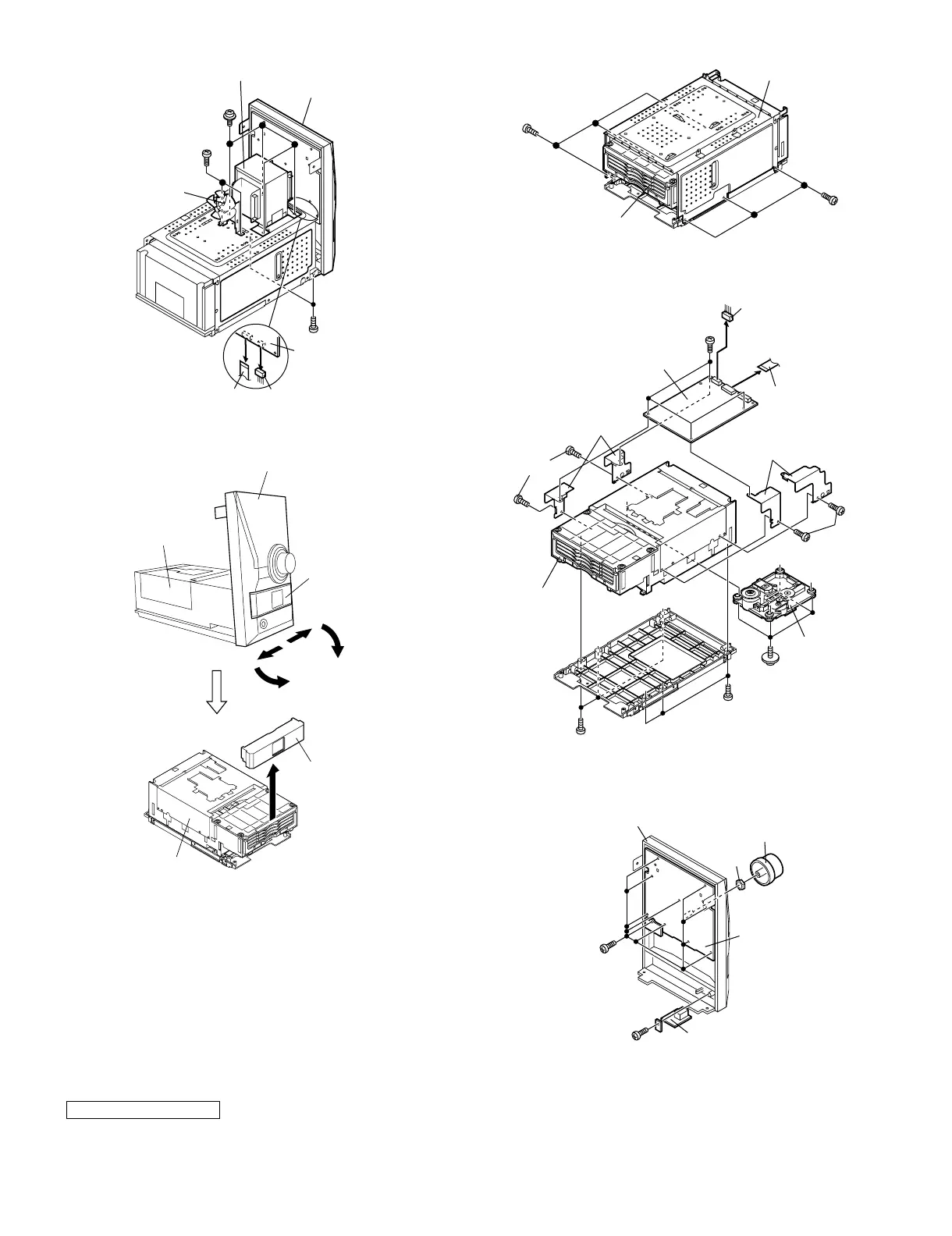

Figure 4
Figure 5
CP-DV60F, CP-DV60SW
(H1) x2
ø3x6mm
(G1) x4
ø4x10mm
Transformer
(J1) x2
ø3x12mm
Front Panel
(J2) x1 (J3) x1
Display PWB
Fan Motor
Front Panel
DVD Changer
Unit
DVD Tray Cover
(J4) x1
DVD Tray Cover
DVD Changer
Unit
Figure 6
Figure 7
Figure 8
(K1) x3
ø3x8mm
(K1) x3
ø3x8mm
DVD Changer
Unit
Chassis
(M1) x3
ø3x8mm
(M1) x3
ø3x8mm
(N1) x4
ø2.5x10mm
(L3) x4
ø3x6mm
(L4) x2
ø3x6mm
(L4) x2
ø3x6mm
Bracket
(L1) x1
(L2) x1
DVD Changer
Unit
DVD PWB
DVD Mechanism
Bracket
(P2) x10
ø2.5x8mm
(Q1) x1
ø2.5x8mm
(P1) x1
Nut
Front Panel
Display PWB
Jack PWB
