XL-DV60
3 – 2
[2] DISASSEMBLY
Note 1:
After removing the connector for the optical pickup from the connector,
wrap the conductive aluminium foil around the front end of the connec-
tor so as to protect the optical pickup from electrostatic damage.
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and
reassembling it, to keep it safe and ensure excellent performance:
1) Be sure to remove the power supply plug from the wall outlet
before starting to disassemble the unit.
2) Take off nylon bands or wire holders where they need to be
removed when disassembling the unit. After servicing the unit,
be sure to rearrange the leads where they were before disas-
sembling.
3) Take sufficient care on static electricity of integrated circuits and
other circuits when servicing.

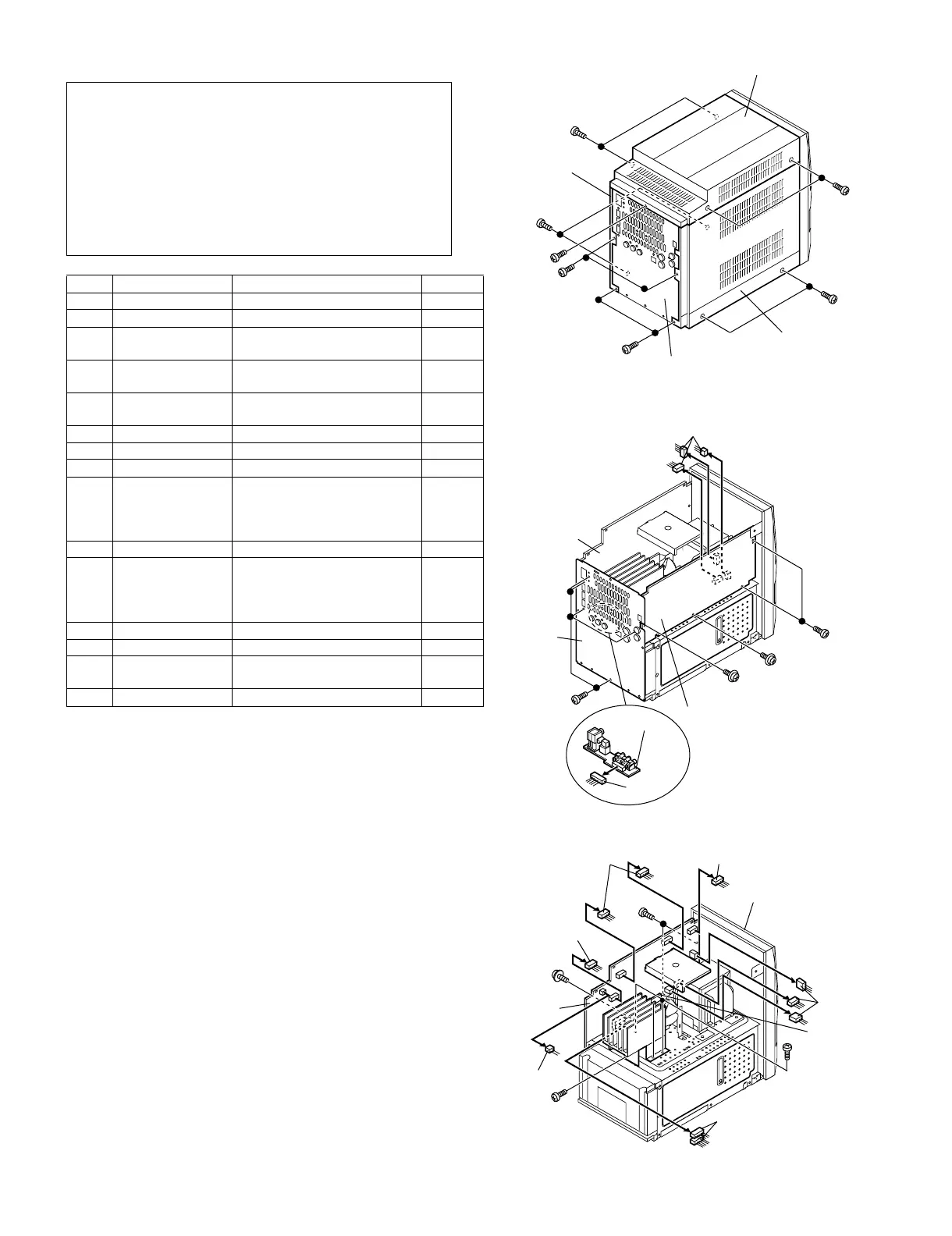

STEP REMOVAL PROCEDURE FIGURE
1 Top Cabinet 1. Screw.........................(A1) x 5 1
2 Side Panel 1. Screw.........................(B1) x 8 1
3 Rear Panel 1. Screw........................(C1) x 6
2. Socket.......................(C2) x 1
2
4 Tuner PWB 1. Screw........................(D1) x 3
2. Socket.......................(D2) x 3
2
5 Main PWB 1. Screw.........................(E1) x 3
2. Socket.....................(E2) x 10
3
6 Power Amp.PWB 1. Screw.........................(F1) x 4 3
7 Transformer 1. Screw........................(G1) x 4 4
8 Fan Motor 1. Screw........................(H1) x 2 4
9 Front Panel/DVD
Tray Cover
1. Screw.........................(J1) x 2
2. Flat cable...................(J2) x 1
3. Socket........................(J3) x 1
4. DVD Tray cover..........(J4) x 1
4
5
10 Chassis 2. Screw........................(K1) x 6 6
11 DVD PWB
(Note 1)
1. Flat cable...................(L1) x 1
2. Socket........................(L2) x 1
3. Screw.........................(L3) x 4
4. Screw.........................(L4) x 4
7
12 DVD Changer Unit 1. Screw........................(M1) x 6 7
13 DVD Mechanism 1. Screw........................(N1) x 4 7
14 Display PWB 1. Knob.........................(P1) x 1
2. Screw......................(P2) x 10
8
15 Jack PWB 1. Screw........................(Q1) x 1 8
Figure 1
Figure 2
Figure 3
(A1) x2
ø3x8mm
(A1) x2
ø3x8mm
(B1) x2
ø3x8mm
(B1) x2
ø3x12mm
(B1) x2
ø3x10mm
(B1) x2
ø3x8mm
(A1) x1
ø3x8mm
Top Cabinet
Side Panel
(Left)
Side Panel
(Right)
Rear
Panel
(D1) x2
ø3x6mm
(D1) x1
ø3x12mm
(D2) x3
(C1) x5
ø3x10mm
Rear
Panel
(C2) x1
Video Terminal
PWB
(C1) x1
ø3x12mm
Tuner PWB
Main PWB
(E1) x1
ø3x12mm
(F1) x1
ø3x6mm
(E1) x2
ø3x6mm
(E2) x2
(E2) x1
(E2) x1
Main PWB
Power Amp.
PWB
(E2) x1
(E2) x3
(E2) x2
Front Panel
(F1) x3
ø3x6mm
To Next Page
