2. CD MECHANISM SECTION
Perform steps 1 to 3 , 14 of the disassembly method to remove the CD
mechanism.(see page 3-3,3-4)

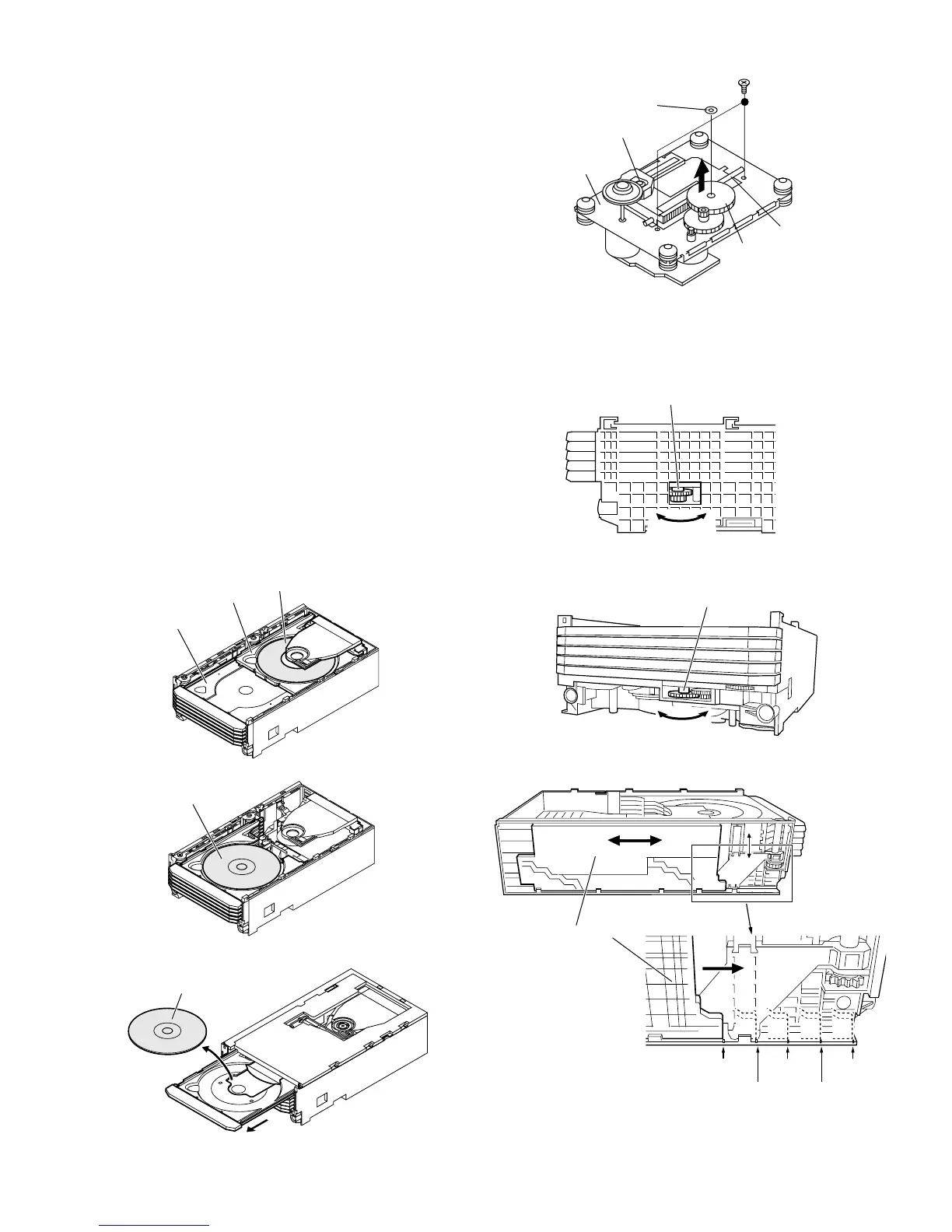

2.1. How to remove the Optical Pickup (See Fig. 1)
1. Remove the screws (A1) x 2 pcs and shaft (A2) x 1 pc.
2. Remove the stop washer (A3) x 1 pc and gear (A4) x 1 pc.
3. Remove the optical pickup.
NOTE: After pulling out the optical pickup connector, wrap the tip of it
with conductive aluminium foil or the like to protect the optical
pickup from the static electricity.
2.2. How to remove CD Disc (See Fig. 2~6)
1. When CD is at play position, rotate reduction gear C clock-wise as
shown in Figure 2 until disk tray is at ‘STOCK’ position, then rotate
the gear further to eject the disk tray (Figure 6) so that CD can be
removed from the tray.
2. In another case, if CD mechanism is at tray No. 1 play position and
to remove CD located in tray No. 3, the procedure is as follows:
If the gear up down board is located at tray No. 1 position, then
rotate Reduction gear C clock-wise until Disc tray is at ‘STOCK’
position. Rotate reduction gear D clock-wise (Figure 3) to move the
CD mechanism to tray No. 3 position. This is confirmed by check-
ing the gear up down board position base on the marking as indi-
cated on the main chassis as shown in Figure 4.
• Usually changer is covered with top plate. As for reference pur-
pose, we exclude the top plate for easy viewing. (Figure 5,6)
Figure 6
CD Disc
CD At 'PLAY' position.
Disc Tray
Guide Tray
CD Disc
CD At 'STOCK' position.
CD Disc
Tray eject
Remove CD from tray.
Figure 5
Figure 1
Figure 4
(A1) x2
ø2.6 x5mm
CD
Mechanism
Stop Washer
(A3) x1
Optical Pickup
Gear
(A4) x1
Shaft
(A2) x1
Reduction gear D
Figure 3
Up Down
Reduction gear C
Front
Figure 2
Rear
Mark 1
(DISC 1)
(DISC 2)
(DISC 3)
(DISC 4)
(DISC 5)
Gear up down board
Mark 3 Mark 5
Mark 2 Mark 4
