1.5. How to remove the flywheel (See Fig. 5)
1. Remove the belt.
2. Remove the stop washer (E1) x 1 pc., with a small precision screw-
driver to extract the flywheel from the capstan metal.
NOTE: When the stop washer is deformed or damaged, replace it with
a new one.
1.6. How to reinstall the parts
Install each part in the reverse order of the removal with care.
1.7. How to remove the tape mechanism PWB (See Fig. 6)
1. Remove the screw (F1) x 1 pc., to remove the tape mechanism
PWB.
2. Remove the screws (F2) x 1 pc.
3. Remove the solder joints (F3) x 2 pcs., to remove the tape mecha-
nism PWB.

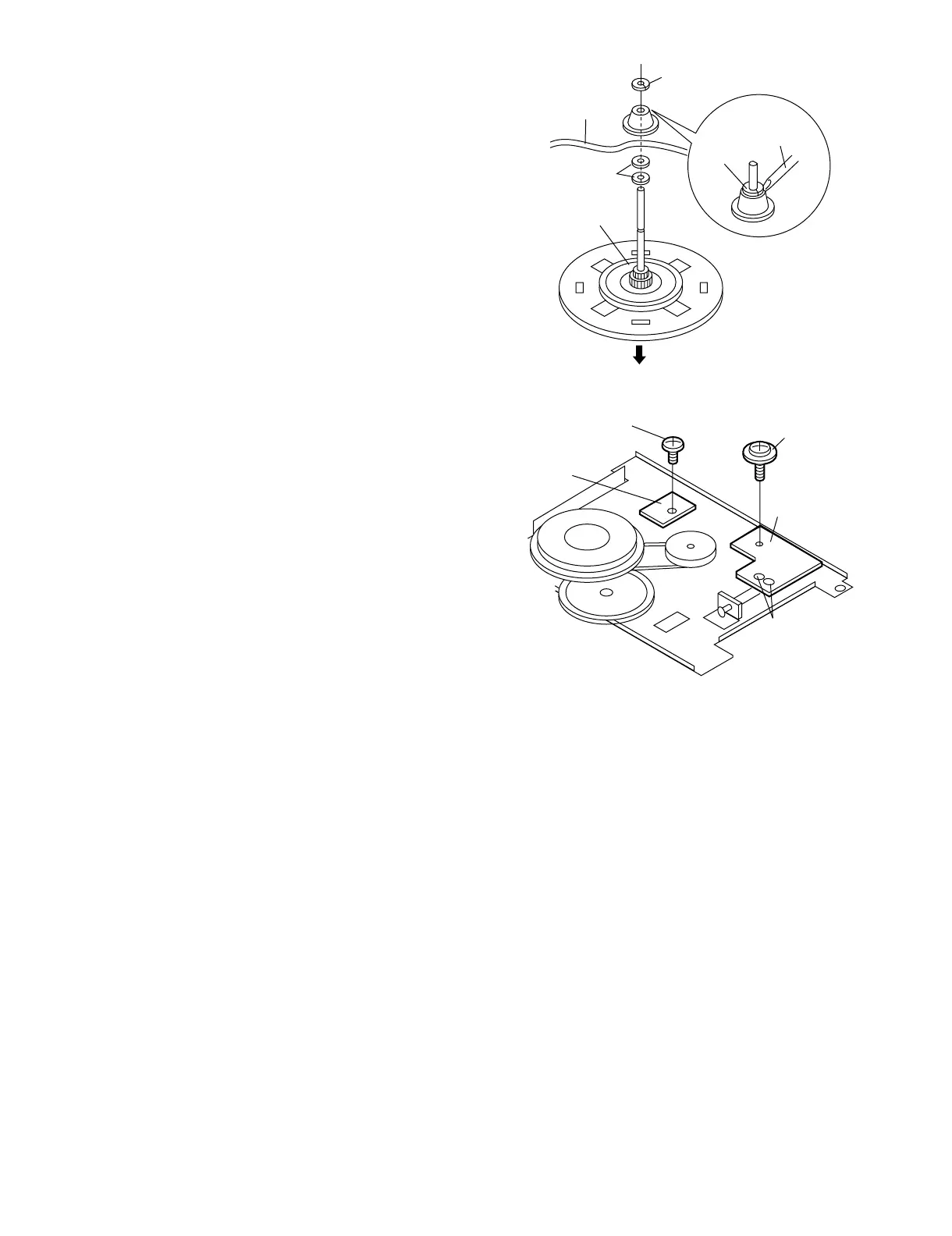

Figure 5
Figure 6
Stop
Washer
Driver
(E1)x1
Stop Washer
Mechanism
Chassis
Washerx2
Flywheel
Tape
Mechanism
PWB
Tape
Mechanism
PWB
(F3)x2
Solder
Joint
(F2)x1
ø2x8mm
(F1)x1
ø2x3mm
