XL-MP80H/MP80E
3 – 3
[2] DISASSEMBLY
Note 1: How to open the changer manually. (Fig. 3)
When CD tray doesn’t come out even if the power is turned on, push a
right lever with the screwdriver and others.
Note 2:
After removing the connector for the optical pickup from the connector,
wrap the conductive aluminium foil around the front end of the connec-
tor so as to protect the optical pickup from electrostatic damage.
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and
reassembling it, to keep it safe and ensure excellent performance:
1) Take cassette tape and compact disc out of the unit.
2) Be sure to remove the power supply plug from the wall outlet
before starting to disassemble the unit.
3) Take off nylon bands or wire holders where they need to be
removed when disassembling the unit. After servicing the unit,
be sure to rearrange the leads where they were before disas-
sembling.
4) Take sufficient care on static electricity of integrated circuits and
other circuits when servicing.
STEP REMOVAL PROCEDURE FIGURE
1 Top Cabinet 1. Screw...........................(A1) x 7 1
2 Side Panel 1. Screw...........................(B1) x 6 1
3 CD Player Unit 1. Turn on the power supply,
open the disc tray, take out the
CD tray cover, and close.
........................................(Note 1)
2. CD Tray Cover............(C1) x 1
3. Hook............................(C2) x 2
4. Flat Cable....................(C3) x 2
5. Socket.........................(C4) x 1
2
4 Rear Panel/Main
PWB
1. Screw..........................(D1) x 8
2. Screw..........................(D2) x 3
2,4
5 Main PWB 1. Screw...........................(E1) x 4
2. Flat Cable....................(E2) x 1
3. Socket.........................(E3) x 5
4
6 Power PWB 1. Screw...........................(F1) x 4 4
7 Front Panel 1. Screw..........................(G1) x 2 4
8 Display PWB 1. Knob............................(H1) x 1
2. Screw..........................(H2) x 8
5
9 Tape Mechanism 1. Screw...........................(J1) x 4 5
10 Headphones
PWB
1. Screw...........................(K1) x 1 6
11 CD Servo PWB
(Note 2)
1. Screw...........................(L1) x 4
2. Flat Cable.....................(L2) x 1
3. Socket..........................(L3) x 2
6
6,7
12 CD Player Unit 1. Screw..........................(M1) x 4 6
13 CD Mechanism 1. Screw..........................(N1) x 4 7

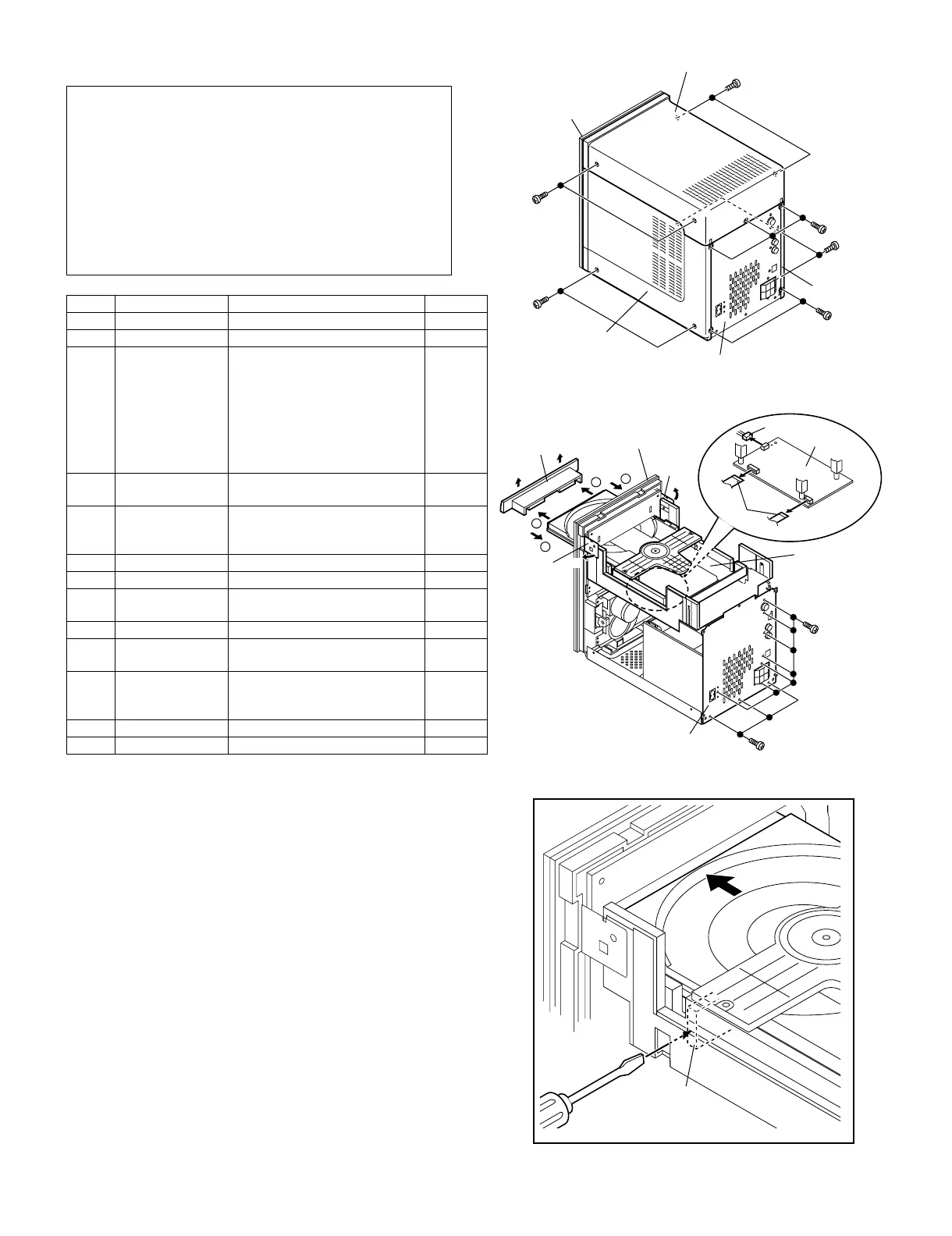

Figure 1
Figure 2
Figure 3
(A1) x2
ø3x10mm
(B1) x2
ø3x8mm
(B1) x2
ø3x8mm
(B1) x2
ø3x8mm
(A1) x2
ø3x10mm
(A1) x3
ø3x10mm
Top Cabinet
Front Panel
Side Panel
(Left)
Side Panel
(Right)
Rear Panel
(D1) x7
ø3x10mm
(D2) x3
ø3x8mm
Front Panel
Rear Panel
1
1
2
2
CD Tray Cover
(C1)x1
(C2)x1
(C3)x2
(C4)x1
(C2)x1
Pull
Pull
CD Player Unit
CD Servo
PWB
