CHAPTER 3. MECHANICAL DESCRIPTION
[1] REMOVING AND REINSTALLING THE
MAIN PARTS
1. TAPE MECHANISM SECTION
Perform steps 1 to 5 and 7 of the disassembly method to remove the
tape mechanism. (See page 3-3,3-4)
1.1. How to remove the record / playback and erase heads
(See Fig. 1)
1. Remove the screws (A1) x 2 pcs., to remove the erase head.
2. Remove the screws (A2) x 2 pcs., to remove the record/playback
head.
NOTE: After replacing the heads and performing the azimuth adjust-
ment, be sure to apply screw lock.
1.2. How to remove the pinch roller (See Fig.2)
1. Carefully bend the pinch roller pawl in the direction of the arrow
<A>, and remove the pinch roller (B1) x 1 pc., upwards.
1.3. How to remove the belts (See Fig.3)
1. Remove the main belt (C1) x 1 pc., from the motor pulley.
2. Remove the FF/REW belt (C2) x 1 pc., from the REW/FF roller.
3. Put on the belts in the reverse order of removal.
NOTE: When putting on the belt, ascertain that the belt is not twisted,
and clean it.
1.4. How to remove the motor (See Fig.4)
1. Remove the main belt.
2. Remove the screws (D1) x 2 pcs., to remove the motor bracket.
3. Remove the screws (D2) x 3 pcs., to remove the motor.
NOTE: When mounting the motor, pay attention to the motor mounting
angle.

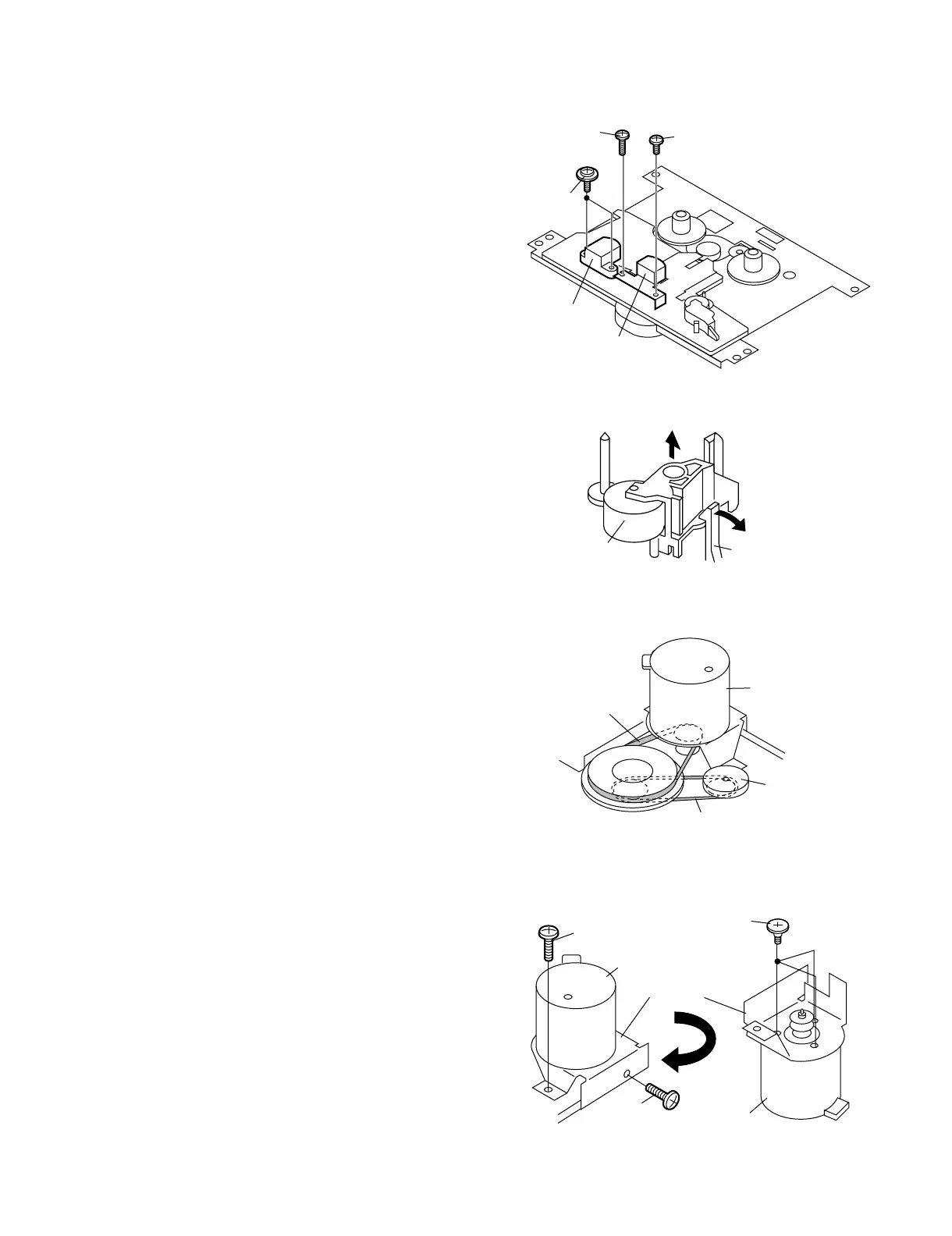

Figure 1
Figure 2
Figure 3
Figure 4
Erase Head
Record/
Playback Head
(A1)x2
ø2x8mm
(A2)x1
ø2x3mm
(A2)x1
ø2x7mm
<A>
Pinch Roller
(B1)x1
Pinch Roller
Pawl
Main Belt
(C1)x1
FF/REW Belt
(C2)x1
REW/FF
Clutch
Motor
(D1)x1
ø2x4mm
(D2)x3
Special
Screw
Motor
Bracket
Motor
Motor
(D1)x1
ø2x4mm
