Advanced Features
Enhancing your system
! Headphones
"
Before plugging in or unplugging the headphones, reduce the
volume.
"
Be sure your headphones have a 3.5 mm (1/8") diameter plug
and impedance between 16 and 50 ohms. The recommended
impedance is 32 ohms.
"
Plugging in the headphones disconnects the speakers automati-
cally. Adjust the volume using the volume control.
! Connecting source equipment
You can listen to sound of source equipment through the unit. Set
the function to "AUX" beforehand.
! Connecting recording equipment
You can record sound of the unit to recording equipment. Use an
audio cable for connection.
Notes:
"
Plug in each cable fully to prevent noise interference.
"
Refer to the manual for the connected equipment.
"
Do not connect the input and output sockets to the same external
equipment. Howling may result.
"
To prevent noise interference, place the unit away from the tele-
vision.

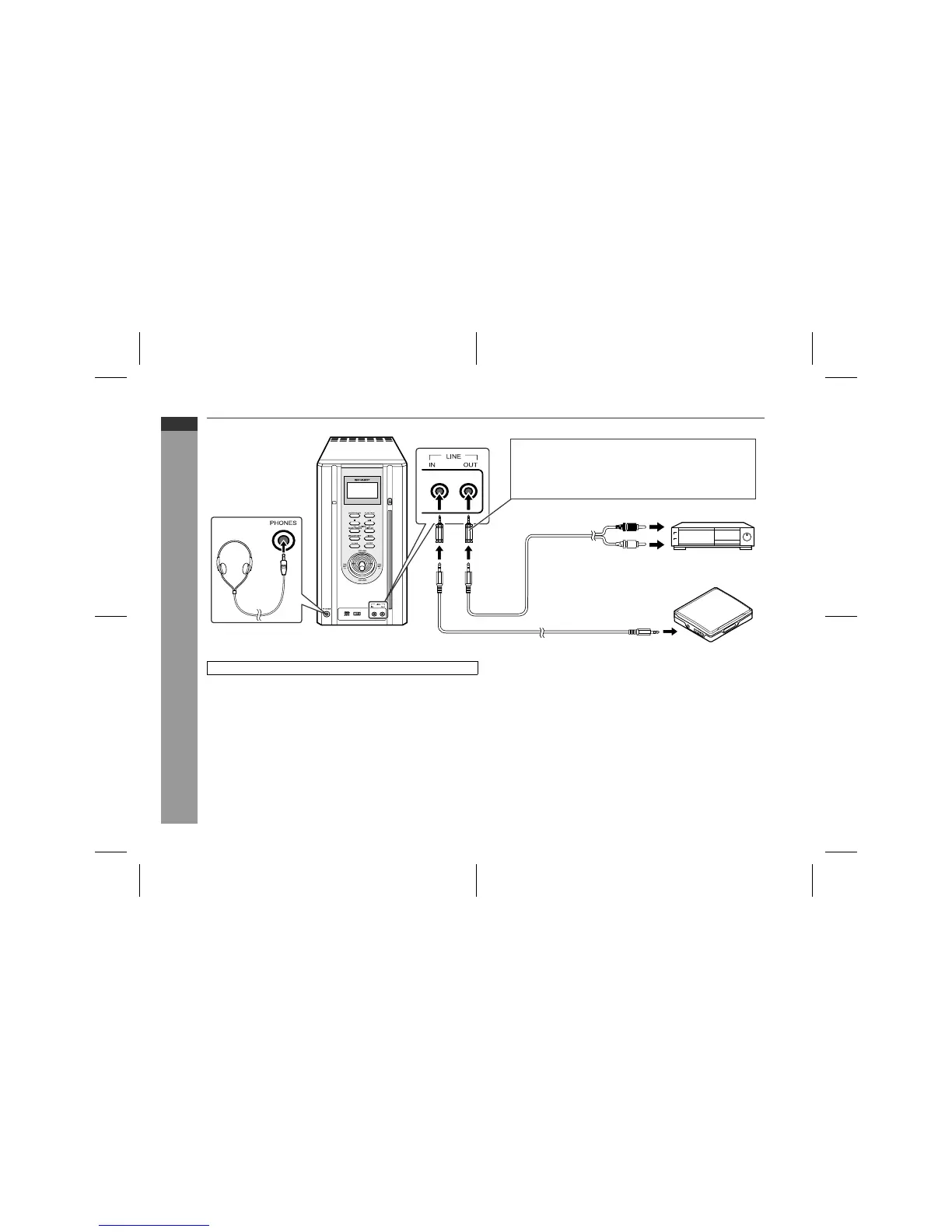

Source equipment
Recording equipment
To audio output socket
(Commercially available)
To audio input sockets
(Commercially available)
Note:
The LINE IN/OUT sockets accept 2.5 mm (3/32") mini plugs
only.
Use the supplied 3.5 mm (1/8") to 2.5 mm (3/32") plug
adaptor. (Only one plug adaptor is supplied with the unit.)
Turn off all other equipment before making this connection.
