XR-1X
PRINTED WIRING BOARD ASSEMBLIES
LEITERPLATTENEINHEITEN

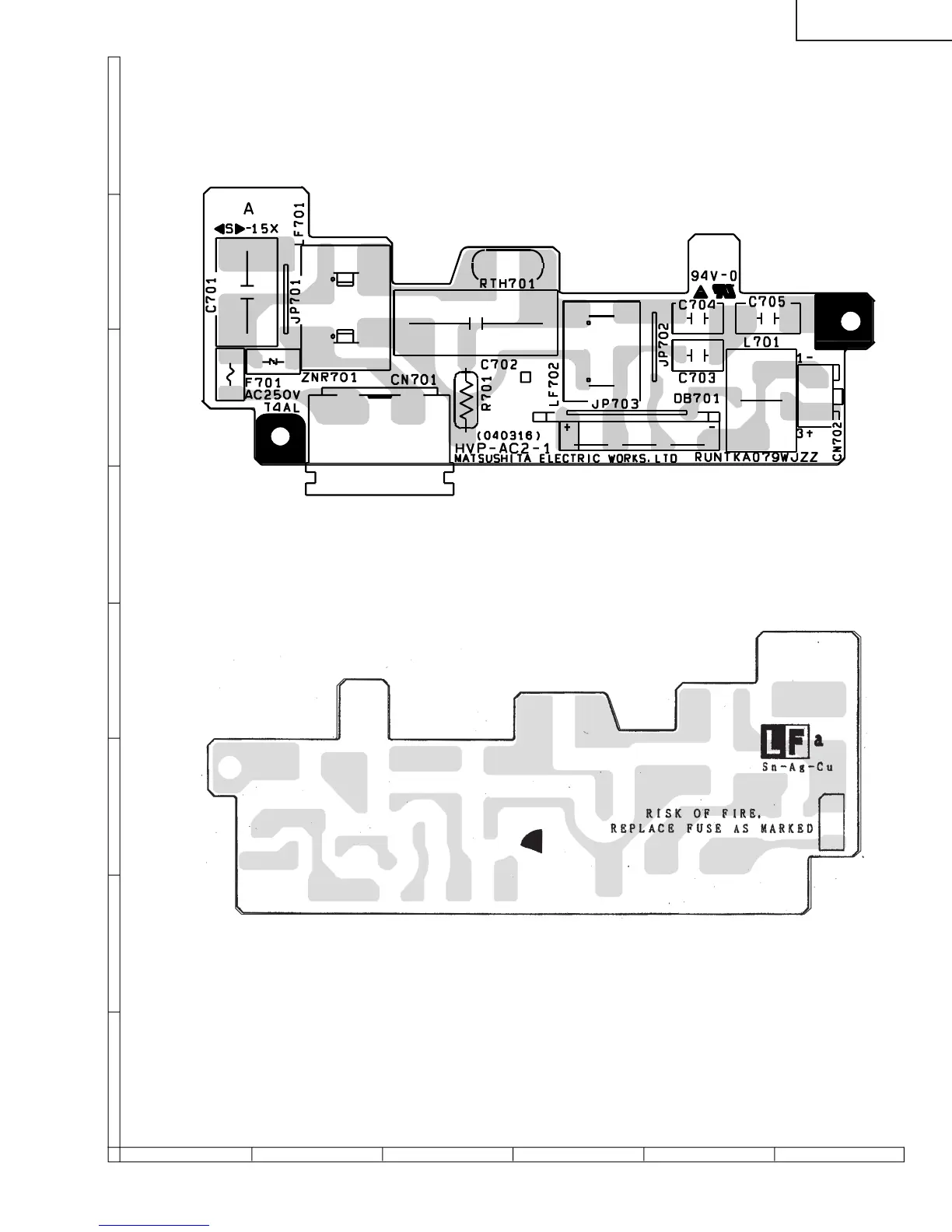

AC INLET Unit (Component Side)
AC-EINGANGS-EINHEIT (Bestückungsseite)
AC INLET Unit (Wiring Side)
AC-EINGANGS-EINHEIT (Leiterbahnseite)
