XR-1X
1716 1918151413121110
91

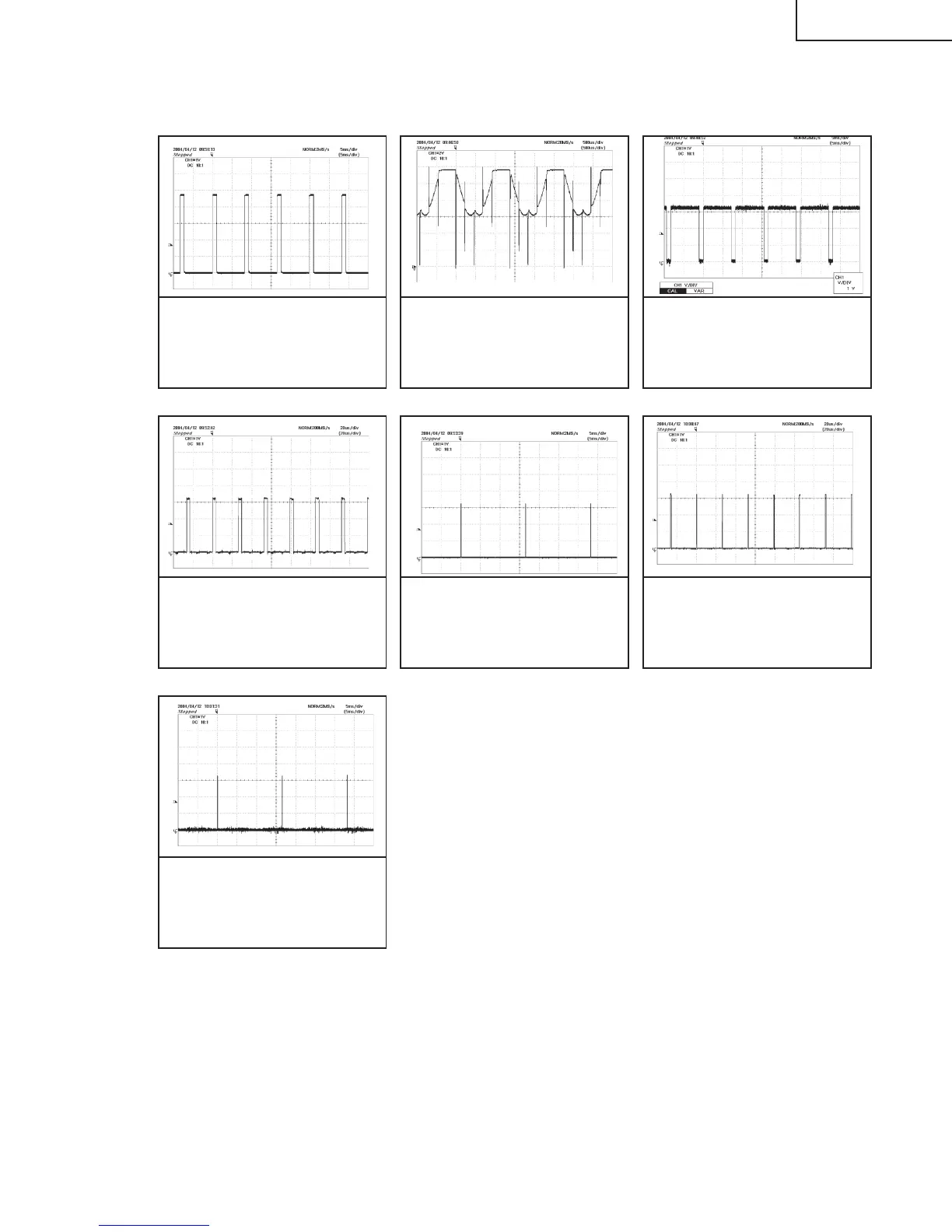

WAVEFORMS / WELLENFORMEN
1 TL1706
MAIN(8/8) L-POW/SYNC
H:5msec/div
V:1V/div
2 TL3521
MAIN(5/8) CWY1
H:500µsec/div
V:2V/div
3 TL1722
MAIN(8/8) CWINDEX
H:5msec/div
V:1V/div
4 IC3005(30)
MAIN(1/8) HS_TE8200
H:20µsec/div
V:1V/div
5 IC3005(31)
MAIN(1/8) VS_TE8200
H:5msec/div
V:1V/div
6 IC3005(66)
MAIN(1/8) GHS
H:20µsec/div
V:1V/div
7 GVS(IC3005-64)
H:5msec/div
V:1V/div
