REMOVAL OF MAJOR COMPONENTS

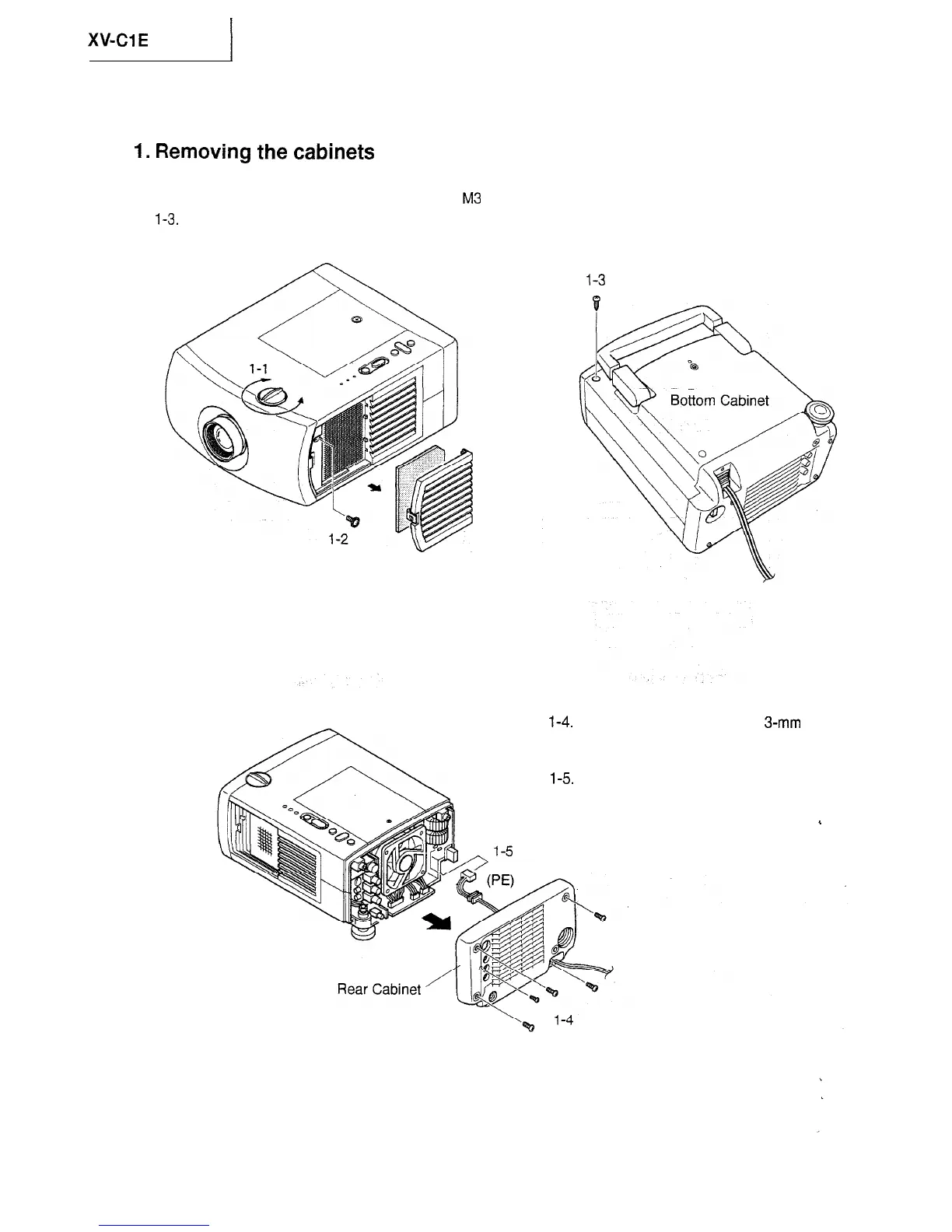

1. Removing the cabinets
l-l. Turn the lens shift dial until the lens comes to almost the center of the lens hole in the front cabinet,
l-2. Remove the air filter cover first and then the M3 screw.
1-3. Remove the tapping screw off the bottom cabinet.
Air Filter Cover
1-3
1-4. Remove the five screws (four 3-mm tapping
screws and one M2.5 screw) off the rear
cabinet.
l-5. Disconnect the connector (PE) of the AC cord
(that runs through the rear cabinet) from the
ballast unit. Detach the rear cabinet. /
