ShelterLogic Shed-in-a-Box 70423 User Manual

05_70423_G3Page 5
01010
801293
03032
E

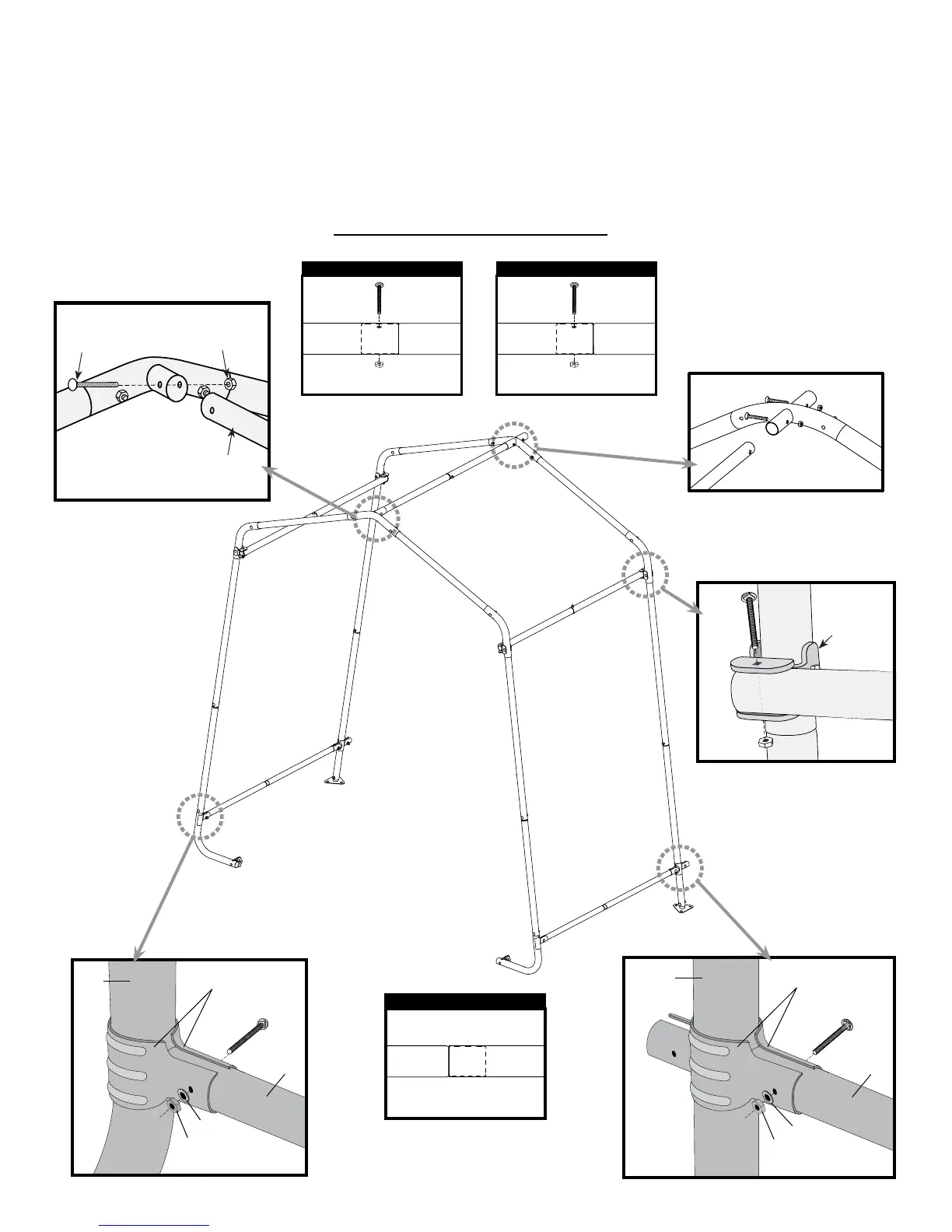

3. CONNECT FRONT END RIB TO MIDDLE RIB
10115
Cover
Rail
13202
01011
01010
10115
13201
Middle
Rib
01010
01011
Cover
Rail
A. Assemble 2 Side Cross Rails using parts as shown.
B. Assemble 1 Top Cross Rail using parts as shown.
C. Assemble 2 Cover Rails using parts as shown
D. Connect the 2 Side Cross Rails at the Shelterlock
®
3X (800938).
E. Connect the Top Cross Rail at the 3- and 4-Way Connectors as shown.
F. Place a Cover Rail at each leg and secure it with a Cover Clamp as shown. Slide the Cover Rails so they
are 8 inches up from the ground. Only HAND-TIGHTEN these bolts!
Assemble Cover Rails
A B
A
B
A
Assemble Side Cross Rails Assemble Top Cross Rail
800703
13345
800703
800704
801293
800704
13344
800704
800704 800704801293800703
10115 10115
01010 01010
13345 13344
No Bolt at this connection
C
C
C
D
F F
800938
03032
01010
Cross Rail
801277
03032
01010
800704
13345
13344
End
Rib
E

ShelterLogic Shed-in-a-Box 70423 Specifications

General

Brand	ShelterLogic
Model	Shed-in-a-Box 70423
Category	Tent
Language	English
