05_70423_G3Page 9
PULLPULL
WEBBING
STRAP

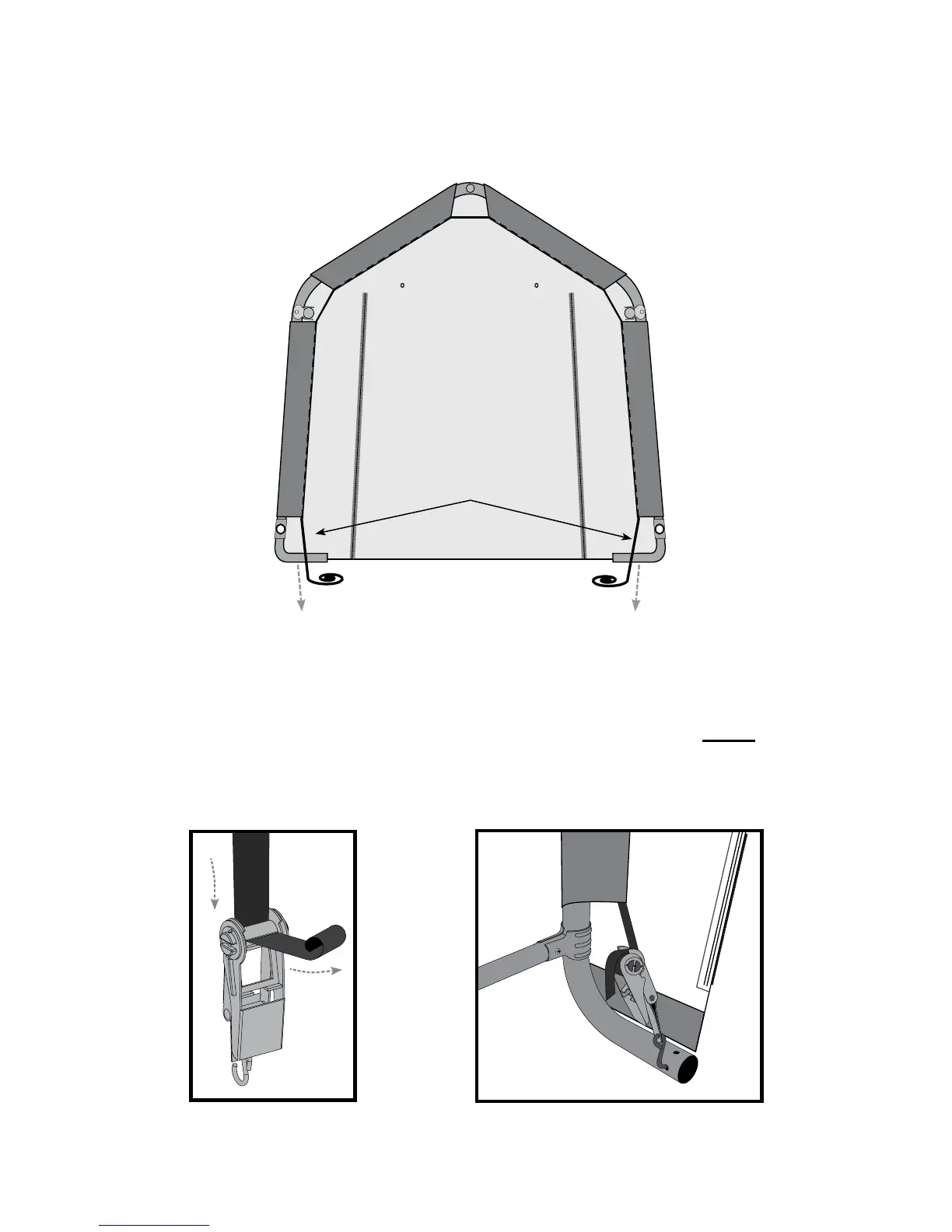

END PANEL VIEW
FROM INSIDE
D. At the bottom, where the webbing exits the pocket on each side of end panel, pull webbing as you would a
drawstring to remove the slack. Be careful not to pull the webbing strap out of the webbing pocket.
E. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself. Position the end panel so that it is
centered on the building before fully tightening the end panel.
F. Tighten ratchets, alternating from one side to the other, until the end panel is tight. NOTE: Keep zippers
closed when tightening door panel.
D
E F
7. END PANEL INSTALLATION - continued
To Next Page
