Section 4 Functions of operating components
23
1. Seat, switches and meters

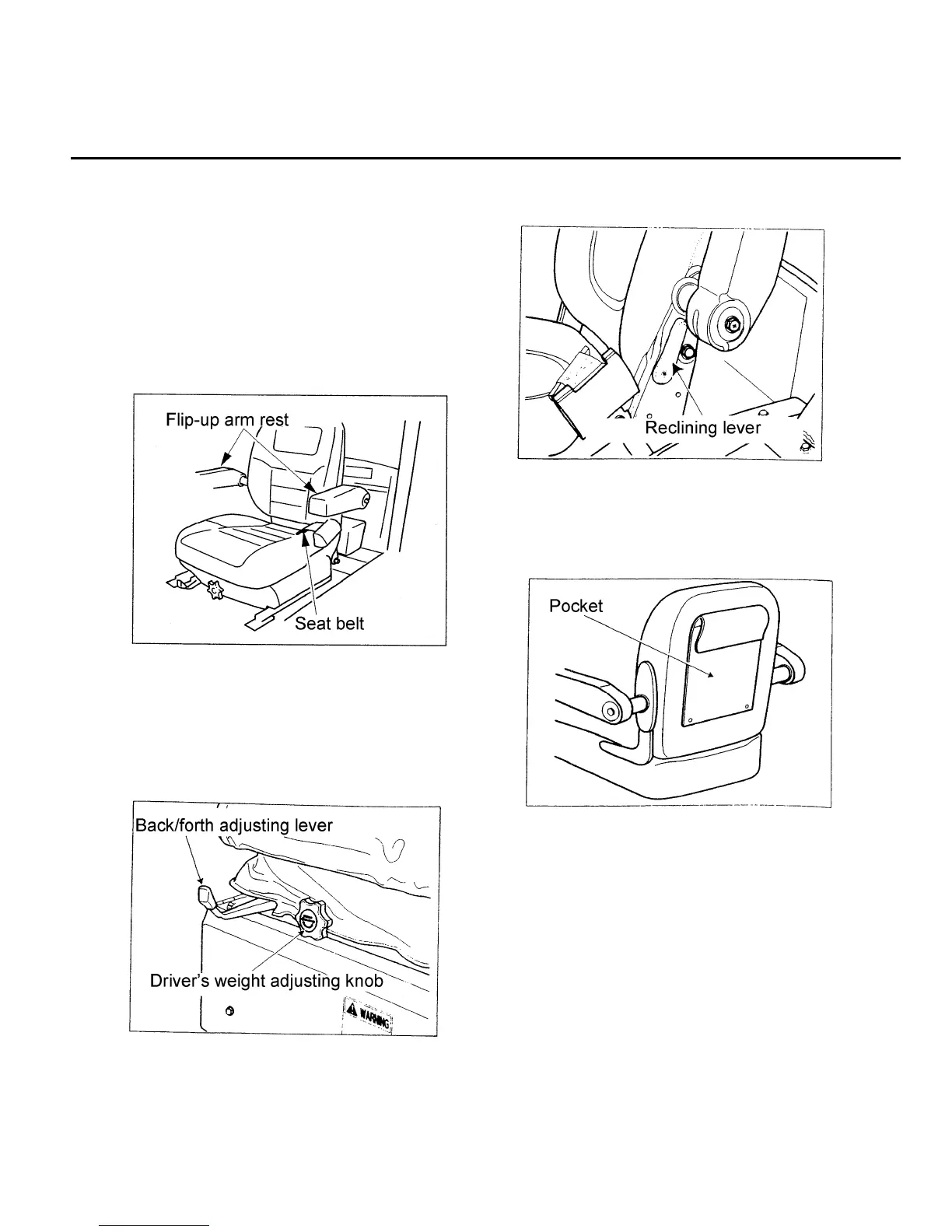

① Seat
The seat is provided with a flip-up arm
rest. The seat position can be adjusted
back and forth depending on the weight
of the driver and reclined.
● Back/forth adjustment
Flip-up arm rest is provided. The seat
can be moved back and forth. Stop the
seat at a desired position.
● Adjustment for weight
Adjust the seat position with the grip
under the seat on the front side. When
the weight of the driver is heavy, turn
the grip clockwise and if the weight is
light, turn it counterclockwise.
● Reclining mechanism
By inclining the reclining lever
frontward, angle of the seat back can
be changed.
● Pocket
A pocket is provided at the back of the
seat. Use it to store the instruction
manual.
● Seat belt
Adjust the seat to a proper position and
fix the seat belt by clicking the fixture.
To remove the seat belt, push the
PRESS button on the buckle.
If the belt cannot be smoothly pulled
out, return the belt once and pull it
again.
