Section 4 Functions of operating components
27

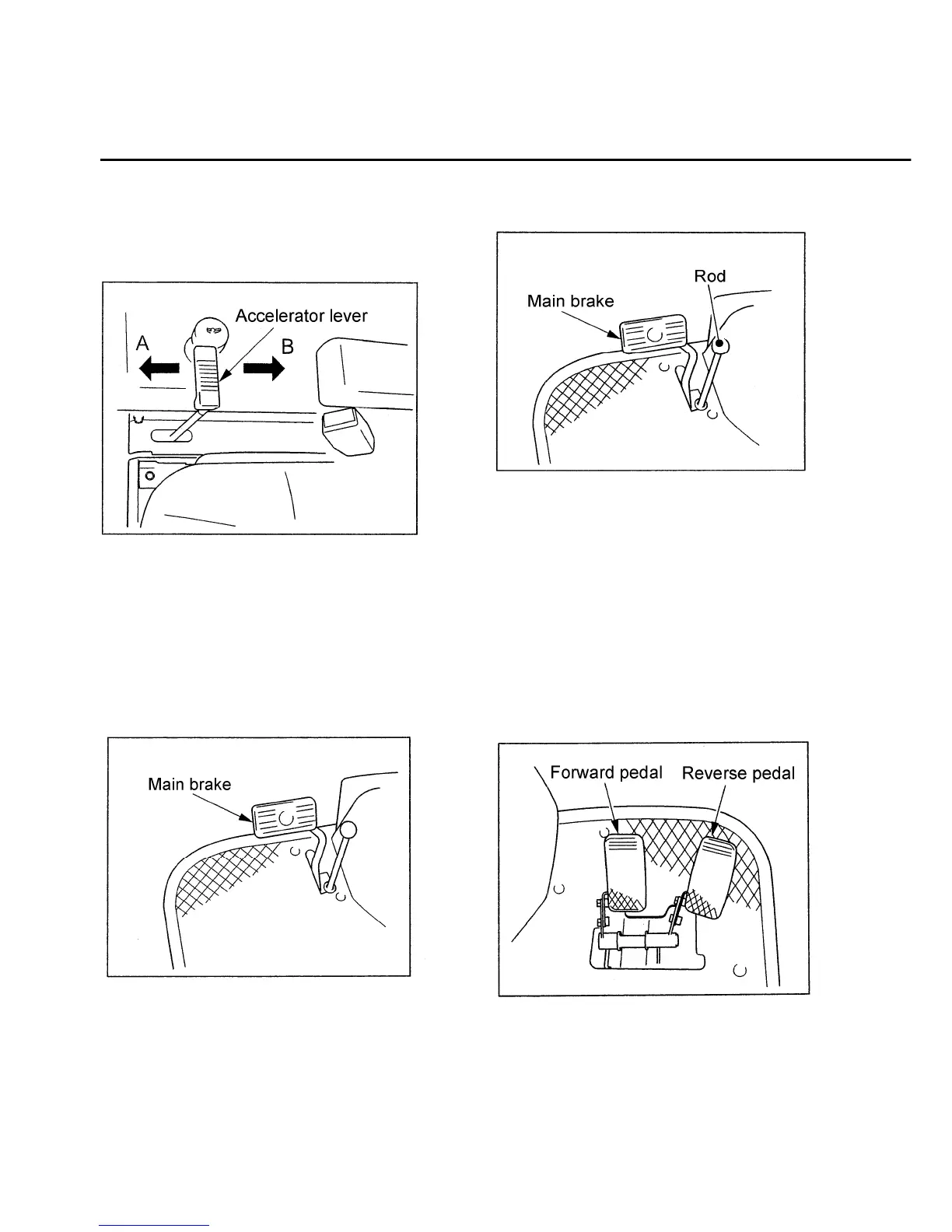

2. Pedals and levers
① Accelerator lever (operated by
the right hand)
A: Engine speed increases.
B: Engine speed decreases.
Used to increase or decrease the engine
speed.
② Brake
● Main brake (operated by the left foot)
Used to stop the machine. By stepping
the pedal, the brake is applied. Safe
start device is provided. Be sure to step
the safe start device when starting the
engine.
● Parking brake (operated by the left
hand)
By stepping the main brake and pulling
up the rod, the parking brake is applied.
To release the brake, step the main
brake strongly.
When the parking brake is applied and
the key switch is at the [ON] position, the
parking brake lamp lights up.
When you leave the machine, apply the
parking brake.
③ Forward and reverse pedals
(operated by the right foot)
Step the forward pedal to forward the
machine and the reverse pedal to
reverse it.
There is no clutch pedal on this machine.
By stepping the pedal strongly or weakly,
the speed can be increased or decreased.
