2.3 Installation direction and clearances
The drive must be installed in the specified direction. Otherwise, it may
cause a malfunction.
Leave specified clearances between the drive and the cabinet walls or
other devices. Otherwise, it may cause a malfunction.

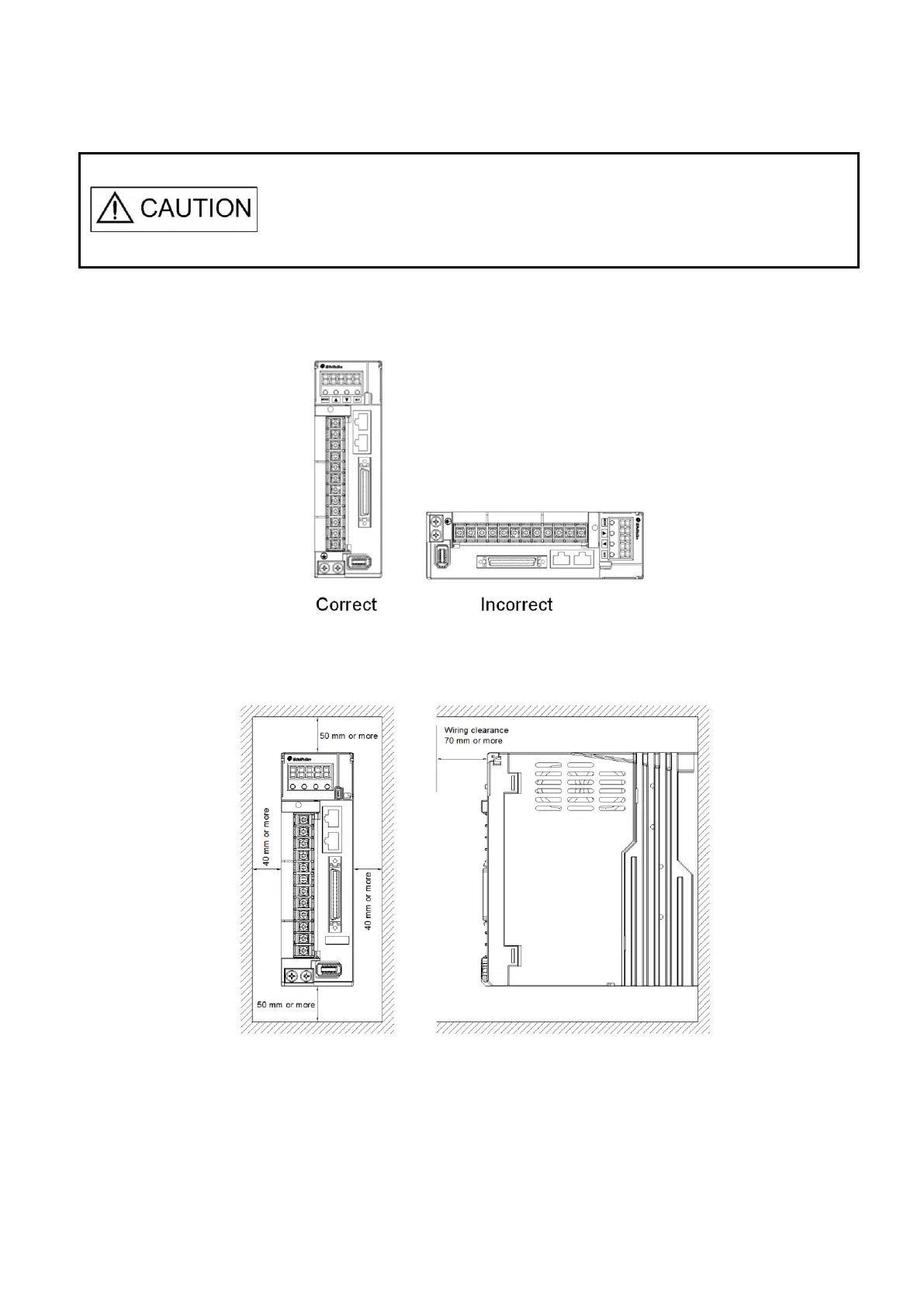

(1) Installation direction
(2) Installation clearances of one drive
(3) Installation clearances of two or more drives
Leave a large clearance between the top of the servo drive and the cabinet walls. When mounting
the servo amplifiers closely, a cooling fan to is helpful to prevent the internal temperature of the cabinet
from exceeding the endurance of servo drive. In this case, keep the surrounding air temperature within
